- Finish Ground surface
- Resists abrasion
- Excellent wear characteristics
- Aluminum Bronze with graphite plugs
- Custom sizes available upon request
- Aluminum bronze with graphite plugs

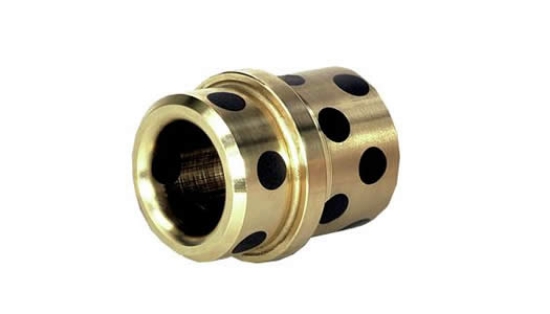

Metric DIN Self-Lubricating Guided Ejector Bushings
PCS Metric Self Lubricating Guided Ejector Bushings are available in the following diameters: 20 mm, 25 mm, 30 mm. The self-lubricating graphite plugs eliminate the need for grease.
| Item Number | A Ejector Plate Length | D I.D. | F Rib O.D. | H Press Fit O.D. | I.D. Tolerance | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| MME-20 | 25 | 20 | 28 | 26 | +.013 / +.026 | 37 | $47.98 | ||
| MME-25 | 29 | 25 | 35 | 32 | +.013 / +.026 | 45 | $50.67 | ||
| MME-30 | 29 | 30 | 41 | 38 | +.013 / +.026 | 45 | $54.73 |
