- Metric threads: M8 → M24
- SS.QL.DSR is perfectly corrosion resistant and can be used in humid, chemical and marine environments.
- For loads ranging from 1,300 lbs to 5,000 lbs
- The ring swivels 180°, but has a rotating range of 360
- Safety Factor of 5
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Verification of each thread with calibrated gauge

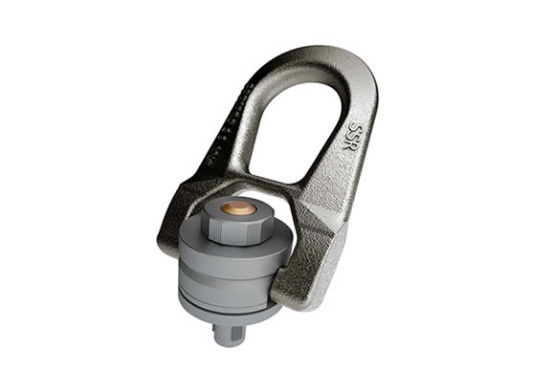

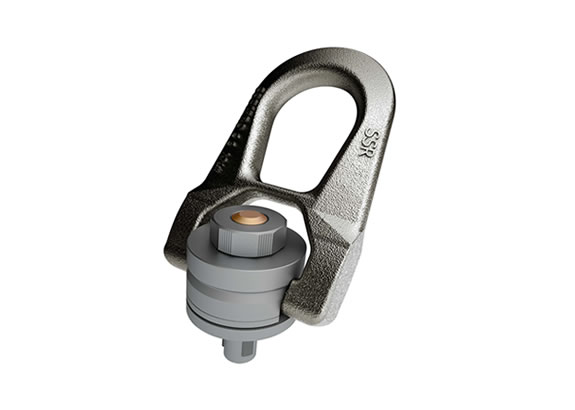

Codipro Quick Lift Stainless Steel QLDSR Double Swivel Ring - Metric
PCS Company offers the Codipro Stainless Steel Metric QLR (Quick Lift Ring) . The SS.QL.DSR is a double swivel ring that allows particularly fast anchoring. At the push of a button, it can be fixed in the threaded hole in a matter of seconds. Its double swivel ensures a perfect alignment with the sling. The QL.DSR saves up to 80 % of time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance. See instructions under Resources for further info. Register your Codipro Eyebolt at Coditracer.
| Item Number | SF 5:1 WLL (t) | Thread Size mm | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SS.QL.DSRM10 | 0.4 | M10x1.5 | 19.5 | 30 | $584.62 | ||
| SS.QL.DSRM12 | 0.65 | M12x1.75 | 23 | 60 | $673.85 | ||
| SS.QL.DSRM14 | 0.7 | M14x2 | 23 | 80 | $675.38 | ||
| SS.QL.DSRM16 | 1.05 | M16x2 | 27 | 100 | $676.92 | ||
| SS.QL.DSRM20 | 1.7 | M20x2.5 | 30 | 160 | $907.69 | ||
| SS.QL.DSRM8 | 0.25 | M8x1.25 | 17.5 | 20 | $580.00 |
