- Unit of Measure - Inch
- Thickness is relieved on male insert past the parting line
- Armorclad coating provides increased lubricity
- Female inserts are notched for easy removal
- Exposed edges chamfered
- Grease grooves present on male insert
- Item number identifcaion

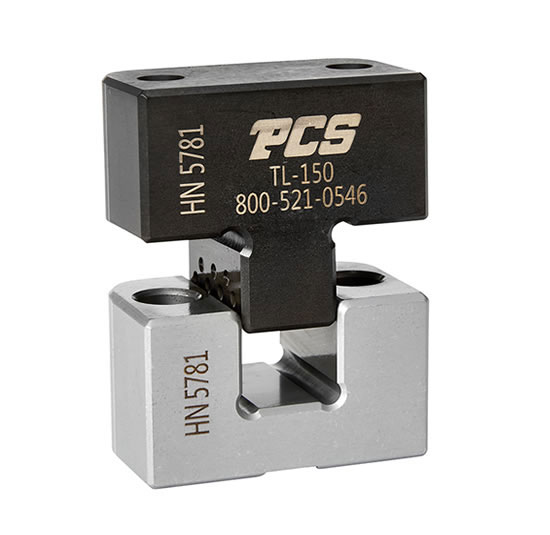

Top Locks
PCS Top Locks provide positive alignment between mold halves. These locks are hardened and precision ground to assure complete interchangeability. The lubricious properties of Armor Coating treatment combined with the qualities of graphitic tool steel provide a dependable, smooth acting, long lasting locking system.
| Item Number | W Lock Width | T Size Across | C Locking Feature Width | D Female Lock Height | E Male Base Height | F Locking Feature Length | R Corner Radius | SHCS Male | SHCS Female | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-100 | 1.0000 | 0.500 | 0.3750 | 0.500 | 0.375 | 0.275 | 0.187 | 6-32 x 1/2 | 6-32 x 1/2 | $156.76 | ||
| TL-125 | 1.2500 | 0.625 | 0.4380 | 0.625 | 0.500 | 0.375 | 0.250 | 6-32 x 5/8 | 6-32 x 5/8 | $174.83 | ||
| TL-150 | 1.5000 | 0.875 | 0.5000 | 0.875 | 0.750 | 0.500 | 0.250 | 8-32 x 7/8 | 8-32 x 7/8 | $194.82 | ||
| TL-200 | 2.0000 | 1.000 | 0.7500 | 1.125 | 0.750 | 0.625 | 0.375 | 10-32 x 7/8 | 10-32 x 7/8 | $249.80 | ||
| TL-300 | 3.0000 | 1.125 | 1.1250 | 1.500 | 0.750 | 0.750 | 0.500 | 1/4-20 x 7/8 | 1/4-20 x 7/8 | $312.65 |
