- Compatible with all industry standard ”G” Series® style temperature control modules
- Standard configurations from 2 to 48 zones
- Standard 240vac, 3 phase input voltage
- Custom cable connections available
- Proudly made in the U.S.A.
- Includes mating plugs for cables and power

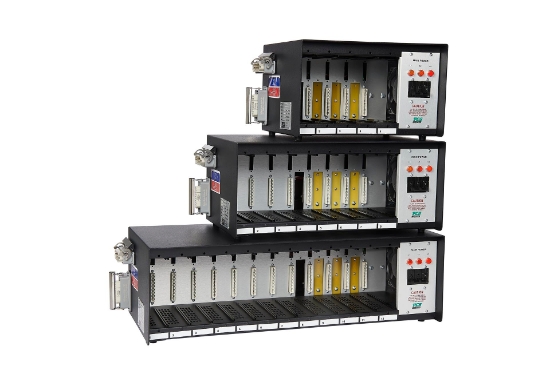

Modular Temperature Control Mainframes
PCS Company's Modular Temperature Control Mainframes are compatible with all industry standard G Series temperature control modules such as DME, ITC, PPE and IMS. The mainframes come in configurations from 2 to 48 zones as a standard. Optional items such as floor stands and step-down transformers are available at PCS Company. Proudly made in the U.S.A.
| Item Number | No of Zones | Breaker Amperage | Maximum Amps per Zone | Height (in) | Width (in) | Depth (in) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| VC-12F-1 | 12 | 50 | 15 | 9 | 28.1875 | 11.5 | $927.00 | ||
| VC-2F-1 | 2 | N/A | 10 | 10.75 | 7 | 10 | $367.86 | ||
| VC-36F-1 | 36 | 70 | 15 | 27 | 28.1875 | 11.5 | $2,641.21 | ||
| VC-48F-1 | 48 | 70 | 15 | 36 | 28.1875 | 11.5 | $3,568.21 | ||
| VC-5F-1 | 5 | 50 | 15 | 9 | 14.1875 | 11.5 | $618.00 | ||
| VC-8F-1 | 8 | 50 | 15 | 9 | 20.1875 | 11.5 | $735.70 |
