- PCS mini hot sprue bushing assemblies
- 240v heaters with J type thermocouples
- For part weights from 1 to 70g
- Used for commodity and engineered resins
- Standard and high performance assemblies available
Standard Mini Hot Sprue Bushing Assemblies

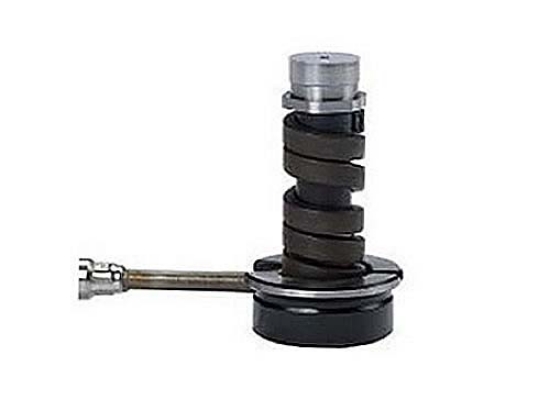

PCS Mini Hot Sprue Bushing Assemblies are perfect for small parts and prototype applications. Designed to fit standard tooling inserts including PCS F.I.T.S.™ and others, Mini Hot Sprue Bushings reduce waste and minimize cycle time. These Hot Sprue Bushings can produce parts made of commodity and engineering grade resins, with weights up to 70 grams.
| Item Number | Head Heater Included | L Dimension | R Radius | Tip Style | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FSB17-1-3BN-4-S | No | 1.438 | 1/2 | 3/8 Bush Nut | $660.00 | ||
| FSB17-1-3BN-4-W | No | 1.438 | 1/2 | 3/8 Bush Nut | $720.00 | ||
| FSB17-1-3BN-4XS-S | No | 1.438 | 1/2 | 3/8 Bush Nut | $690.00 | ||
| FSB17-1-3BN-4XS-W | No | 1.438 | 1/2 | 3/8 Bush Nut | $750.00 | ||
| FSB17-1-3BN-6-S | No | 1.438 | 1/2 | 3/8 Bush Nut | $670.00 | ||
| FSB17-1-3BN-6-W | No | 1.438 | 1/2 | 3/8 Bush Nut | $730.00 | ||
| FSB17-1-3BN-6XS-S | No | 1.438 | 1/2 | 3/8 Bush Nut | $710.00 | ||
| FSB17-1-3BN-6XS-W | No | 1.438 | 1/2 | 3/8 Bush Nut | $770.00 | ||
| FSB17-1-3SN-4 | No | 1.438 | 1/2 | 3/8 Sprue Nut | $600.00 | ||
| FSB17-1-3SN-4XS | No | 1.438 | 1/2 | 3/8 Sprue Nut | $600.00 | ||
| FSB17-1-3SN-6 | No | 1.438 | 1/2 | 3/8 Sprue Nut | $565.00 | ||
| FSB17-1-3SN-6XS | No | 1.438 | 1/2 | 3/8 Sprue Nut | $600.00 | ||
| FSB17-1-ON-S | No | 1.438 | 1/2 | Open Nut | $645.00 | ||
| FSB17-1-ON-W | No | 1.438 | 1/2 | Open Nut | $705.00 | ||
| FSB17-2-3BN-4-S | No | 1.438 | 3/4 | 3/8 Bush Nut | $660.00 | ||
| FSB17-2-3BN-4-W | No | 1.438 | 3/4 | 3/8 Bush Nut | $720.00 | ||
| FSB17-2-3BN-4XS-S | No | 1.438 | 3/4 | 3/8 Bush Nut | $690.00 | ||
| FSB17-2-3BN-4XS-W | No | 1.438 | 3/4 | 3/8 Bush Nut | $750.00 | ||
| FSB17-2-3BN-6-S | No | 1.438 | 3/4 | 3/8 Bush Nut | $670.00 | ||
| FSB17-2-3BN-6-W | No | 1.438 | 3/4 | 3/8 Bush Nut | $730.00 | ||
| FSB17-2-3BN-6XS-S | No | 1.438 | 3/4 | 3/8 Bush Nut | $710.00 | ||
| FSB17-2-3BN-6XS-W | No | 1.438 | 3/4 | 3/8 Bush Nut | $770.00 | ||
| FSB17-2-3SN-4 | No | 1.438 | 3/4 | 3/8 Sprue Nut | $565.00 | ||
| FSB17-2-3SN-4XS | No | 1.438 | 3/4 | 3/8 Sprue Nut | $600.00 | ||
| FSB17-2-3SN-6 | No | 1.438 | 3/4 | 3/8 Sprue Nut | $565.00 | ||
| FSB17-2-3SN-6XS | No | 1.438 | 3/4 | 3/8 Sprue Nut | $600.00 | ||
| FSB17-2-ON-S | No | 1.438 | 3/4 | Open Nut | $645.00 | ||
| FSB17-2-ON-W | No | 1.438 | 3/4 | Open Nut | $705.00 | ||
| FSB23-1-3BN-4-S | No | 1.938 | 1/2 | 3/8 Bush Nut | $715.00 | ||
| FSB23-1-3BN-4-W | No | 1.938 | 1/2 | 3/8 Bush Nut | $775.00 | ||
| FSB23-1-3BN-4XS-S | No | 1.938 | 1/2 | 3/8 Bush Nut | $745.00 | ||
| FSB23-1-3BN-4XS-W | No | 1.938 | 1/2 | 3/8 Bush Nut | $805.00 | ||
| FSB23-1-3BN-6-S | No | 1.938 | 1/2 | 3/8 Bush Nut | $730.00 | ||
| FSB23-1-3BN-6-W | No | 1.938 | 1/2 | 3/8 Bush Nut | $785.00 | ||
| FSB23-1-3BN-6XS-S | No | 1.938 | 1/2 | 3/8 Bush Nut | $765.00 | ||
| FSB23-1-3BN-6XS-W | No | 1.938 | 1/2 | 3/8 Bush Nut | $825.00 | ||
| FSB23-1-3SN-4 | No | 1.938 | 1/2 | 3/8 Sprue Nut | $620.00 | ||
| FSB23-1-3SN-4XS | No | 1.938 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB23-1-3SN-6 | No | 1.938 | 1/2 | 3/8 Sprue Nut | $620.00 | ||
| FSB23-1-3SN-6XS | No | 1.938 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB23-1-ON-S | No | 1.938 | 1/2 | Open Nut | $705.00 | ||
| FSB23-1-ON-W | No | 1.938 | 1/2 | Open Nut | $765.00 | ||
| FSB23-2-3BN-4-S | No | 1.938 | 3/4 | 3/8 Bush Nut | $715.00 | ||
| FSB23-2-3BN-4-W | No | 1.938 | 3/4 | 3/8 Bush Nut | $775.00 | ||
| FSB23-2-3BN-4XS-S | No | 1.938 | 3/4 | 3/8 Bush Nut | $745.00 | ||
| FSB23-2-3BN-4XS-W | No | 1.938 | 3/4 | 3/8 Bush Nut | $805.00 | ||
| FSB23-2-3BN-6-S | No | 1.938 | 3/4 | 3/8 Bush Nut | $730.00 | ||
| FSB23-2-3BN-6-W | No | 1.938 | 3/4 | 3/8 Bush Nut | $785.00 | ||
| FSB23-2-3BN-6XS-S | No | 1.938 | 3/4 | 3/8 Bush Nut | $765.00 | ||
| FSB23-2-3BN-6XS-W | No | 1.938 | 3/4 | 3/8 Bush Nut | $825.00 | ||
| FSB23-2-3SN-4 | No | 1.938 | 3/4 | 3/8 Sprue Nut | $620.00 | ||
| FSB23-2-3SN-4XS | No | 1.938 | 3/4 | 3/8 Sprue Nut | $660.00 | ||
| FSB23-2-3SN-6 | No | 1.938 | 3/4 | 3/8 Sprue Nut | $620.00 | ||
| FSB23-2-3SN-6XS | No | 1.938 | 3/4 | 3/8 Sprue Nut | $660.00 | ||
| FSB23-2-ON-S | No | 1.938 | 3/4 | Open Nut | $705.00 | ||
| FSB23-2-ON-W | No | 1.938 | 3/4 | Open Nut | $765.00 | ||
| FSB27-1-3BN-4-S | No | 2.438 | 1/2 | 3/8 Bush Nut | $720.00 | ||
| FSB27-1-3BN-4-W | No | 2.438 | 1/2 | 3/8 Bush Nut | $775.00 | ||
| FSB27-1-3BN-4XS-S | No | 2.438 | 1/2 | 3/8 Bush Nut | $750.00 | ||
| FSB27-1-3BN-4XS-W | No | 2.438 | 1/2 | 3/8 Bush Nut | $810.00 | ||
| FSB27-1-3BN-6-S | No | 2.438 | 1/2 | 3/8 Bush Nut | $730.00 | ||
| FSB27-1-3BN-6-W | No | 2.438 | 1/2 | 3/8 Bush Nut | $790.00 | ||
| FSB27-1-3BN-6XS-S | No | 2.438 | 1/2 | 3/8 Bush Nut | $770.00 | ||
| FSB27-1-3BN-6XS-W | No | 2.438 | 1/2 | 3/8 Bush Nut | $825.00 | ||
| FSB27-1-3SN-4 | No | 2.438 | 1/2 | 3/8 Sprue Nut | $625.00 | ||
| FSB27-1-3SN-4XS | No | 2.438 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB27-1-3SN-6 | No | 2.438 | 1/2 | 3/8 Sprue Nut | $625.00 | ||
| FSB27-1-3SN-6XS | No | 2.438 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB27-1-ON-S | No | 2.438 | 1/2 | Open Nut | $705.00 | ||
| FSB27-1-ON-W | No | 2.438 | 1/2 | Open Nut | $765.00 | ||
| FSB27-2-3BN-4-S | No | 2.438 | 3/4 | 3/8 Bush Nut | $720.00 | ||
| FSB27-2-3BN-4-W | No | 2.438 | 3/4 | 3/8 Bush Nut | $775.00 | ||
| FSB27-2-3BN-4XS-S | No | 2.438 | 3/4 | 3/8 Bush Nut | $750.00 | ||
| FSB27-2-3BN-4XS-W | No | 2.438 | 3/4 | 3/8 Bush Nut | $810.00 | ||
| FSB27-2-3BN-6-S | No | 2.438 | 3/4 | 3/8 Bush Nut | $730.00 | ||
| FSB27-2-3BN-6-W | No | 2.438 | 3/4 | 3/8 Bush Nut | $790.00 | ||
| FSB27-2-3BN-6XS-S | No | 2.438 | 3/4 | 3/8 Bush Nut | $770.00 | ||
| FSB27-2-3BN-6XS-W | No | 2.438 | 3/4 | 3/8 Bush Nut | $825.00 | ||
| FSB27-2-3SN-4 | No | 2.438 | 3/4 | 3/8 Sprue Nut | $625.00 | ||
| FSB27-2-3SN-4XS | No | 2.438 | 3/4 | 3/8 Sprue Nut | $660.00 | ||
| FSB27-2-3SN-6 | No | 2.438 | 3/4 | 3/8 Sprue Nut | $625.00 | ||
| FSB27-2-3SN-6XS | No | 2.438 | 3/4 | 3/8 Sprue Nut | $660.00 | ||
| FSB27-2-ON-S | No | 2.438 | 3/4 | Open Nut | $705.00 | ||
| FSB27-2-ON-W | No | 2.438 | 3/4 | Open Nut | $765.00 | ||
| FSB33-1-3BN-4-S | No | 2.938 | 1/2 | 3/8 Bush Nut | $720.00 | ||
| FSB33-1-3BN-4-W | No | 2.938 | 1/2 | 3/8 Bush Nut | $775.00 | ||
| FSB33-1-3BN-4XS-S | No | 2.938 | 1/2 | 3/8 Bush Nut | $750.00 | ||
| FSB33-1-3BN-4XS-W | No | 2.938 | 1/2 | 3/8 Bush Nut | $810.00 | ||
| FSB33-1-3BN-6-S | No | 2.938 | 1/2 | 3/8 Bush Nut | $730.00 | ||
| FSB33-1-3BN-6-W | No | 2.938 | 1/2 | 3/8 Bush Nut | $790.00 | ||
| FSB33-1-3BN-6XS-S | No | 2.938 | 1/2 | 3/8 Bush Nut | $770.00 | ||
| FSB33-1-3BN-6XS-W | No | 2.938 | 1/2 | 3/8 Bush Nut | $825.00 | ||
| FSB33-1-3SN-4 | No | 2.938 | 1/2 | 3/8 Sprue Nut | $625.00 | ||
| FSB33-1-3SN-4XS | No | 2.938 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB33-1-3SN-6 | No | 2.938 | 1/2 | 3/8 Sprue Nut | $625.00 | ||
| FSB33-1-3SN-6XS | No | 2.938 | 1/2 | 3/8 Sprue Nut | $660.00 | ||
| FSB33-1-ON-S | No | 2.938 | 1/2 | Open Nut | $705.00 | ||
| FSB33-1-ON-W | No | 2.938 | 1/2 | Open Nut | $765.00 | ||
| FSB33-2-3BN-4-S | No | 2.938 | 3/4 | 3/8 Bush Nut | $740.00 | ||
| FSB33-2-3BN-4-W | No | 2.938 | 3/4 | 3/8 Bush Nut | $820.00 | ||
| FSB33-2-3BN-4XS-S | No | 2.938 | 3/4 | 3/8 Bush Nut | $770.00 | ||
| FSB33-2-3BN-4XS-W | No | 2.938 | 3/4 | 3/8 Bush Nut | $860.00 | ||
| FSB33-2-3BN-6-S | No | 2.938 | 3/4 | 3/8 Bush Nut | $740.00 | ||
| FSB33-2-3BN-6-W | No | 2.938 | 3/4 | 3/8 Bush Nut | $820.00 | ||
| FSB33-2-3BN-6XS-S | No | 2.938 | 3/4 | 3/8 Bush Nut | $770.00 | ||
| FSB33-2-3BN-6XS-W | No | 2.938 | 3/4 | 3/8 Bush Nut | $860.00 | ||
| FSB33-2-3SN-4 | No | 2.938 | 3/4 | 3/8 Sprue Nut | $625.00 | ||
| FSB33-2-3SN-4XS | No | 2.938 | 3/4 | 3/8 Sprue Nut | $660.00 | ||
| FSB33-2-3SN-6 | No | 2.938 | 3/4 | 3/8 Sprue Nut | $625.00 | ||
| FSB33-2-3SN-6XS | No | 2.938 | 3/4 | 3/8 Sprue Nut | $660.00 |
