- Range of movement: Pivot 180 Swivel 360
- 5:1 minimum safety factor
- Meets military specification number MIL-STD 1365(11) or MIL-STD 209C
- 100% magnetic particle inspected
- Meets OSHA requirements
- Unit of Measure - Inch

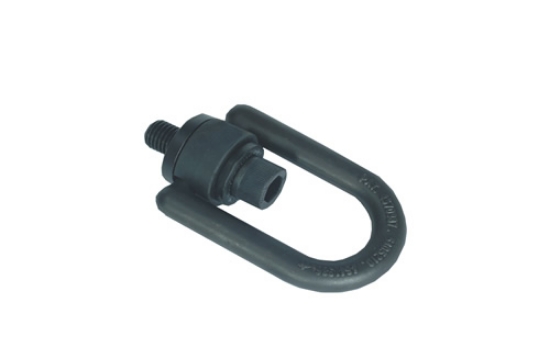

Safety Hoist Rings - Inch
PCS Safety Hoist Rings are a perfect replacement for traditional eyebolts. When moving heavy, angular or unbalanced loads, eyebolts tend to twist, bend and break. Hoist Rings swivel 360° and pivot 180° providing a minimum safety factor of 5:1. These hoist rings are 100% magnetic particle inspected and meet all OSHA requirements.
| Item Number | Thread | Rated Load ( lb ) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| 23009 | 3/4 - 10 | 5000 | $124.85 | ||
| 23106 | 1 - 8 | 10000 | $269.07 | ||
| 23200 | 2 - 4 1/2 | 30000 | $655.68 | ||
| 23201 | 2 - 4 1/2 | 30000 | $655.68 | ||
| 23202 | 1 1/2 - 6 | 24000 | $556.66 | ||
| 23217 | N/A | N/A | $1.25 | ||
| 23237 | N/A | N/A | $2.15 | ||
| 23301 | 1/2 - 13 | 2500 | $123.41 | ||
| 23503 | 2 1/2 - 4 | 50000 | $1,529.21 | ||
| 33101 | 7/8 - 9 | 8000 | $187.22 | ||
| 33105 | 1 - 8 | 10000 | $194.27 | ||
| 33212 | 5/16 - 18 | 800 | $68.32 | ||
| 33312 | 3/8 - 16 | 1000 | $68.32 | ||
| 33401 | 1 1/4 - 7 | 15000 | $289.14 | ||
| 33420 | 1 3/8 - 6 | 20000 | $309.41 | ||
| 33424 | 1 1/2 - 6 | 24000 | $333.07 | ||
| 33432-1 | 2 - 8 | 30000 | $561.00 | ||
| 33515 | 1/2 - 13 | 2500 | $82.78 | ||
| 33614 | 5/8 - 11 | 4000 | $82.78 | ||
| 33714 | 3/4 - 10 | 5000 | $86.03 |
