- Ideal for thin sections where heads cannot protrude
- Enables fastening with flush finish
- Standard 82° angle underneath head

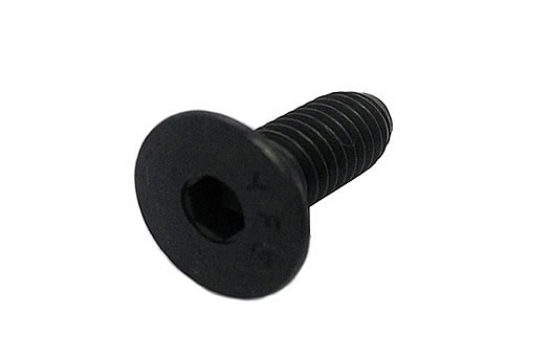

Flat Head Cap Screws
Flat Head Cap Screws are used in countersunk holes. These screws are useful in tools and dies where moving parts pass over the fastened area.
| Item Number | D Thread Diameter | E Thread Length | H Head Diameter | Size of Hex Key | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FHCS1024-500 | 10-24 | 1/2 | Min- 0.117 Max- 0.138 | 0.035 | $0.20 | ||
| FHCS1024-625 | 10-24 | 5/8 | Min- 0.117 Max- 0.138 | 0.035 | $0.10 | ||
| FHCS1024-750 | 10-24 | 3/4 | Min- 0.117 Max- 0.138 | 0.035 | $0.11 | ||
| FHCS1720-1000 | 1/4-20 | 1 | Min- 0.480 Max- 0.531 | 0.156 | $0.18 | ||
| FHCS1720-1250 | 1/4-20 | 1 1/4 | Min- 0.480 Max- 0.531 | 0.156 | $0.21 | ||
| FHCS1720-500 | 1/4-20 | 1/2 | Min- 0.480 Max- 0.531 | 0.156 | $0.13 | ||
| FHCS1720-625 | 1/4-20 | 5/8 | Min- 0.480 Max- 0.531 | 0.156 | $0.13 | ||
| FHCS1720-750 | 1/4-20 | 3/4 | Min- 0.480 Max- 0.531 | 0.156 | $0.14 | ||
| FHCS1720-875 | 1/4-20 | 7/8 | Min- 0.480 Max- 0.531 | 0.156 | $0.24 | ||
| FHCS2118-500 | 5/16-18 | 1/2 | Min- 0.600 Max- 0.656 | 0.188 | $0.20 | ||
| FHCS2118-875 | 5/16-18 | 7/8 | Min- 0.600 Max- 0.656 | 0.188 | $0.39 |
