- Radius: 3/4"
- Orifice: 1/16" through 3/8"
- Rear opening: 1/2"
- Material: 4140
- Hardness: 34 - 36 HRC

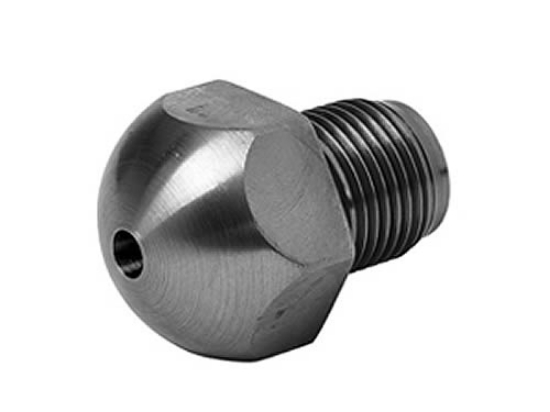

Large Radius Nozzle Tips
PCS Company's Large Radius (Mushroom) Nozzle Tips are for general purpose use. The large radius tips come in 3/4" radius with 7/8 - 14 thread. The outer hex is 1-1/4" for easy installation and removal. The orifice ranges from 1/16" through 3/8" with an OAL of 1-3/4". Requirements for nylon and full taper designs will be quoted as a special.
| Item Number | Radius | Orifice | Rear Opening | Thread | OAL | Hex | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| RTG-M31132 | 3/4" | 11/32" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3116 | 3/4" | 1/16" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M314 | 3/4" | 1/4" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M318 | 3/4" | 1/8" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3316 | 3/4" | 3/16" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3332 | 3/4" | 3/32" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M338 | 3/4" | 3/8" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3516 | 3/4" | 5/16" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3532 | 3/4" | 5/32" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3732 | 3/4" | 7/32" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 | ||
| RTG-M3932 | 3/4" | 9/32" | 1/2" | 7/8 - 14 | 1-3/4" | 1-1/4" | $70.00 |
