- Includes body and center insert
- Center insert sits flush within body
- Designed for efficient installation and removal
- Stainless steel construction
- Provides excellent traceability

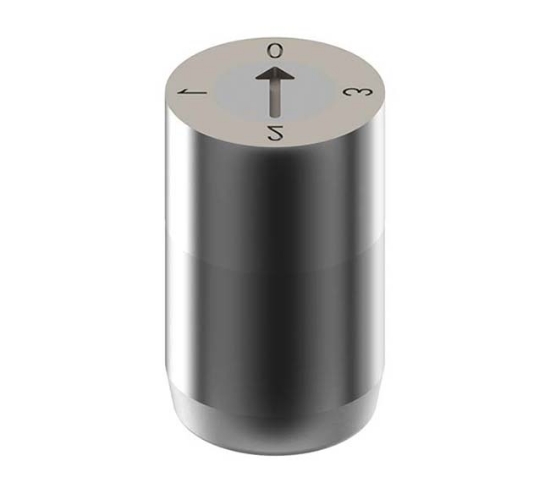

Shifts
Standard Date Stamp Assemblies are made of stainless steel. The Center Insert is always at the same level as the body of the date stamp. Diameters ranging 4 mm to 20 mm are available. Center Inserts are easily changed reducing downtime. Standard Assemblies are available in Shift, Day, Month and Year.
| Item Number | Engraved Lettering | A Assembly Diameter | L Assembly Length | C Center Insert Diameter | J Center Insert Length | D Slide Fit Length | E K.O. Hole Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| DS 04-03 | 0-3 and Arrow | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $126.54 $94.90 | ||
| DS 04-05 | 0-5 and Arrow | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $135.00 $101.25 | ||
| DS 04-09 | 0-9 and Arrow | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $180.61 $135.46 | ||
| DS 05-03 | 0-3 and Arrow | 5 | 12 | 3 | 7.7 | 6 | 3.5 | $126.54 $94.90 | ||
| DS 05-09 | 0-9 and Arrow | 5 | 12 | 3 | 7.7 | 6 | 3.5 | $180.61 $135.46 | ||
| DS 06-03 | 0-3 and Arrow | 6 | 20 | 3.2 | 17 | 12 | 4 | $130.86 $98.14 | ||
| DS 06-09 | 0-9 and Arrow | 6 | 20 | 3.2 | 17 | 12 | 4 | $180.61 $135.46 | ||
| DS 08-010 | 0-10 and Arrow | 8 | 20 | 4.7 | 17 | 12 | 6 | $183.86 $137.90 | ||
| DS 08-03 | 0-3 and Arrow | 8 | 20 | 4.7 | 17 | 12 | 6 | $130.86 $98.14 | ||
| DS 08-05 | 0-5 and Arrow | 8 | 20 | 4.7 | 17 | 12 | 6 | $135.00 $101.25 | ||
| DS 08-09 | 0-9 and Arrow | 8 | 20 | 4.7 | 17 | 12 | 6 | $226.03 $169.52 | ||
| DS 10-03 | 0-3 and Arrow | 10 | 20 | 5.7 | 17 | 12 | 8 | $130.86 $98.14 | ||
| DS 10-09 | 0-9 and Arrow | 10 | 20 | 5.7 | 17 | 12 | 8 | $180.61 $135.46 | ||
| DS 12-03 | 0-3 and Arrow | 12 | 20 | 6.7 | 17 | 12 | 10 | $138.43 $103.82 | ||
| DS 12-09 | 0-9 and Arrow | 12 | 20 | 6.7 | 17 | 12 | 10 | $180.61 $135.46 | ||
| DS 16-03 | 0-3 and Arrow | 16 | 20 | 8.7 | 17 | 12 | 12 | $138.43 $103.82 | ||
| DS 16-09 | 0-9 and Arrow | 16 | 20 | 8.7 | 17 | 12 | 12 | $180.61 $135.46 | ||
| DS 20-03 | 0-3 and Arrow | 20 | 20 | 10.7 | 17 | 12 | 14 | $149.25 $111.94 |
