- Supplied with machining allowance on upper surface
- Slight contourings possible
- Available in hardness 60HRC
- Highly wear resistant hot working steel M2 (1.3343)
- Unit of Measure - Millimeters

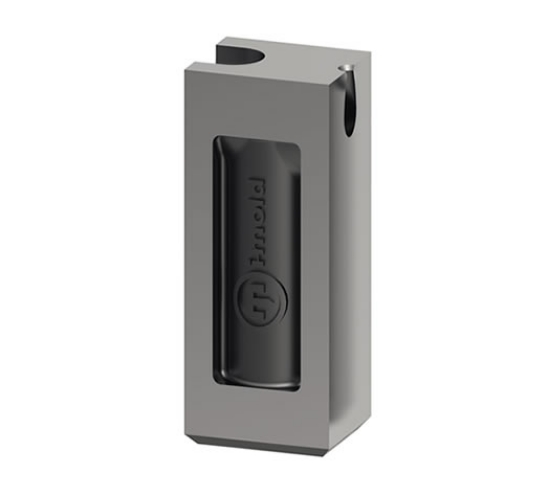

i-mold Standard Version S1 - Square
PCS Company offers i-mold Standard Version S1 - Square tunnel gate inserts. These inserts come with machining allowance on the upper surface. The gate point diameter of "Standard" tunnel gate inserts is already completely constructed. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
| Item Number | b | b1 | h | d1 Gate ) | d3 ( runner size ) | M | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGS10-08-S1-H | 10 | 8 | 22.8 | 0.8 | 4 | 5 | 5 | 4 | 3 | $139.35 | ||
| TGS10-12-S1-H | 10 | 8 | 22.8 | 1.2 | 4 | 5 | 20 | 12 | 8 | $139.35 | ||
| TGS10-16-S1-H | 10 | 8 | 22.8 | 1.6 | 4 | 5 | 30 | 20 | 12 | $139.35 | ||
| TGS12-12-S1-H | 12 | 10 | 22.8 | 1.2 | 5 | 5 | 20 | 12 | 8 | $151.51 | ||
| TGS12-16-S1-H | 12 | 10 | 22.8 | 1.6 | 5 | 5 | 30 | 20 | 12 | $151.51 | ||
| TGS12-20-S1-H | 12 | 10 | 22.8 | 2 | 5 | 5 | 50 | 35 | 25 | $151.51 | ||
| TGS14-16-S1-H | 14 | 12 | 22.8 | 1.6 | 6 | 6 | 30 | 20 | 10 | $164.79 | ||
| TGS14-20-S1-H | 14 | 12 | 22.8 | 2 | 6 | 6 | 50 | 35 | 25 | $164.79 | ||
| TGS14-24-S1-H | 14 | 12 | 22.8 | 2.4 | 6 | 6 | 100 | 70 | 45 | $164.79 | ||
| TGS14-28-S1-H | 14 | 12 | 22.8 | 2.8 | 6 | 6 | 200 | 120 | 75 | $164.79 | ||
| TGS8-06-S1-H | 8 | 6 | 22.6 | 0.6 | 3 | 4 | 3 | 2 | 1 | $136.02 | ||
| TGS8-08-S1-H | 8 | 6 | 22.6 | 0.8 | 3 | 4 | 5 | 4 | 3 | $136.02 |
