- O.D. and I.D. are nitrided to 65 - 74 Rc. to minimize wear and improve lubricity
- Bearing Surface between 1-3/4" and 2-1/4"
- Bearing Length tolerance +.032/-.000
- Tapered Lead in 1° per side for friction free entry
- Etched for easy identification
- Unit of Measure - inch

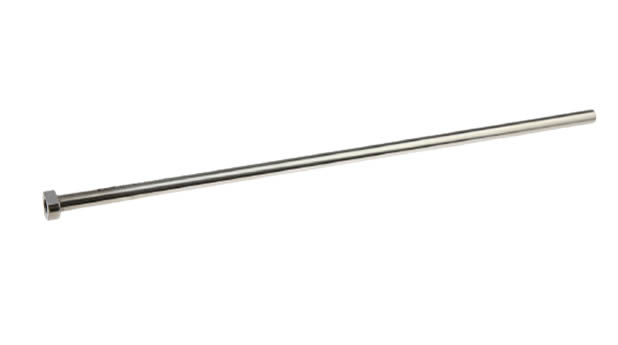

Nitrided Ejector Sleeves - D-Head
PCS Company offers Nitrided Ejector Sleeves - D-Head. PCS Company's sleeves can be used to eject the part or serve as a bushing for an ejector pin. Lengths up to 13". Both the inside diameter and outside diameter are nitrided.
| Item Number | Weight(lbs.) | I I.D. | Bearing Length | D O.D. | L Overall Length | H Head Diameter | R Pin to Head Radius | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| DSL15-8 | 1 | 1/8 | 1-3/4 | 7/32 | 8 | 13/32 | 1/32 Max | $67.97 | ||
| DSL17-10 | 1 | 5/32 | 2-1/4 | 1/4 | 10 | 7/16 | 1/32 Max | $56.00 | ||
| DSL17-6 | 1 | 5/32 | 2-1/4 | 1/4 | 6 | 7/16 | 1/32 Max | $37.38 | ||
| DSL17-9 | 1 | 5/32 | 2-1/4 | 1/4 | 9 | 7/16 | 1/32 Max | $51.05 | ||
| DSL21-6 | 1 | 3/16 | 2-1/4 | 5/16 | 6 | 1/2 | 1/32 Max | $37.70 | ||
| DSL21-8 | 1 | 3/16 | 2-1/4 | 5/16 | 8 | 1/2 | 1/32 Max | $45.92 | ||
| DSL23-12 | 1 | 7/32 | 2-1/4 | 11/32 | 12 | 9/16 | 1/32 Max | $65.91 | ||
| DSL25-13 | 1 | 1/4 | 2-1/4 | 3/8 | 13 | 5/8 | 1/32 Max | $79.00 | ||
| DSL29-7 | 1 | 5/16 | 2-1/4 | 7/16 | 7 | 11/16 | 1/32 Max | $46.89 | ||
| DSL29-9 | 1 | 5/16 | 2-1/4 | 7/16 | 9 | 11/16 | 1/32 Max | $55.31 | ||
| DSL33-11 | 1 | 3/8 | 2-1/4 | 1/2 | 11 | 3/4 | 1/32 Max | $67.91 |
