- PCS Polimax™ 800 series hot sprue bushings
- 14mm flow diameter
- Standard and high performance options
- Requires 800 series nozzle tip assemblies
- 240v with J type thermocouple

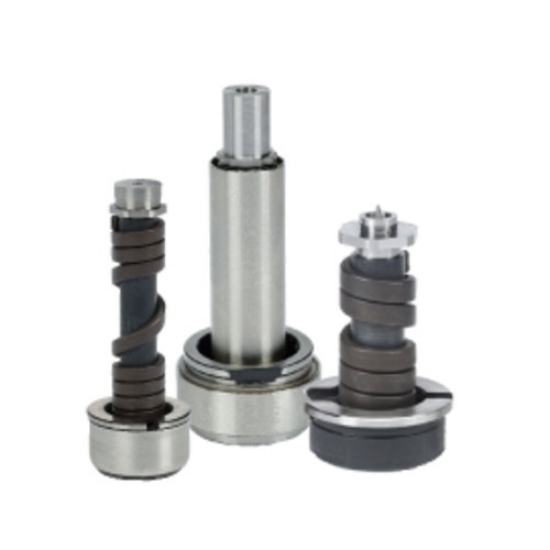

High Performance Polimax 800 Series Hot Sprue Bushing Assemblies
Polimax™ 800 Series Hot Sprue Bushing Assemblies replace the standard cold sprue bushing. Polimax™ Hot Sprue Bushings reduce waste and minimize cycle time. These Hot Sprue Bushings with a head heater can produce parts made of commodity and engineering grade resins, with weights up to 2000 grams.
| Item Number | L Dimension ( mm ) | R Radius | Head Heater Included | Tip Style | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| EDP14165-R075 | 165 | 3/4 in | Yes | Purchased Separately | $1,509.48 | ||
| EDP14350-R050 | 350 | 1/2 in | Yes | Purchased Separately | $3,150.29 | ||
| EDP14400-R050 | 400 | 1/2 in | Yes | Purchased Separately | $3,293.84 | ||
| EDP14450-R050 | 450 | 1/2 in | Yes | Purchased Separately | $3,444.55 |
