- 2 Flute Coated Solid Carbide
- AlTiN Coated for longer tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Eliminates rough finish commonly left by typical 4 flute tools

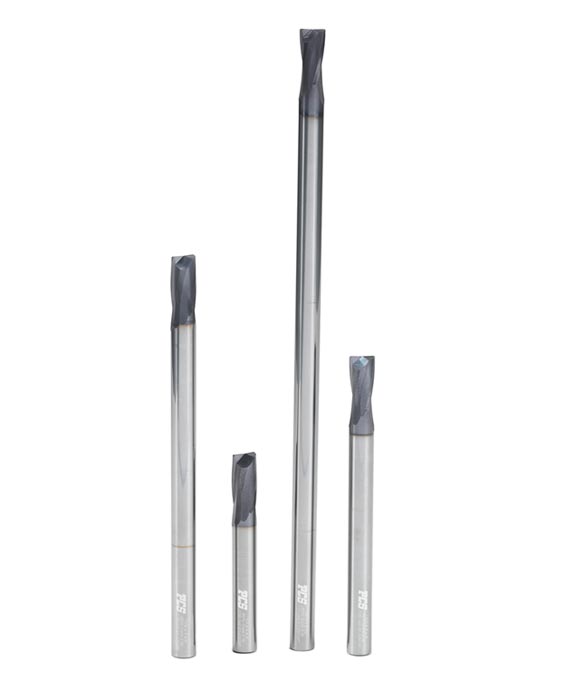

Corner Radius Finishing End Mill
80% Core 2 Flute Coated Solid Carbide End Mills - Corner Radius
| Item Number | End Style | Flute Diameter | Corner Radius | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 81-2187P | Corner Radius | 3/16 | 0.020 | 3/4 | 4 | 0.1875 | $28.39 | ||
| 81-2188P | Corner Radius | 3/16 | 0.020 | 3/4 | 6 | 0.1875 | $37.47 | ||
| 81-2250P | Corner Radius | 1/4 | 0.030 | 3/4 | 4 | 0.25 | $37.47 | ||
| 81-2251P | Corner Radius | 1/4 | 0.030 | 3/4 | 6 | 0.025 | $42.01 | ||
| 81-2375P | Corner Radius | 3/8 | 0.030 | 7/8 | 4 | 0.375 | $48.83 | ||
| 81-2376P | Corner Radius | 3/8 | 0.030 | 7/8 | 6 | 0.375 | $57.92 | ||
| 81-2500P | Corner Radius | 1/2 | 0.030 | 1 | 4 | 0.5 | $69.27 | ||
| 81-2501P | Corner Radius | 1/2 | 0.030 | 1 | 6 | 0.5 | $87.44 | ||
| 81-2502P | Corner Radius | 1/2 | 0.030 | 1 | 8 | 0.5 | $114.69 | ||
| 81-2503P | Corner Radius | 1/2 | 0.030 | 1 | 12 | 0.5 | $147.68 |
