- Unit of Measure: Millimeters
- Allows for precise measurement of cavity pressure
- Improves process reliability and ensures consistent part quality
- 6 mm diameter
- Compact design for small parts
- 392°F/200°C max. operating temperature
- For cavity pressures up to 3000 bar
- Requires 1645 cable (not included)
- Cables available in 0.4m & 1m lengths with M4 connection
- Compatible with RJG 9211 sensor

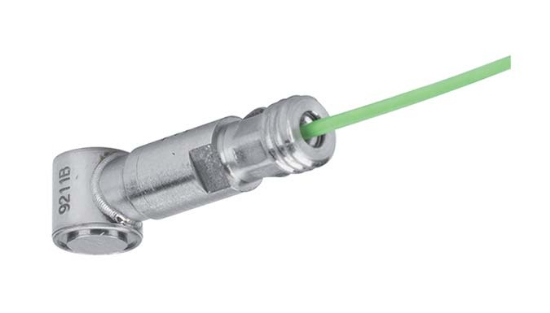

Kistler Cavity Pressure Sensor Head - 9211B
PCS Company offers the Kistler 9211B miniature cavity pressure sensor head, offering high resolution, extremely small dimensions, and a rugged, welded case, for measuring mold cavity pressure of up to 3,000 bar during injection. The sensor is positioned under the ejector pin in the ejector plate, and measures the force curve using the ejector pin. This allows calculation of the actual mold cavity pressure. Thanks to its compactness, the 9211B miniature force sensor is suitable for dynamic and quasistatic force measurements, particularly useful for applications in injection molding, where space is critical and forces are high. Indirect pressure measurement is particularly suitable for molds with small cavities.
| Item Number | Head Diameter | Min. Measuring Range | Max. Measuring Range | Overload | Threshold | Sensitivity | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 18007424 | 6 mm | 0 kN | 2.5 kN | 3000 N | 10 mN | –4.4 pC/N | $1,090.00 |
