- Unit of Measure - Inch
- Provide reliable connections to extension or connection plugs
- Straight, 45° & 90° stems available
- Used with male or female extension plugs
- Sleeve is zinc plated for easy identification

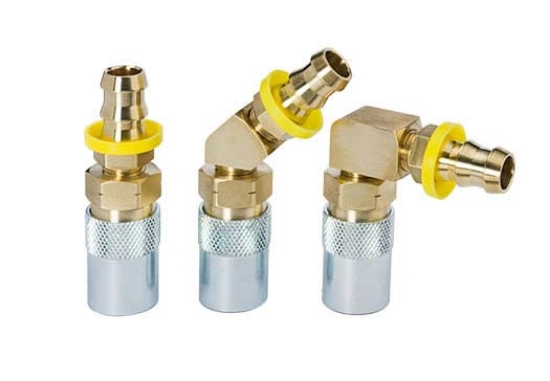

Socket Connectors Valved
PCS Valved Socket Connectors have a valved design which stops coolant flow upon disconnecting. The all brass and stainless steel construction can with stand pressures up to 200 psi. These Socket Connectors are compatible with all mold connection systems.
| Item Number | Series | Body Size | Fits Hose I.D. | Stem Angle | Stem Type | Use With Plug | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| PS-204V | 200 | 1/4 | 1/4 | Straight | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $8.09 | ||
| PS-204VP | 200 | 1/4 | 1/4 | Straight | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $8.16 | ||
| PS-205V | 200 | 1/4 | 5/16 | Straight | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $8.16 | ||
| PS-206V | 200 | 1/4 | 3/8 | Straight | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $8.24 | ||
| PS-206VP | 200 | 1/4 | 3/8 | Straight | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $8.46 | ||
| PS-214V | 200 | 1/4 | 1/4 | 90 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.52 | ||
| PS-214VP | 200 | 1/4 | 1/4 | 90 | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.67 | ||
| PS-215V | 200 | 1/4 | 5/16 | 90 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $7.90 | ||
| PS-216V | 200 | 1/4 | 3/8 | 90 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.75 | ||
| PS-216VP | 200 | 1/4 | 3/8 | 90 | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.90 | ||
| PS-224V | 200 | 1/4 | 1/4 | 45 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.67 | ||
| PS-224VP | 200 | 1/4 | 1/4 | 45 | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.82 | ||
| PS-225V | 200 | 1/4 | 5/16 | 45 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.82 | ||
| PS-226V | 200 | 1/4 | 3/8 | 45 | Standard Barb | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $9.90 | ||
| PS-226VP | 200 | 1/4 | 3/8 | 45 | Push-Lok | PC-250, PC-250F, PC-251,PC-251F, PC-252, PC-252F,PC-253, PC-253F | $10.05 | ||
| PS-306V | 300 | 3/8 | 3/8 | Straight | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $8.24 | ||
| PS-306VP | 300 | 3/8 | 3/8 | Straight | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $9.45 | ||
| PS-308V | 300 | 3/8 | 1/2 | Straight | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.26 | ||
| PS-308VP | 300 | 3/8 | 1/2 | Straight | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $9.90 | ||
| PS-316V | 300 | 3/8 | 3/8 | 90 | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.26 | ||
| PS-316VP | 300 | 3/8 | 3/8 | 90 | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.41 | ||
| PS-318V | 300 | 3/8 | 1/2 | 90 | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.48 | ||
| PS-318VP | 300 | 3/8 | 1/2 | 90 | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $12.79 | ||
| PS-326V | 300 | 3/8 | 3/8 | 45 | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.48 | ||
| PS-326VP | 300 | 3/8 | 3/8 | 45 | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.63 | ||
| PS-328V | 300 | 3/8 | 1/2 | 45 | Standard Barb | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $11.71 | ||
| PS-328VP | 300 | 3/8 | 1/2 | 45 | Push-Lok | PC-351, PC-351F, PC-352,PC-352F, PC-353, PC-353F,PC-354, PC-354F | $12.17 |
