- Unit of Measure - Inch
- Easy Hex Key installation
- Angular flow path allows connecting fittings to be torqued tight without choking off flow
- One piece construction insures complete removal

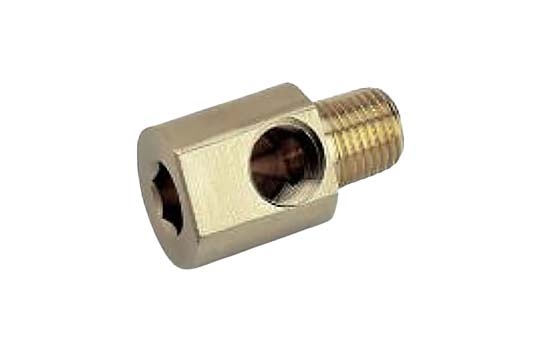

Hex Key Female to Male Street Elbows
Hex Key Female to Male Street Elbows are made of a brass construction. Minimal clearance required for installation and removal. Full flow path allows connecting fittings to be torqued tight without restricting flow.
| Item Number | A Input Pipe Size | B Output Pipe Size | E Input Pipe Location | Hex Size | L Overall Length | Min. Clearance Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| KL-14 | 1/4 | 1/4 | 0.66 | 3/8 | 1.625 | 7/8 | $4.78 | ||
| KL-1438 | 1/4 | 3/8 | 0.712 | 1/2 | 1.625 | 1 | $6.31 | ||
| KL-16 | 1/16 | 1/16 | 0.531 | 1/4 | 1.156 | 9/16 | $4.53 | ||
| KL-1618 | 1/16 | 1/8 | 0.531 | 5/16 | 1.218 | 5/8 | $4.87 | ||
| KL-18 | 1/8 | 1/8 | 0.58 | 5/16 | 1.312 | 5/8 | $3.97 | ||
| KL-1814 | 1/8 | 1/4 | 0.593 | 3/8 | 1.5 | 7/8 | $4.78 | ||
| KL-38 | 3/8 | 3/8 | 0.78 | 1/2 | 1.75 | 1 | $6.31 | ||
| KL-50 | 1/2 | 1/2 | 0.94 | 1/2 | 2.25 | 1-1/4 | $9.64 |
