- Manufactured from SAE 1040 steel
- Protects mold plates from bowing
- Helps to reduce flash
- SHCS supplied up to 2 ½” diameter support pillar

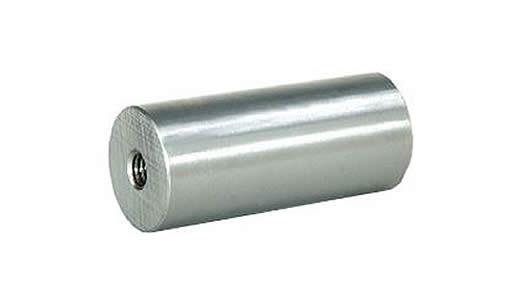

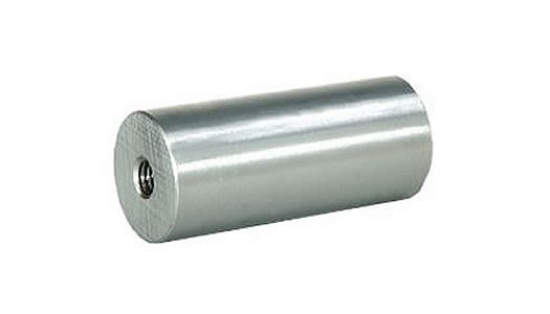

Support Pillars - Tapped
PCS Support Pillars are used to give added support to cavities, sprue and runner systems with the mold. A single row of support pillars can increase the permissible cavity load up to 4 times. Additional rows of support pillars can be added to further increase the permissible cavity load.
| Item Number | D Diameter +.000 -.015 | E Thread Depth +.030 -.000 | F Thread Size | L Overall Length +.002 +.001 | SHCS Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 1025 | 1.000 | 0.625 | 3/8-16 | 2.500 | 3/8-16 x 1 | $13.40 | ||
| 1030 | 1.000 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $13.81 | ||
| 1035 | 1.000 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $14.00 | ||
| 1040 | 1.000 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $14.27 | ||
| 1045 | 1.000 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $14.64 | ||
| 1225 | 1.250 | 0.625 | 3/8-16 | 2.500 | 3/8-16 x 1 | $14.27 | ||
| 1230 | 1.250 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $14.64 | ||
| 1235 | 1.250 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $15.49 | ||
| 1240 | 1.250 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $16.14 | ||
| 1245 | 1.250 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $16.84 | ||
| 1250 | 1.250 | 0.625 | 3/8-16 | 5.000 | 3/8-16 x 1 | $17.13 | ||
| 1260 | 1.250 | 0.625 | 3/8-16 | 6.000 | 3/8-16 x 1 | $18.60 | ||
| 1525 | 1.500 | 0.625 | 3/8-16 | 2.500 | 3/8-16 x 1 | $15.92 | ||
| 1530 | 1.500 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $16.51 | ||
| 1535 | 1.500 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $17.42 | ||
| 1540 | 1.500 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $18.73 | ||
| 1545 | 1.500 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $19.69 | ||
| 1550 | 1.500 | 0.625 | 3/8-16 | 5.000 | 3/8-16 x 1 | $20.45 | ||
| 1560 | 1.500 | 0.625 | 3/8-16 | 6.000 | 3/8-16 x 1 | $22.07 | ||
| 1725 | 1.750 | 0.625 | 3/8-16 | 2.500 | 3/8-16 x 1 | $19.88 | ||
| 1730 | 1.750 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $19.89 | ||
| 1735 | 1.750 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $20.51 | ||
| 1740 | 1.750 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $20.55 | ||
| 1745 | 1.750 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $20.88 | ||
| 1750 | 1.750 | 0.625 | 3/8-16 | 5.000 | 3/8-16 x 1 | $18.07 | ||
| 1760 | 1.750 | 0.625 | 3/8-16 | 6.000 | 3/8-16 x 1 | $21.76 | ||
| 2025 | 2.000 | 0.625 | 3/8-16 | 2.500 | 3/8-16 x 1 | $19.69 | ||
| 2030 | 2.000 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $20.91 | ||
| 2035 | 2.000 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $22.66 | ||
| 2040 | 2.000 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $24.38 | ||
| 2045 | 2.000 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $25.50 | ||
| 2050 | 2.000 | 0.625 | 3/8-16 | 5.000 | 3/8-16 x 1 | $27.79 | ||
| 2060 | 2.000 | 0.625 | 3/8-16 | 6.000 | 3/8-16 x 1 | $30.17 | ||
| 2530 | 2.500 | 0.625 | 3/8-16 | 3.000 | 3/8-16 x 1 | $36.35 | ||
| 2535 | 2.500 | 0.625 | 3/8-16 | 3.500 | 3/8-16 x 1 | $39.25 | ||
| 2540 | 2.500 | 0.625 | 3/8-16 | 4.000 | 3/8-16 x 1 | $42.59 | ||
| 2545 | 2.500 | 0.625 | 3/8-16 | 4.500 | 3/8-16 x 1 | $43.85 | ||
| 2550 | 2.500 | 0.625 | 3/8-16 | 5.000 | 3/8-16 x 1 | $45.19 | ||
| 2560 | 2.500 | 0.625 | 3/8-16 | 6.000 | 3/8-16 x 1 | $46.54 | ||
| 3035 | 3.000 | 1.250 | 5/8-11 | 3.500 | 5/8-11 x 1 1/4 | $48.86 | ||
| 3040 | 3.000 | 1.250 | 5/8-11 | 4.000 | 5/8-11 x 1 1/4 | $51.16 | ||
| 3045 | 3.000 | 1.250 | 5/8-11 | 4.500 | 5/8-11 x 1 1/4 | $53.81 | ||
| 3050 | 3.000 | 1.250 | 5/8-11 | 5.000 | 5/8-11 x 1 1/4 | $57.74 | ||
| 3060 | 3.000 | 1.250 | 5/8-11 | 6.000 | 5/8-11 x 1 1/4 | $70.04 | ||
| 3080 | 3.000 | 1.250 | 5/8-11 | 8.000 | 5/8-11 x 1 1/4 | $84.16 | ||
| 4050 | 4.000 | 1.250 | 5/8-11 | 5.000 | 5/8-11 x 1 1/4 | $90.64 | ||
| 4060 | 4.000 | 1.250 | 5/8-11 | 6.000 | 5/8-11 x 1 1/4 | $103.00 | ||
| 4080 | 4.000 | 1.250 | 5/8-11 | 8.000 | 5/8-11 x 1 1/4 | $134.38 |
