- Maximum Pressure - 150psi (10.3bar)
- Maximum Operating Temperature - 250°F (121°C)
- Normal Working Air Pressure - 80 to 100psi
- Pressure Drop across Purge Valve - 1psi at 50gpm
- Body - Glass-Filled Nylon or Brass
- Valve Disc - Stainless Steel
- O-Rings - EPDM
- Check Valve (recommended) - Brass
SWAP® Valve Bodies

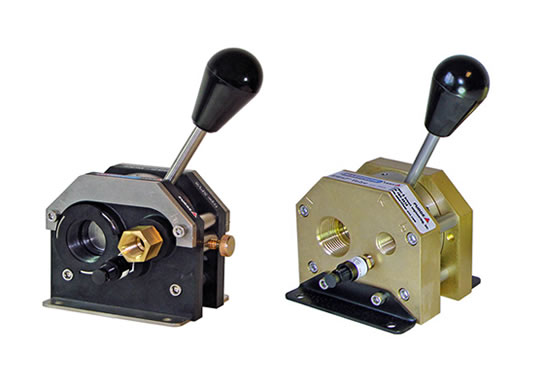

PCS Company offers SWAP®Valve Bodies to purge cooling water from molds using shop air. The bodies are made of either molded plastic or brass with 1" or 2" NPT thread sizes. Utilize accessories such at the TACO® air seperator and brass check valve to complete the installation for trouble free operation. Choose the optional spring-loaded locking pin that prevents accidental movement of the handle.
| Item Number | Weight() | Body Material | Thread Size | Locking Pin | Check Valve | Weight | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SPV16-A-B | 32 | Brass | 2" NPT | No | Yes | 32 lbs | $1,047.00 | ||
| SPV16-A-BN | 29.6 | Brass | 2" NPT | No | No | 29.6 lbs | $814.00 | ||
| SPV16-L-B | 32 | Brass | 2" NPT | Yes | Yes | 32 lbs | $1,100.00 | ||
| SPV16-L-BN | 29.6 | Brass | 2" NPT | Yes | No | 29.6 lbs | $899.00 | ||
| SPV8-A-B | 12 | Brass | 1" NPT | No | Yes | 12 lbs | $726.00 | ||
| SPV8-A-BN | 11.1 | Brass | 1" NPT | No | No | 11.1 lbs | $642.00 | ||
| SPV8-A-M | 5.5 | Molded | 1" NPT | No | Yes | 5.5 lbs | $520.00 | ||
| SPV8-A-MN | 4.7 | Molded | 1" NPT | No | No | 4.7 lbs | $435.00 | ||
| SPV8-L-B | 12 | Brass | 1" NPT | Yes | Yes | 12 lbs | $811.00 | ||
| SPV8-L-BN | 11.1 | Brass | 1" NPT | Yes | No | 11.1 lbs | $726.00 | ||
| SPV8-L-M | 5.5 | Molded | 1" NPT | Yes | Yes | 5.5 lbs | $604.00 | ||
| SPV8-L-MN | 4.7 | Molded | 1" NPT | Yes | No | 4.7 lbs | $520.00 |
