- Manufactured from Premium Hotwork Steel
- Hardened and polished
- Allows for transfer of plastic from nozzle to runner system

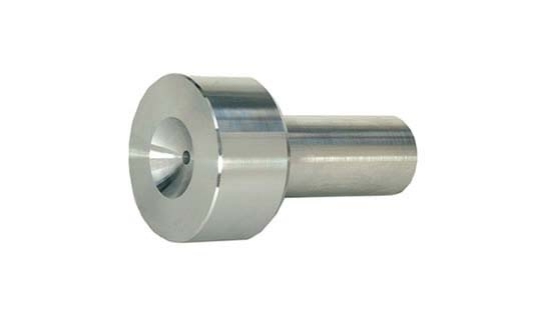

Sprue Bushing U Series - 3/4" Radius
PCS Company’s U Series sprue bushings with 3/4” radius allow plastic to flow from the injection press nozzle to the mold. These sprue bushings are manufactured from premium hotwork steel, hardened and polished for immediate use. Select from 21 different options for this series sprue bushing. View more information on PCS Company’s conformal cooled sprue bushings.
| Item Number | A Body Length | L Overall Length | Orifice | Radius | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| U-600-53 | 0.906 | 1.781 | 5/32 | 3/4 | $104.67 | ||
| U-600-73 | 0.906 | 1.781 | 7/32 | 3/4 | $62.19 | ||
| U-600-93 | 0.906 | 1.781 | 9/32 | 3/4 | $57.42 | ||
| U-601-53 | 1.406 | 2.281 | 5/32 | 3/4 | $118.60 | ||
| U-601-73 | 1.406 | 2.281 | 7/32 | 3/4 | $72.14 | ||
| U-601-93 | 1.406 | 2.281 | 9/32 | 3/4 | $72.14 | ||
| U-602-53 | 1.906 | 2.781 | 5/32 | 3/4 | $132.74 | ||
| U-602-73 | 1.906 | 2.781 | 7/32 | 3/4 | $81.47 | ||
| U-602-93 | 1.906 | 2.781 | 9/32 | 3/4 | $81.47 | ||
| U-603-53 | 2.406 | 3.281 | 5/32 | 3/4 | $145.10 | ||
| U-603-73 | 2.406 | 3.281 | 7/32 | 3/4 | $91.57 | ||
| U-603-93 | 2.406 | 3.281 | 9/32 | 3/4 | $91.57 | ||
| U-604-53 | 2.906 | 3.781 | 5/32 | 3/4 | $157.65 | ||
| U-604-73 | 2.906 | 3.781 | 7/32 | 3/4 | $101.63 | ||
| U-604-93 | 2.906 | 3.781 | 9/32 | 3/4 | $101.63 | ||
| U-605-53 | 3.406 | 4.281 | 5/32 | 3/4 | $146.96 | ||
| U-605-73 | 3.406 | 4.281 | 7/32 | 3/4 | $102.12 | ||
| U-605-93 | 3.406 | 4.281 | 9/32 | 3/4 | $102.12 | ||
| U-606-53 | 3.906 | 4.781 | 5/32 | 3/4 | $156.99 | ||
| U-606-73 | 3.906 | 4.781 | 7/32 | 3/4 | $110.59 | ||
| U-606-93 | 3.906 | 4.781 | 9/32 | 3/4 | $110.59 |
