- Unit of Measure - Inch
- Made from solid brass
- Brass pipe plug included
- Must be used with High Flow stainless steel tubes
- 30 - 60% increased flow
- Higher flow from standard cascades

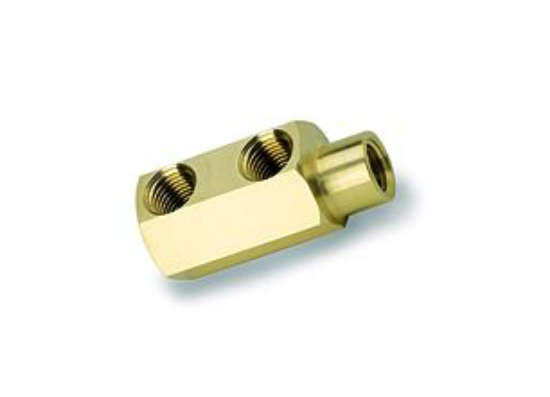

High-flow Stainless Tubes Replacement Heads
Replacement Heads for High Flow Stainless Tubes come standard in solid brass. These heads are designed to be used with high flow stainless tubes.
| Item Number | Close | Head Length | Hex Size | Outlet Hole Spread | Pilot Diameter | Pipe Tap Size (NPT) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SHC130 | 21/64 | 1-11/32 | 7/8 | 11/16 | 9/32 | 1/8 | $7.24 | ||
| SHC130A | 21/64 | 1-21/32 | 7/8 | 1 | 9/32 | 1/8 | $7.82 | ||
| SHC131 | 21/64 | 1-11/32 | 1 | 11/16 | 7/32 | 1/8 | $7.53 | ||
| SHC131A | 21/64 | 1-11/32 | 1 | 11/16 | 7/32 | 1/4 | $7.64 | ||
| SHC132 | 21/64 | 1-21/32 | 1 | 1 | 7/16 | 1/8 | $8.10 | ||
| SHC132A | 21/64 | 1-21/32 | 1 | 1 | 7/16 | 1/4 | $8.80 | ||
| SHC136A | 11/32 | 1-11/16 | 1 | 1 | 13/32 | 1/4 | $8.34 | ||
| SHC138A | 12/32 | 1-13/16 | 1-1/4 | 1 | 9/16 | 1/4 | $15.98 |
