- Straight standard sub-gate for side-gating
- Integrated dead-end recess reduces loss of pressure and shear stress
- Highly wear-resistant hot working steel M2 (1.3343) – 54+2 HRC
- Unit of Measure - Millimeters

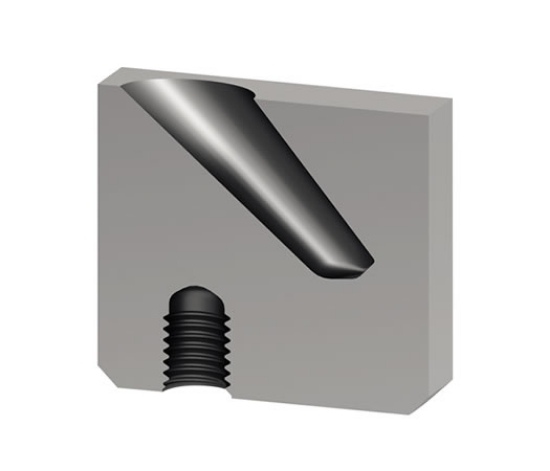

i-mold Side Gating TPS
PCS Company offers i-mold TPS Tunnel Gate Inserts for side gating. The TPS tunnel gate inserts is straight standard sub-gate for side gating into your part. Made from highly wear resistant M2 material. The TPS inserts are suitable for all resins. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
| Item Number | b | b1 | h Height | d1 Gate | d3 Runner | M Thread | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TPS-1 | 18 | 8 | 22 | 0.8-1.8 | 6 | 4 | 120 | 75 | 50 | $136.86 | ||
| TPS-2 | 25 | 10 | 22 | 0.8-2.8 | 8 | 5 | 600 | 350 | 175 | $148.81 | ||
| TPS-3 | 30 | 12 | 27 | 1.1-4.5 | 10 | 5 | 1800 | 1000 | 600 | $182.49 | ||
| TPS-S | 15 | 6 | 18 | 0.4-0.8 | 4 | 4 | 30 | 20 | 12 | $131.43 |
