- Kappa OEM replacement nozzle heater
- Threaded top tightens heater to the nozzle
- Nickle-Coated I.D. for easy removal
- 240v
- Made in the U.S.A
- Thermocouple not included

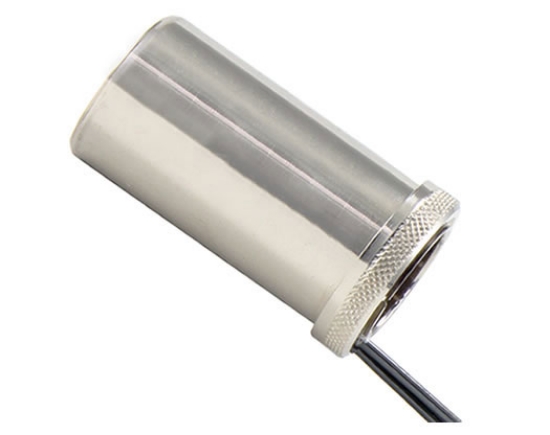

Kappa Hot Runner OEM Heaters
This Kappa OEM replacement heater maximizes high cavitation mold performance by locking the heater to the nozzle with at threaded top. The smooth nickel coating on the I.D. allows the heater to easily be removed. This heater is proudly made in the U.S.A standard 3/4" (19.05 mm) diameter and 240v.
| Item Number | Diameter ( in ) | Watts | Width | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| KSH220100 | 3/4 | 220W | 100 mm | $228.84 | ||
| KSH220110 | 3/4 | 220W | 110 mm | $261.44 | ||
| KSH220130 | 3/4 | 220W | 130 mm | $275.10 | ||
| KSH220150 | 3/4 | 220W | 150 mm | $288.87 | ||
| KSH220170 | 3/4 | 220W | 170 mm | $302.53 | ||
| KSH220190 | 3/4 | 220W | 190 mm | $316.19 | ||
| KSH220210 | 3/4 | 220W | 210 mm | $261.78 | ||
| KSH22030 | 3/4 | 220W | 30 mm | $185.27 | ||
| KSH22040 | 3/4 | 220W | 40 mm | $190.85 | ||
| KSH22050 | 3/4 | 220W | 50 mm | $193.55 | ||
| KSH22060 | 3/4 | 220W | 60 mm | $201.93 | ||
| KSH22070 | 3/4 | 220W | 70 mm | $206.59 | ||
| KSH22080 | 3/4 | 220W | 80 mm | $212.18 | ||
| KSH22090 | 3/4 | 220W | 90 mm | $217.66 | ||
| KSH26830 | 3/4 | 268W | 30 mm | $185.27 | ||
| KSH35030 | 3/4 | 350W | 30 mm | $190.85 | ||
| KSH35040 | 3/4 | 350W | 40 mm | $193.55 | ||
| KSH35050 | 3/4 | 350W | 50 mm | $201.93 | ||
| KSH400100 | 3/4 | 400W | 100 mm | $254.71 | ||
| KSH400110 | 3/4 | 400W | 110 mm | $268.38 | ||
| KSH400130 | 3/4 | 400W | 130 mm | $282.04 | ||
| KSH400150 | 3/4 | 400W | 150 mm | $295.60 | ||
| KSH40060 | 3/4 | 400W | 60 mm | $206.59 | ||
| KSH40070 | 3/4 | 400W | 70 mm | $212.18 | ||
| KSH40080 | 3/4 | 400W | 80 mm | $217.66 | ||
| KSH40090 | 3/4 | 400W | 90 mm | $223.25 | ||
| KSH450170 | 3/4 | 450W | 170 mm | $309.26 | ||
| KSH450190 | 3/4 | 450W | 190 mm | $246.38 | ||
| KSH450210 | 3/4 | 450W | 210 mm | $261.78 |
