- Unit of Measure: Millimeters
- Available in 0.40m and 1.0m lengths
- 392°F/200°C max. operating temperature
- Fluoropolymer covering
- M4x0.35 pos. – Fischer KE112
- IP65 Degree of protection EN 60529
- Compatible with the 9211 and 9204 sensors
- Compatible with RJG 1645 cables
- M4 connection

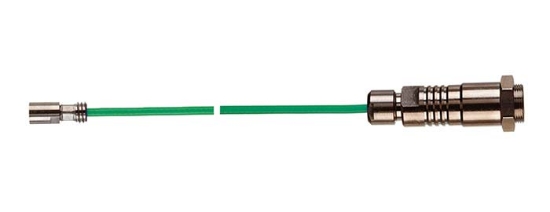

Kistler Coaxial Connecting Cables
PCS Company offers Kistler 1645C Coaxial Connection Cables, for high impedance piezoelectric measurement, which demands highly insulated coaxial cables and connectors to ensure an insulation resistance greater than 10^13 O throughout the measuring chain. Only low-noise coaxial cables that produce very little triboelectricity during movement may be used. The connectors must be robust, sealed, and resistant to dirt. Kistler connectors have been developed specifically to meet these requirements. The 1645C cables are made of stainless steel. This provides improved durability, measurement reliability, and accuracy compared to galvanized connectors. All Kistler connectors contain an O-ring seal at the cable and connection ends.
| Item Number | Diameter | Length | With Mounting Plate | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| 18000565 | 2mm | 0.4m | No | $121.00 | ||
| 18000565-1 | 2mm | 0.4m | Yes | $126.00 | ||
| 18042144 | 2mm | 1m | No | $234.38 | ||
| 18042144-1 | 2mm | 1m | Yes | $253.60 | ||
| 65005208 | N/A | 35m | Mounting Plate Only | $5.00 |
