- Stainless steel body with 1/2" NPT and Carbon steel body with 1" NPT
- Compact size works well in restricted-space locations
- Rugged construction provides years of dependable service
- Optional Temperature Gauge provides added function
- 550°F (288°C) Temperature Rating allows installation into high temperature applications
- 150psi (10.3bar) Pressure Rating satisfies most hot oil cooling pressure requirements
- Economical for use in many locations throughout the plant
- Line mounted for easy installation without extra brackets or hardware
- Stainless Steel Vane, Spring & Pin
- Non-Asbestos Fiber Gasket

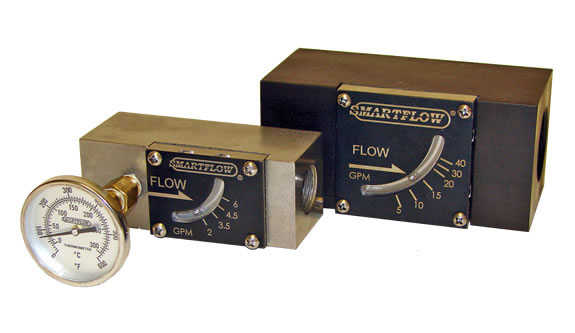

Smartflow® ½" and 1" Hot Oil Flowmeters
PCS Company offers Smartflow® ½" and 1" Hot Oil Flowmeters which are durable, vane-operated devices that provide visual indication of flow rate in gallons or liters per minute. The indicator ball is separated from the process by a high temperature gasket and stainless steel plate. A glass window retains the indicator ball. This flowmeter is designed specifically for high temperature circulating loops in industrial processes.
*NEW* - Use the Manifold Builder for the Smartflow® 1/2" and 1" Hot Oil Flowmeters to easily configure your regulator plus create interactive 3D visualization and CAD downloads. Once you have configured your regulator, simply shop the PCS Company website or contact PCS Company for your quotation.
| Item Number | Intlet Size (NPT) | Temp. Gauge | Flow Range | Body Material | Length | Width | Height | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| HF4-A-220 | 1/2" | No | 5-22 LPM | Stainless Steel | 3.75" (95.3mm) | 1.5" (38.1mm) | 1.5" (38.1mm) | $360.00 | ||
| HF4-A-60 | 1/2" | No | 2-6 GPM | Stainless Steel | 3.75" (95.3mm) | 1.5" (38.1mm) | 1.5" (38.1mm) | $360.00 | ||
| HF4-B-220 | 1/2" | Yes | 5-22 LPM | Stainless Steel | 3.75" (95.3mm) | 1.5" (38.1mm) | 1.5" (38.1mm) | $440.00 | ||
| HF4-B-60 | 1/2" | Yes | 2-6 GPM | Stainless Steel | 3.75" (95.3mm) | 1.5" (38.1mm) | 1.5" (38.1mm) | $440.00 | ||
| HF8-A-1500 | 1" | No | 20-150 LPM | Carbon Steel | 4.75" (120.6mm) | 2.25" (57.2mm) | 2.25" (57.2mm) | $494.00 | ||
| HF8-A-40 | 1" | No | 5-40 GPM | Carbon Steel | 4.75" (120.6mm) | 2.25" (57.2mm) | 2.25" (57.2mm) | $494.00 | ||
| HF8-B-1500 | 1" | Yes | 20-150 LPM | Carbon Steel | 4.75" (120.6mm) | 2.25" (57.2mm) | 2.25" (57.2mm) | $568.00 | ||
| HF8-B-40 | 1" | Yes | 5-40 GPM | Carbon Steel | 4.75" (120.6mm) | 2.25" (57.2mm) | 2.25" (57.2mm) | $568.00 |
