- Available in sizes 3/8 to 1-1/4 Inch & M8 to M48 Metric
- Clear identification of working load limit (WLL) and thread size on bolt head
- Forged material (1.6541) alloy steel wrenched and tempered
- Body and bolt 100% electromagnetic crack tested in accordance with specification EN 1677
- Safety factor of 4:1
- Load should not turn during lifting
- Distinct Florescent pink powder-coating changes its color when temperatures exceed 437F (200C)
- Includes RFID Tag

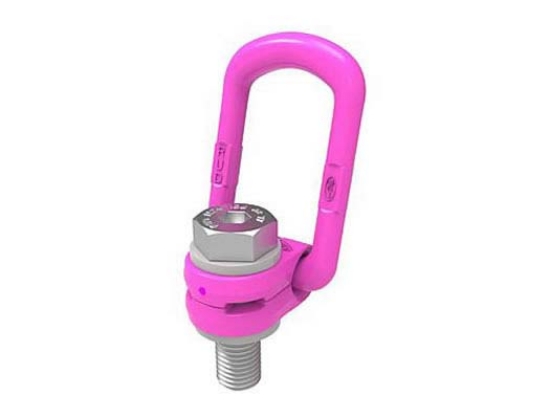

VLBG Load Ring
The RUD VLBG Load Ring is ideal for side mounting and often used for moving loads in applications that require overhead lifting and moving of heavy equipment. The RUD VLBG Load Ring can turn 360° and is adjustable to the direction of the pull. The Load ring is foldable guaranteeing full WLL in all directions.
| Item Number | Thread Size | WLL ( lbs ) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| VLBG-1147-11000 | 1 1/4 - 7 UNC | 11000 | $515.22 | ||
| VLBG-1213-2200 | 1/2 - 13 UNC | 2200 | $239.13 | ||
| VLBG-18-8800 | 1 - 8 UNC | 8820 | $342.39 | ||
| VLBG-3410-5500 | 3/4 - 10 UNC | 5500 | $309.78 | ||
| VLBG-3816-1388 | 3/8 - 16 UNC | 1390 | $219.57 | ||
| VLBG-5811-3300 | 5/8 - 11 UNC | 3300 | $272.83 | ||
| VLBG-789-5500 | 7/8 - 9 UNC | 5500 | $307.61 | ||
| VLBG-M10 | M10 | 1390 | $176.09 | ||
| VLBG-M12 | M12 | 1980 | $179.35 | ||
| VLBG-M14 | M14 | 2970 | $1,279.35 | ||
| VLBG-M16 | M16 | 2640 | $204.35 | ||
| VLBG-M18 | M18 | 4400 | $756.52 | ||
| VLBG-M20 | M20 | 4400 | $235.87 | ||
| VLBG-M24 | M24 | 7700 | $243.48 | ||
| VLBG-M27 | M27 | 9920 | $430.43 | ||
| VLBG-M30 | M30 | 8820 | $450.00 | ||
| VLBG-M36 | M36 | 14770 | $934.78 | ||
| VLBG-M42 | M42 | 17630 | $1,273.91 | ||
| VLBG-M48 | M48 | 22040 | $1,372.83 | ||
| VLBG-M8 | M8 | 44090 | $179.35 |
