- Unit of Measure - Inch
- Withstand pressures up to 72psi
- Turning the hex adjustment screw expands the diameter of the Buna O-ring to seal rough or corroded holes
- Available in sizes to fit standard or oversize cooling channels
- Oversize plugs have a .020” larger knurl diameter

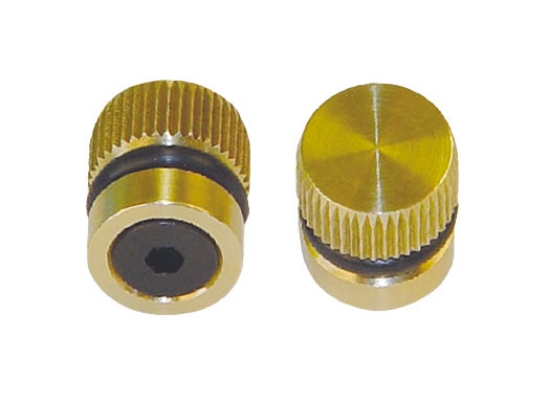

Threadless Plugs
Threadless Plugs withstand pressures up to 72 psi. Included O-Ring helps to seal rough or corroded holes.
| Item Number | Nominal Pipe Size | Drill Size | Hex Size | Overall Length | Material Type | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| BTP-10 | 1/8 | 11/32 | 5/64 | 0.5 | Brass and Buna O-ring | $3.29 | ||
| BTP-10-OS | 1/8 | 23/64 | 5/64 | 0.5 | Brass and Buna O-ring | $3.00 | ||
| BTP-20 | 1/4 | 7/16 | 1/8 | 0.56 | Brass and Buna O-ring | $3.29 | ||
| BTP-20-OS | 1/4 | 29/64 | 1/8 | 0.56 | Brass and Buna O-ring | $3.29 | ||
| BTP-40 | 3/8 | 9/16 | 1/8 | 0.62 | Brass and Buna O-ring | $3.58 | ||
| BTP-40-OS | 3/8 | 37/64 | 1/8 | 0.62 | Brass and Buna O-ring | $3.58 | ||
| BTP-40-R | 1/2 | N/A | N/A | N/A | Buna O-Ring Only | $2.56 | ||
| BTP-60 | 1/2 | 11/16 | 1/8 | 0.62 | Brass and Buna O-ring | $3.58 | ||
| BTP-60-OS | 1/2 | 45/64 | 1/8 | 0.62 | Brass and Buna O-ring | $3.58 |
