- Unit of Measure - Inch
- A & B Plates #3 Steel / All others #2 Steel
- Guided Ejection included at no extra charge
- Clamp Slots used in solid units for greater clamping stability and larger cavities and cores
- To remove guided ejection order as special
- Pry slots added to parting line
- Compatible with U Frames
- Compatible with F.I.T.S.® and MUD® U-Frames

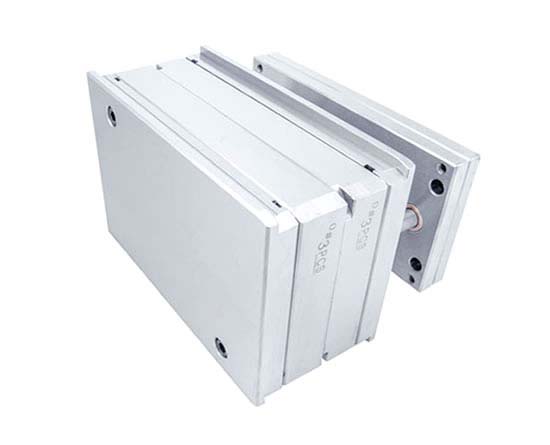

Laminated Plus F.I.T.S. Insert
Laminated inserts allow for the simplicity of removing the A or B plate when needing to make changes to part design. This insert is recommended when the additional width of the T-Style is not required. The Laminated inserts also allow room for thicker pocket walls and can be ordered with (standard) or without guided ejection. A & B Plates are made with #3 Steel, all other plates are #2 Steel.
CAD Files for F.I.T.S. inserts can be found through our CAD Library.
| Item Number | A Plate Thickness | B Plate Thickness | Guided Ejection | Series | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FTL-0809-284-X | 1.126 | 1.126 | Yes | 08/09 | $860.39 | ||
| FTL-0809-285-X | 1.126 | 1.626 | Yes | 08/09 | $864.08 | ||
| FTL-0809-286-X | 1.626 | 1.126 | Yes | 08/09 | $867.96 | ||
| FTL-0809-287-X | 1.626 | 1.626 | Yes | 08/09 | $871.84 | ||
| FTL-0809-288-X | 1.626 | 2.126 | Yes | 08/09 | $880.00 | ||
| FTL-0809-289-X | 2.126 | 1.626 | Yes | 08/09 | $879.61 | ||
| FTL-0809-290-X | 2.126 | 2.126 | Yes | 08/09 | $905.00 |
