- Unit of Measure - Inch
- Armor coated surface treatment on slide
- Pre-engineered slide assemblies reduces lead time
- Easy installation
- Mounting screws provided
- Units are finished with grind stock on overall width, bottom of guide shoe, and wedge angle

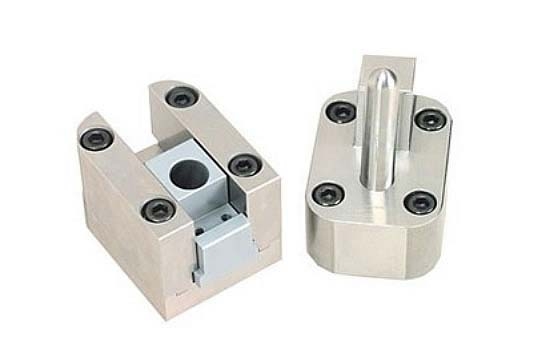

200 Series Ready Slide Assemblies
PCS 200 Series Ready Slide Assemblies are an off-the shelf alternative to the complex machining associated with slides. These assemblies are easily installed and are finished with grind stock on the overall width, bottom of guide shoe and wedge angle. The lubricious properties of the Ready Slide's armor coated treatment provide a dependable, smooth acting slide system. View more information about 200 Series Ready Slide Assemblies.
| Item Number | Description | Series | Overall Height | Overall Width | Max Cam Stroke | Slide A | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| RSA-200-AP | Angle Pin | 201, 202 & 203 | N/A | N/A | N/A | N/A | $22.70 | ||
| RSA-200-WP | Wear Plate | 201, 202 & 203 | N/A | N/A | N/A | N/A | $125.20 | ||
| RSA-201 | 201 Ready Slide Assembly | 201 | 1.765 | 1.51 | 0.5 | 0.285 | $679.04 | ||
| RSA-201-GL | Left Gibb | 201 | N/A | N/A | N/A | N/A | $119.23 | ||
| RSA-201-GR | Right Gibb | 201 | N/A | N/A | N/A | N/A | $119.23 | ||
| RSA-201-SL | Slide | 201 | N/A | N/A | N/A | 0.285 | $173.41 | ||
| RSA-201-W | Wedge | 201 | N/A | N/A | N/A | N/A | $166.93 | ||
| RSA-202 | 202 Ready Slide Assembly | 202 | 2.265 | 1.51 | 0.6 | 0.61 | $699.32 | ||
| RSA-202-GL | Left Gibb | 202 | N/A | N/A | N/A | N/A | $125.20 | ||
| RSA-202-GR | Right Gibb | 202 | N/A | N/A | N/A | N/A | $125.20 | ||
| RSA-202-SL | Slide | 202 | N/A | N/A | N/A | 0.61 | $177.00 | ||
| RSA-203 | 203 Ready Slide Assembly | 203 | 2.765 | 1.51 | 0.6 | 0.85 | $719.59 | ||
| RSA-203-GL | Left Gibb | 203 | N/A | N/A | N/A | N/A | $128.82 | ||
| RSA-203-GR | Right Gibb | 203 | N/A | N/A | N/A | N/A | $128.82 | ||
| RSA-203-SL | Slide | 203 | N/A | N/A | N/A | 0.85 | $233.57 | ||
| RSA-223-W | Wedge | 202 &203 | N/A | N/A | N/A | N/A | $166.93 |
