- Patented Self Adjusting Height
- Adjustable pivoting washer secured to clamp
- Washer slides in slot to proper clamping position
- Heavy duty forging
- Fast, accurate and safe mold clamping
- No heel bolt, shims or washers required
- Grade 8 screws not included
- Sold individually

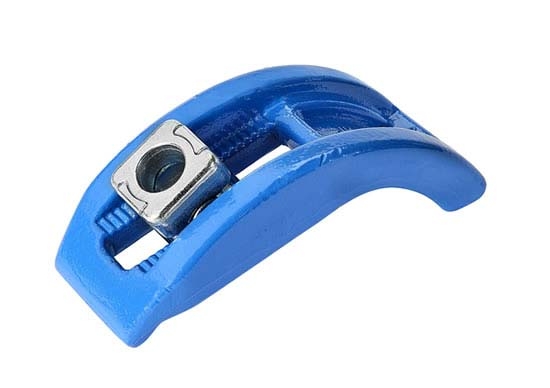

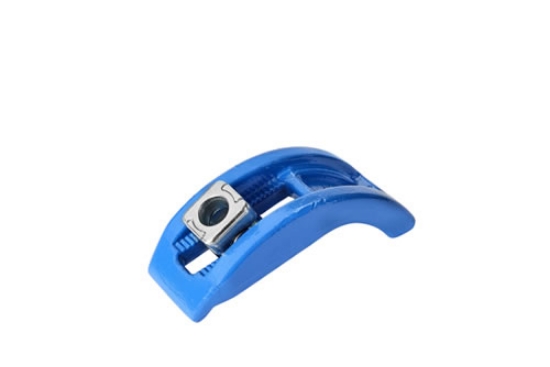

Forged Quick Adjusting Arching Mold Clamps
PCS Company's Forged Quick Adjusting Arching Mold Clamps are one of our SMED product for quick mold changes. No more extra adjustments and washers to slow down a mold change. The Forged Quick Adjusting Arching Mold Clamps provide faster, reliable and accurate clamping of your mold or die. Take advantage of the extra wide, closed toe design with the pivoting action of one bolt and sliding washer to reduce mold change time compared to conventional mold clamps. To be used with PCS's High Strength Grade 8, Hex Head Clamping Screws.
| Item Number | A OAL | B Height | C Width | D Slot | E | F Toe | G Heal | Hole Size | Bolt Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12-100 | 4" | 2" | 2" | 2" | 2.5" | .300" | 0.586" | 0.51" | 1/2"-13 | $11.90 | ||
| M16-130 | 5" | 2.25" | 2.75" | 2" | 3.5" | .440" | 0.798" | 0.654" | 5/8"-11 | $20.36 | ||
| M16-150 | 3.875" | .654" | 6" | 2.592" | 2.625" | 3.250" | .196" | .944" | 5/8"-11 | $27.25 | ||
| M20-180 | 7" | 3.5" | 3" | 4" | 4.625" | .515" | 0.932" | 0.837" | 3/4"-10 | $31.71 | ||
| M24-240 | 9.5" | 4" | 4" | 5" | 5.5" | .730" | 1.323" | 1.022" | 1"-8 | $66.07 | ||
| M30-250 | 9.875" | 4.50" | 4" | 5" | 6" | .730" | 1.323" | 1.256" | 1-1/4"-7 | $84.21 |
