- Manufactured from premium hotwork steel
- Nitrided surface reduces galling
- Manufactured to metric DIN specifications
- 2-3 week delivery on standard non-stock items
- Custom sizes available upon request

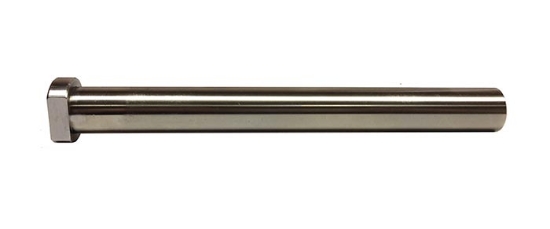

Metric Din Nitrided Ejector Pins - D-Headed
PCS Nitrided Ejector Pins are manufactured from precision ground hotwork steel. The surface hardness of each pin is nitrided to 65 -74 Rc with a core hardness of 42- 47 Rc.
| Item Number | D Pin Diameter | Head Diameter | L Overall Length | R Pin to Head Radius | T Head Thickness | Annealed Head | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| DMP025-125 | 2.5 | 5.0 | 125 | 0.3 | 2.0 | Yes | $5.82 | ||
| DMP035-200 | 3.5 | 7.0 | 200 | 0.3 | 3.0 | Yes | $8.32 | ||
| DMP05-125 | 5 | 10.0 | 125 | 0.3 | 3.0 | Yes | $7.20 | ||
| DMP05-160 | 5 | 10.0 | 160 | 0.3 | 3.0 | Yes | $7.46 | ||
| DMP05-400 | 5 | 10.0 | 400 | 0.3 | 3.0 | Yes | $10.34 | ||
| DMP055-200 | 5.5 | 10.0 | 200 | 0.3 | 3.0 | Yes | $9.38 | ||
| DMP055-315 | 5.5 | 10.0 | 315 | 0.3 | 3.0 | Yes | $11.21 | ||
| DMP06-125 | 6 | 12.0 | 125 | 0.5 | 5.0 | Yes | $7.50 | ||
| DMP06-200 | 6.2 | 12.0 | 200 | 0.5 | 5.0 | Yes | $8.21 | ||
| DMP062-315 | 6.2 | 12.0 | 315 | 0.5 | 5.0 | Yes | $12.49 | ||
| DMP06-315 | 6 | 12.0 | 315 | 0.5 | 5.0 | Yes | $9.59 | ||
| DMP06-400 | 6 | 12.0 | 400 | 0.5 | 5.0 | Yes | $11.53 | ||
| DMP08-200 | 8 | 14.0 | 200 | 0.5 | 5.0 | Yes | $9.26 | ||
| DMP08-315 | 8 | 14.0 | 315 | 0.5 | 5.0 | Yes | $10.90 | ||
| DMP08-400 | 8 | 14.0 | 400 | 0.5 | 5.0 | Yes | $13.89 | ||
| DMP08-500 | 8 | 14.0 | 500 | 0.5 | 5.0 | Yes | $16.36 | ||
| DMP08-630 | 8 | 14.0 | 630 | 0.5 | 5.0 | Yes | $19.02 | ||
| DMP10-125 | 10 | 16.0 | 125 | 0.5 | 5.0 | Yes | $8.08 | ||
| DMP10-160 | 10 | 16.0 | 160 | 0.5 | 5.0 | Yes | $10.13 | ||
| DMP10-315 | 10 | 16.0 | 315 | 0.5 | 5.0 | Yes | $13.68 | ||
| DMP10-400 | 10 | 16.0 | 400 | 0.5 | 5.0 | Yes | $18.51 | ||
| DMP10-500 | 10 | 16.0 | 500 | 0.5 | 5.0 | Yes | $22.44 | ||
| DMP125-500 | 12.5 | 18.0 | 500 | 0.8 | 7.0 | Yes | $35.06 | ||
| DMP14-400 | 14 | 22.0 | 400 | 0.8 | 7.0 | Yes | $29.66 | ||
| DMP18-400 | 18 | 24.0 | 400 | 0.8 | 7.0 | Yes | $42.94 | ||
| DMP32-200 | 32 | 40.0 | 200 | 1.0 | 10.0 | Yes | $74.74 |
