- Unit of Measure - Millimeters
- Hardness: 34-37 HRC
- 150,000 PSI Tensile Strength
- Black Finish

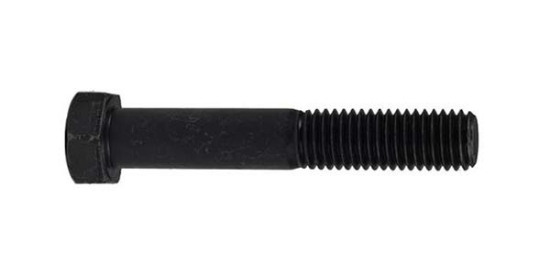

Metric Grade 8 Hex Head Bolts
PCS Company's Metric Grade 8 Hex Head Bolts range is thread sizes from M12-1.75 to M30-3.5 and lengths under the head from 50mm to 200mm.
| Item Number | Thread | Length Under Head | Wrench Size Required | Hardness (HRC) | Tensile (PSI) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| M1217550 | M12-1.75 | 50 mm | 19 mm | 34-37 | 150000 | $0.95 | ||
| M1217565 | M12-1.75 | 65 mm | 19 mm | 34-37 | 150000 | $1.15 | ||
| M1217575 | M12-1.75 | 75 mm | 19 mm | 34-37 | 150000 | $1.23 | ||
| M1217590 | M12-1.75 | 90 mm | 19 mm | 34-37 | 150000 | $1.46 | ||
| M142110 | M14-2.0 | 110 mm | 22mm | 34-37 | 150000 | $2.71 | ||
| M14290 | M14-2.0 | 90 mm | 22 mm | 34-37 | 150000 | $2.05 | ||
| M162110 | M16-2.0 | 110 mm | 24 mm | 34-37 | 150000 | $3.42 | ||
| M16250 | M16-2.0 | 50 mm | 24 mm | 34-37 | 150000 | $1.17 | ||
| M16260 | M16-2.0 | 60 mm | 24 mm | 34-37 | 150000 | $1.82 | ||
| M16275 | M16-2.0 | 75 mm | 24 mm | 34-37 | 150000 | $1.83 | ||
| M16290 | M16-2.0 | 90 mm | 24 mm | 34-37 | 150000 | $2.62 | ||
| M2025110 | M20-2.5 | 110 mm | 30 mm | 34-37 | 150000 | $4.85 | ||
| M2025130 | M20-2.5 | 130 mm | 30 mm | 34-37 | 150000 | $5.38 | ||
| M2025150 | M20-2.5 | 150 mm | 30 mm | 34-37 | 150000 | $6.37 | ||
| M20255 | M20-2.5 | 50 mm | 30 mm | 34-37 | 150000 | $2.98 | ||
| M202575 | M20-2.5 | 75 mm | 30 mm | 34-37 | 150000 | $3.83 | ||
| M202590 | M20-2.5 | 90 mm | 30 mm | 34-37 | 150000 | $4.65 | ||
| M243110 | M24-3.0 | 110 mm | 36 mm | 34-37 | 150000 | $7.51 | ||
| M243120 | M24-3.0 | 120 mm | 36 mm | 34-37 | 150000 | $8.74 | ||
| M243150 | M24-3.0 | 150 mm | 36 mm | 34-37 | 150000 | $9.02 | ||
| M243180 | M24-3.0 | 180 mm | 36 mm | 34-37 | 150000 | $15.00 | ||
| M243200 | M24-3.0 | 200 mm | 36 mm | 34-37 | 150000 | $16.77 | ||
| M24390 | M24-3.0 | 90 mm | 36 mm | 34-37 | 150000 | $7.22 | ||
| M3035120 | M30-3.5 | 120 mm | 46 mm | 34-37 | 150000 | $14.85 | ||
| M3035150 | M30-3.5 | 150 mm | 46 mm | 34-37 | 150000 | $18.02 | ||
| M3035180 | M30-3.5 | 180 mm | 46 mm | 34-37 | 150000 | $20.92 | ||
| M3035200 | M30-3.5 | 200 mm | 46 mm | 34-37 | 150000 | $22.74 |
