- Unit of Measure: Inch
- Available in 2, 5, 8 and 12 zones
- Material: Heavy gauge steel
- 5, 8 and 12 zone powder coated for protection
- Pre-Cut and Pre-Drilled

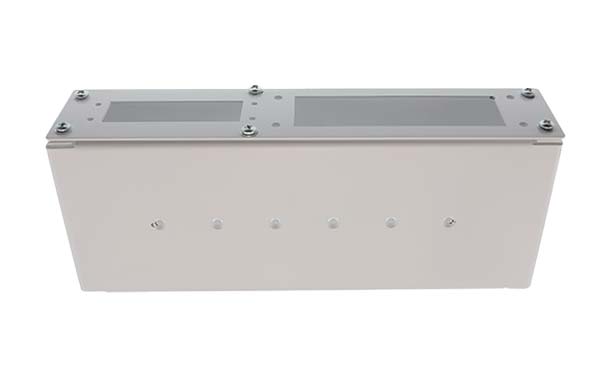

Blank Terminal Mounting Boxes
PCS Company's Blank Terminal Mounting Boxes are an economical and convenient way to mount power and thermocouple connectors to a hot runner system or mold. Made of heavy gauge steel and powder coated (5-12 zones) for years of protection in a molding environment. All blank terminal mounting boxes are pre-cut and pre-drilled for easy installation. The panels on the mounting boxes utilized a bolted construction making access to wiring convenient. Connectors sold seperately.
| Item Number | Style | Zones | X Box Length | Y Box Width | H Box Height | M1 | M2 | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| VC-12TB | PCS/DME | 12 | 10.53 | 2.4 | 4 | 1.5 | 9.93 | $57.84 | ||
| VC-2TB | PCS/DME | 2 | 4 | 2.4 | 4 | 1.5 | 3.42 | $61.80 | ||
| VC-5TB | PCS/DME | 5 | 8.66 | 2.4 | 4 | 1.5 | 8.01 | $49.12 | ||
| VC-8TB | PCS/DME | 8 | 9.47 | 2.4 | 4 | 1.5 | 8.87 | $54.67 |
