- Width and length of wearstrip determines hole pattern regardless of thickness
- Greaseless applications
- Protects mold from damage due to high wear conditions

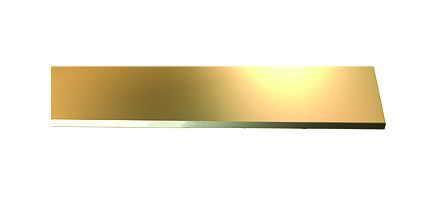

Standard Wear Strips
Self-Lubricating Solid Bronze Wear Strip is used to reduce wear and give added support to moving components within a mold. PCS Self-Lubricating Solid Bronze Wear Strip is available in many thickness, width and length combinations.
| Item Number | Length | Width | Thickness | Mounting Type | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 212-32 | 4 | 1.5 | 0.25 | Drilled | $69.56 | ||
| 212-32G | 4 | 1.5 | 0.25 | Drilled | $87.80 | ||
| 212-32N | 4 | 1.5 | 0.25 | Not Drilled | $56.93 | ||
| 212-32NG | 4 | 1.5 | 0.25 | Not Drilled | $71.41 | ||
| 212-40G | 5 | 1.5 | 0.25 | Drilled | $92.48 | ||
| 212-40N | 5 | 1.5 | 0.25 | Not Drilled | $59.86 | ||
| 212-40NG | 5 | 1.5 | 0.25 | Not Drilled | $74.74 | ||
| 212-48G | 6 | 1.5 | 0.25 | Drilled | $96.56 | ||
| 212-48N | 6 | 1.5 | 0.25 | Not Drilled | $62.95 | ||
| 212-48NG | 6 | 1.5 | 0.25 | Not Drilled | $78.68 | ||
| 212-64G | 8 | 1.5 | 0.25 | Drilled | $105.13 | ||
| 212-64N | 8 | 1.5 | 0.25 | Not Drilled | $69.01 | ||
| 212-64NG | 8 | 1.5 | 0.25 | Not Drilled | $85.81 | ||
| 212-80G | 10 | 1.5 | 0.25 | Drilled | $114.06 | ||
| 212-80N | 10 | 1.5 | 0.25 | Not Drilled | $75.05 | ||
| 212-80NG | 10 | 1.5 | 0.25 | Not Drilled | $93.18 | ||
| 212-96 | 12 | 1.5 | 0.25 | Drilled | $98.45 | ||
| 212-96N | 12 | 1.5 | 0.25 | Not Drilled | $81.07 | ||
| 216-32G | 4 | 2 | 0.25 | Drilled | $94.38 | ||
| 216-32N | 4 | 2 | 0.25 | Not Drilled | $61.32 | ||
| 216-32NG | 4 | 2 | 0.25 | Not Drilled | $78.01 | ||
| 216-40G | 5 | 2 | 0.25 | Drilled | $101.00 | ||
| 216-40N | 5 | 2 | 0.25 | Not Drilled | $65.26 | ||
| 216-40NG | 5 | 2 | 0.25 | Not Drilled | $83.17 | ||
| 216-48G | 6 | 2 | 0.25 | Drilled | $105.47 | ||
| 216-48N | 6 | 2 | 0.25 | Not Drilled | $69.11 | ||
| 216-64 | 8 | 2 | 0.25 | Drilled | $91.97 | ||
| 216-64G | 8 | 2 | 0.25 | Drilled | $117.00 | ||
| 216-64N | 8 | 2 | 0.25 | Not Drilled | $77.00 | ||
| 216-64NG | 8 | 2 | 0.25 | Not Drilled | $97.56 | ||
| 216-80 | 10 | 2 | 0.25 | Drilled | $101.00 | ||
| 216-80G | 10 | 2 | 0.25 | Drilled | $127.99 | ||
| 216-80N | 10 | 2 | 0.25 | Not Drilled | $84.82 | ||
| 216-80NG | 10 | 2 | 0.25 | Not Drilled | $107.14 | ||
| 216-96 | 12 | 2 | 0.25 | Drilled | $109.88 | ||
| 216-96G | 12 | 2 | 0.25 | Drilled | $139.19 | ||
| 216-96N | 12 | 2 | 0.25 | Not Drilled | $92.48 | ||
| 216-96NG | 12 | 2 | 0.25 | Not Drilled | $116.78 | ||
| 220-32 | 4 | 2.5 | 0.25 | Drilled | $78.34 | ||
| 220-32G | 4 | 2.5 | 0.25 | Drilled | $98.89 | ||
| 220-32N | 4 | 2.5 | 0.25 | Not Drilled | $65.71 | ||
| 220-32NG | 4 | 2.5 | 0.25 | Not Drilled | $82.63 | ||
| 220-40 | 5 | 2.5 | 0.25 | Drilled | $84.28 | ||
| 220-40G | 5 | 2.5 | 0.25 | Drilled | $106.34 | ||
| 220-40N | 5 | 2.5 | 0.25 | Not Drilled | $70.44 | ||
| 220-40NG | 5 | 2.5 | 0.25 | Not Drilled | $88.56 | ||
| 220-48NG | 6 | 2.5 | 0.25 | Not Drilled | $93.47 | ||
| 220-64 | 8 | 2.5 | 0.25 | Drilled | $99.78 | ||
| 220-64G | 8 | 2.5 | 0.25 | Drilled | $124.06 | ||
| 220-64N | 8 | 2.5 | 0.25 | Not Drilled | $84.82 | ||
| 220-64NG | 8 | 2.5 | 0.25 | Not Drilled | $104.72 | ||
| 220-80G | 10 | 2.5 | 0.25 | Drilled | $130.19 | ||
| 220-80N | 10 | 2.5 | 0.25 | Not Drilled | $94.38 | ||
| 220-80NG | 10 | 2.5 | 0.25 | Not Drilled | $109.31 | ||
| 220-96 | 12 | 2.5 | 0.25 | Drilled | $121.20 | ||
| 220-96G | 12 | 2.5 | 0.25 | Drilled | $147.90 | ||
| 220-96N | 12 | 2.5 | 0.25 | Not Drilled | $103.83 | ||
| 220-96NG | 12 | 2.5 | 0.25 | Not Drilled | $125.48 | ||
| 224-32 | 4 | 3 | 0.25 | Drilled | $85.14 | ||
| 224-32G | 4 | 3 | 0.25 | Drilled | $107.44 | ||
| 224-32N | 4 | 3 | 0.25 | Not Drilled | $70.11 | ||
| 224-32NG | 4 | 3 | 0.25 | Not Drilled | $88.12 | ||
| 224-40 | 5 | 3 | 0.25 | Drilled | $90.73 | ||
| 224-40N | 5 | 3 | 0.25 | Not Drilled | $75.81 | ||
| 224-40NG | 5 | 3 | 0.25 | Not Drilled | $91.74 | ||
| 224-48 | 6 | 3 | 0.25 | Drilled | $96.48 | ||
| 224-48N | 6 | 3 | 0.25 | Not Drilled | $81.43 | ||
| 224-48NG | 6 | 3 | 0.25 | Not Drilled | $98.76 | ||
| 224-64 | 8 | 3 | 0.25 | Drilled | $110.09 | ||
| 224-64G | 8 | 3 | 0.25 | Drilled | $133.90 | ||
| 224-64N | 8 | 3 | 0.25 | Not Drilled | $92.72 | ||
| 224-64NG | 8 | 3 | 0.25 | Not Drilled | $111.52 | ||
| 224-80 | 10 | 3 | 0.25 | Drilled | $121.41 | ||
| 224-80N | 10 | 3 | 0.25 | Not Drilled | $104.06 | ||
| 224-80NG | 10 | 3 | 0.25 | Not Drilled | $129.65 | ||
| 224-96G | 12 | 3 | 0.25 | Drilled | $162.72 | ||
| 224-96N | 12 | 3 | 0.25 | Not Drilled | $115.36 | ||
| 224-96NG | 12 | 3 | 0.25 | Not Drilled | $137.32 | ||
| 232-32G | 4 | 4 | 0.25 | Drilled | $114.58 | ||
| 232-32N | 4 | 4 | 0.25 | Not Drilled | $79.01 | ||
| 232-32NG | 4 | 4 | 0.25 | Not Drilled | $95.14 | ||
| 232-40 | 5 | 4 | 0.25 | Drilled | $101.38 | ||
| 232-40G | 5 | 4 | 0.25 | Drilled | $122.63 | ||
| 232-40N | 5 | 4 | 0.25 | Not Drilled | $86.37 | ||
| 232-40NG | 5 | 4 | 0.25 | Not Drilled | $103.29 | ||
| 232-48 | 6 | 4 | 0.25 | Drilled | $108.79 | ||
| 232-48G | 6 | 4 | 0.25 | Drilled | $131.26 | ||
| 232-48N | 6 | 4 | 0.25 | Not Drilled | $93.83 | ||
| 232-48NG | 6 | 4 | 0.25 | Not Drilled | $111.95 | ||
| 232-64G | 8 | 4 | 0.25 | Drilled | $150.84 | ||
| 232-64N | 8 | 4 | 0.25 | Not Drilled | $108.65 | ||
| 232-64NG | 8 | 4 | 0.25 | Not Drilled | $128.44 | ||
| 232-80 | 10 | 4 | 0.25 | Drilled | $140.83 | ||
| 232-80G | 10 | 4 | 0.25 | Drilled | $168.18 | ||
| 232-80N | 10 | 4 | 0.25 | Not Drilled | $123.49 | ||
| 232-80NG | 10 | 4 | 0.25 | Not Drilled | $145.80 | ||
| 232-96 | 12 | 4 | 0.25 | Drilled | $157.98 | ||
| 232-96G | 12 | 4 | 0.25 | Drilled | $187.00 | ||
| 232-96N | 12 | 4 | 0.25 | Not Drilled | $138.32 | ||
| 232-96NG | 12 | 4 | 0.25 | Not Drilled | $161.70 | ||
| 28-32G | 4 | 1 | 0.25 | Drilled | $82.96 | ||
| 28-32N | 4 | 1 | 0.25 | Not Drilled | $52.64 | ||
| 28-40G | 5 | 1 | 0.25 | Drilled | $85.73 | ||
| 28-40N | 5 | 1 | 0.25 | Not Drilled | $54.72 | ||
| 28-48 | 6 | 1 | 0.25 | Drilled | $70.76 | ||
| 28-48G | 6 | 1 | 0.25 | Drilled | $89.32 | ||
| 28-48N | 6 | 1 | 0.25 | Not Drilled | $56.93 | ||
| 28-48NG | 6 | 1 | 0.25 | Not Drilled | $71.50 | ||
| 28-64 | 8 | 1 | 0.25 | Drilled | $76.26 | ||
| 28-64G | 8 | 1 | 0.25 | Drilled | $94.61 | ||
| 28-64N | 8 | 1 | 0.25 | Not Drilled | $61.21 | ||
| 28-64NG | 8 | 1 | 0.25 | Not Drilled | $75.26 | ||
| 28-80 | 10 | 1 | 0.25 | Drilled | $81.73 | ||
| 28-80G | 10 | 1 | 0.25 | Drilled | $100.54 | ||
| 28-80N | 10 | 1 | 0.25 | Not Drilled | $65.51 | ||
| 28-96 | 12 | 1 | 0.25 | Drilled | $87.14 | ||
| 28-96G | 12 | 1 | 0.25 | Drilled | $109.99 | ||
| 28-96N | 12 | 1 | 0.25 | Not Drilled | $69.88 | ||
| 28-96NG | 12 | 1 | 0.25 | Not Drilled | $89.55 | ||
| 312-32 | 4 | 1.5 | 0.375 | Drilled | $73.85 | ||
| 312-32N | 4 | 1.5 | 0.375 | Not Drilled | $60.54 | ||
| 312-32NG | 4 | 1.5 | 0.375 | Not Drilled | $87.68 | ||
| 312-40N | 5 | 1.5 | 0.375 | Not Drilled | $64.36 | ||
| 312-48 | 6 | 1.5 | 0.375 | Drilled | $83.08 | ||
| 312-48N | 6 | 1.5 | 0.375 | Not Drilled | $68.34 | ||
| 312-48NG | 6 | 1.5 | 0.375 | Not Drilled | $101.96 | ||
| 312-64 | 8 | 1.5 | 0.375 | Drilled | $92.28 | ||
| 312-64G | 8 | 1.5 | 0.375 | Drilled | $131.52 | ||
| 312-64N | 8 | 1.5 | 0.375 | Not Drilled | $76.04 | ||
| 312-64NG | 8 | 1.5 | 0.375 | Not Drilled | $126.47 | ||
| 312-80G | 10 | 1.5 | 0.375 | Drilled | $147.33 | ||
| 312-96G | 12 | 1.5 | 0.375 | Drilled | $163.93 | ||
| 316-32 | 4 | 2 | 0.375 | Drilled | $79.43 | ||
| 316-32N | 4 | 2 | 0.375 | Not Drilled | $66.14 | ||
| 316-32NG | 4 | 2 | 0.375 | Not Drilled | $99.78 | ||
| 316-40 | 5 | 2 | 0.375 | Drilled | $86.04 | ||
| 316-40N | 5 | 2 | 0.375 | Not Drilled | $71.19 | ||
| 316-40NG | 5 | 2 | 0.375 | Not Drilled | $109.56 | ||
| 316-48 | 6 | 2 | 0.375 | Drilled | $91.00 | ||
| 316-48G | 6 | 2 | 0.375 | Drilled | $132.16 | ||
| 316-48N | 6 | 2 | 0.375 | Not Drilled | $76.17 | ||
| 316-64 | 8 | 2 | 0.375 | Drilled | $102.52 | ||
| 316-64G | 8 | 2 | 0.375 | Drilled | $153.03 | ||
| 316-64N | 8 | 2 | 0.375 | Not Drilled | $86.24 | ||
| 316-64NG | 8 | 2 | 0.375 | Not Drilled | $136.70 | ||
| 316-80G | 10 | 2 | 0.375 | Drilled | $171.92 | ||
| 316-80N | 10 | 2 | 0.375 | Not Drilled | $96.25 | ||
| 316-80NG | 10 | 2 | 0.375 | Not Drilled | $154.13 | ||
| 316-96 | 12 | 2 | 0.375 | Drilled | $125.58 | ||
| 316-96N | 12 | 2 | 0.375 | Not Drilled | $106.24 | ||
| 316-96NG | 12 | 2 | 0.375 | Not Drilled | $172.58 | ||
| 320-32 | 4 | 2.5 | 0.375 | Drilled | $84.82 | ||
| 320-32G | 4 | 2.5 | 0.375 | Drilled | $119.56 | ||
| 320-32N | 4 | 2.5 | 0.375 | Not Drilled | $71.41 | ||
| 320-32NG | 4 | 2.5 | 0.375 | Not Drilled | $106.24 | ||
| 320-40G | 5 | 2.5 | 0.375 | Drilled | $132.16 | ||
| 320-40N | 5 | 2.5 | 0.375 | Not Drilled | $77.59 | ||
| 320-40NG | 5 | 2.5 | 0.375 | Not Drilled | $117.35 | ||
| 320-48 | 6 | 2.5 | 0.375 | Drilled | $98.55 | ||
| 320-48NG | 6 | 2.5 | 0.375 | Not Drilled | $125.48 | ||
| 320-64 | 8 | 2.5 | 0.375 | Drilled | $112.20 | ||
| 320-64N | 8 | 2.5 | 0.375 | Not Drilled | $95.91 | ||
| 320-64NG | 8 | 2.5 | 0.375 | Not Drilled | $145.57 | ||
| 320-80G | 10 | 2.5 | 0.375 | Drilled | $166.02 | ||
| 320-80N | 10 | 2.5 | 0.375 | Not Drilled | $108.11 | ||
| 320-96G | 12 | 2.5 | 0.375 | Drilled | $200.17 | ||
| 320-96N | 12 | 2.5 | 0.375 | Not Drilled | $120.32 | ||
| 324-24NG | 4 | 2.5 | 0.375 | Not Drilled | $141.06 | ||
| 324-32 | 4 | 3 | 0.375 | Drilled | $93.27 | ||
| 324-32G | 4 | 3 | 0.375 | Drilled | $133.28 | ||
| 324-32N | 4 | 3 | 0.375 | Not Drilled | $77.00 | ||
| 324-32NG | 4 | 3 | 0.375 | Not Drilled | $119.96 | ||
| 324-40 | 5 | 3 | 0.375 | Drilled | $100.67 | ||
| 324-40N | 5 | 3 | 0.375 | Not Drilled | $84.28 | ||
| 324-48 | 6 | 3 | 0.375 | Drilled | $107.79 | ||
| 324-48G | 6 | 3 | 0.375 | Drilled | $147.10 | ||
| 324-48N | 6 | 3 | 0.375 | Not Drilled | $91.53 | ||
| 324-48NG | 6 | 3 | 0.375 | Not Drilled | $132.29 | ||
| 324-64G | 8 | 3 | 0.375 | Drilled | $171.05 | ||
| 324-64N | 8 | 3 | 0.375 | Not Drilled | $106.03 | ||
| 324-64NG | 8 | 3 | 0.375 | Not Drilled | $154.82 | ||
| 324-80 | 10 | 3 | 0.375 | Drilled | $139.74 | ||
| 324-80G | 10 | 3 | 0.375 | Drilled | $211.92 | ||
| 324-80N | 10 | 3 | 0.375 | Not Drilled | $120.52 | ||
| 324-80NG | 10 | 3 | 0.375 | Not Drilled | $194.14 | ||
| 324-96 | 12 | 3 | 0.375 | Drilled | $157.22 | ||
| 324-96G | 12 | 3 | 0.375 | Drilled | $219.92 | ||
| 324-96N | 12 | 3 | 0.375 | Not Drilled | $134.91 | ||
| 324-96NG | 12 | 3 | 0.375 | Not Drilled | $200.60 | ||
| 332-32G | 4 | 4 | 0.375 | Drilled | $142.05 | ||
| 332-32N | 4 | 4 | 0.375 | Not Drilled | $88.00 | ||
| 332-32NG | 4 | 4 | 0.375 | Not Drilled | $125.70 | ||
| 332-40 | 5 | 4 | 0.375 | Drilled | $113.69 | ||
| 332-40G | 5 | 4 | 0.375 | Drilled | $156.45 | ||
| 332-40N | 5 | 4 | 0.375 | Not Drilled | $97.45 | ||
| 332-40NG | 5 | 4 | 0.375 | Not Drilled | $140.19 | ||
| 332-48 | 6 | 4 | 0.375 | Drilled | $123.16 | ||
| 332-48G | 6 | 4 | 0.375 | Drilled | $172.94 | ||
| 332-48N | 6 | 4 | 0.375 | Not Drilled | $106.91 | ||
| 332-48NG | 6 | 4 | 0.375 | Not Drilled | $156.65 | ||
| 332-64G | 8 | 4 | 0.375 | Drilled | $205.75 | ||
| 332-64N | 8 | 4 | 0.375 | Not Drilled | $125.90 | ||
| 332-64NG | 8 | 4 | 0.375 | Not Drilled | $186.54 | ||
| 332-80 | 10 | 4 | 0.375 | Drilled | $164.03 | ||
| 332-80N | 10 | 4 | 0.375 | Not Drilled | $144.79 | ||
| 332-80NG | 10 | 4 | 0.375 | Not Drilled | $219.39 | ||
| 332-96 | 12 | 4 | 0.375 | Drilled | $186.01 | ||
| 332-96G | 12 | 4 | 0.375 | Drilled | $269.59 | ||
| 332-96N | 12 | 4 | 0.375 | Not Drilled | $163.80 | ||
| 332-96NG | 12 | 4 | 0.375 | Not Drilled | $247.42 | ||
| 38-32N | 4 | 1 | 0.375 | Not Drilled | $54.97 | ||
| 38-32NG | 4 | 1 | 0.375 | Not Drilled | $77.46 | ||
| 38-40N | 5 | 1 | 0.375 | Not Drilled | $57.69 | ||
| 38-48N | 6 | 1 | 0.375 | Not Drilled | $60.45 | ||
| 38-48NG | 6 | 1 | 0.375 | Not Drilled | $89.32 | ||
| 38-64G | 8 | 1 | 0.375 | Drilled | $110.09 | ||
| 38-64NG | 8 | 1 | 0.375 | Not Drilled | $93.83 | ||
| 38-80G | 10 | 1 | 0.375 | Drilled | $118.88 | ||
| 38-80N | 10 | 1 | 0.375 | Not Drilled | $71.26 | ||
| 38-80NG | 10 | 1 | 0.375 | Not Drilled | $99.22 | ||
| 38-96N | 12 | 1 | 0.375 | Not Drilled | $76.70 | ||
| 38-96NG | 12 | 1 | 0.375 | Not Drilled | $121.52 | ||
| 412-24 | 3 | 1.5 | 0.5 | Drilled | $73.41 | ||
| 412-24N | 3 | 1.5 | 0.5 | Not Drilled | $59.44 | ||
| 412-24NG | 3 | 1.5 | 0.5 | Not Drilled | $83.69 | ||
| 412-32N | 4 | 1.5 | 0.5 | Not Drilled | $64.16 | ||
| 412-32NG | 4 | 1.5 | 0.5 | Not Drilled | $91.89 | ||
| 412-40N | 5 | 1.5 | 0.5 | Not Drilled | $68.78 | ||
| 412-48G | 6 | 1.5 | 0.5 | Drilled | $122.82 | ||
| 412-48N | 6 | 1.5 | 0.5 | Not Drilled | $73.53 | ||
| 412-64N | 8 | 1.5 | 0.5 | Not Drilled | $82.85 | ||
| 412-64NG | 8 | 1.5 | 0.5 | Not Drilled | $134.26 | ||
| 412-80N | 10 | 1.5 | 0.5 | Not Drilled | $92.19 | ||
| 412-96N | 12 | 1.5 | 0.5 | Not Drilled | $101.63 | ||
| 416-24 | 3 | 2 | 0.5 | Drilled | $79.01 | ||
| 416-24G | 3 | 2 | 0.5 | Drilled | $107.14 | ||
| 416-24N | 3 | 2 | 0.5 | Not Drilled | $65.04 | ||
| 416-32 | 4 | 2 | 0.5 | Drilled | $85.26 | ||
| 416-32N | 4 | 2 | 0.5 | Not Drilled | $71.30 | ||
| 416-40 | 5 | 2 | 0.5 | Drilled | $93.27 | ||
| 416-40N | 5 | 2 | 0.5 | Not Drilled | $77.46 | ||
| 416-48 | 6 | 2 | 0.5 | Drilled | $99.41 | ||
| 416-48G | 6 | 2 | 0.5 | Drilled | $140.54 | ||
| 416-48N | 6 | 2 | 0.5 | Not Drilled | $83.63 | ||
| 416-64 | 8 | 2 | 0.5 | Drilled | $113.60 | ||
| 416-64N | 8 | 2 | 0.5 | Not Drilled | $96.02 | ||
| 416-64NG | 8 | 2 | 0.5 | Not Drilled | $146.47 | ||
| 416-80 | 10 | 2 | 0.5 | Drilled | $127.76 | ||
| 416-80N | 10 | 2 | 0.5 | Not Drilled | $108.33 | ||
| 416-96 | 12 | 2 | 0.5 | Drilled | $141.95 | ||
| 416-96G | 12 | 2 | 0.5 | Drilled | $208.30 | ||
| 416-96N | 12 | 2 | 0.5 | Not Drilled | $120.76 | ||
| 420-24G | 3 | 2.5 | 0.5 | Drilled | $119.61 | ||
| 420-24N | 3 | 2.5 | 0.5 | Not Drilled | $70.24 | ||
| 420-320NG | 4 | 2.5 | 0.5 | Not Drilled | $662.93 | ||
| 420-32G | 4 | 2.5 | 0.5 | Drilled | $126.47 | ||
| 420-32N | 4 | 2.5 | 0.5 | Not Drilled | $77.66 | ||
| 420-40N | 5 | 2.5 | 0.5 | Not Drilled | $85.26 | ||
| 420-40NG | 5 | 2.5 | 0.5 | Not Drilled | $127.91 | ||
| 420-48N | 6 | 2.5 | 0.5 | Not Drilled | $92.84 | ||
| 420-64G | 8 | 2.5 | 0.5 | Drilled | $175.11 | ||
| 420-64N | 8 | 2.5 | 0.5 | Not Drilled | $107.88 | ||
| 420-64NG | 8 | 2.5 | 0.5 | Not Drilled | $157.54 | ||
| 420-80 | 10 | 2.5 | 0.5 | Drilled | $142.38 | ||
| 420-80N | 10 | 2.5 | 0.5 | Not Drilled | $122.95 | ||
| 420-96 | 12 | 2.5 | 0.5 | Drilled | $159.19 | ||
| 420-96N | 12 | 2.5 | 0.5 | Not Drilled | $137.98 | ||
| 424-24 | 3 | 3 | 0.5 | Drilled | $93.05 | ||
| 424-24G | 3 | 3 | 0.5 | Drilled | $125.77 | ||
| 424-24N | 3 | 3 | 0.5 | Not Drilled | $75.49 | ||
| 424-32 | 4 | 3 | 0.5 | Drilled | $102.03 | ||
| 424-32N | 4 | 3 | 0.5 | Not Drilled | $84.48 | ||
| 424-40 | 5 | 3 | 0.5 | Drilled | $110.95 | ||
| 424-40N | 5 | 3 | 0.5 | Not Drilled | $93.47 | ||
| 424-40NG | 5 | 3 | 0.5 | Not Drilled | $128.20 | ||
| 424-48 | 6 | 3 | 0.5 | Drilled | $119.96 | ||
| 424-48G | 6 | 3 | 0.5 | Drilled | $160.72 | ||
| 424-48N | 6 | 3 | 0.5 | Not Drilled | $102.39 | ||
| 424-64 | 8 | 3 | 0.5 | Drilled | $141.50 | ||
| 424-64G | 8 | 3 | 0.5 | Drilled | $190.29 | ||
| 424-64N | 8 | 3 | 0.5 | Not Drilled | $120.32 | ||
| 424-80G | 10 | 3 | 0.5 | Drilled | $233.02 | ||
| 424-96G | 12 | 3 | 0.5 | Drilled | $246.64 | ||
| 424-96NG | 12 | 3 | 0.5 | Not Drilled | $221.81 | ||
| 432-32 | 4 | 4 | 0.5 | Drilled | $115.36 | ||
| 432-32G | 4 | 4 | 0.5 | Drilled | $153.15 | ||
| 432-32N | 4 | 4 | 0.5 | Not Drilled | $97.78 | ||
| 432-40N | 5 | 4 | 0.5 | Not Drilled | $109.56 | ||
| 432-48 | 6 | 4 | 0.5 | Drilled | $138.89 | ||
| 432-48N | 6 | 4 | 0.5 | Not Drilled | $121.27 | ||
| 432-48NG | 6 | 4 | 0.5 | Not Drilled | $170.97 | ||
| 432-64 | 8 | 4 | 0.5 | Drilled | $165.89 | ||
| 432-64G | 8 | 4 | 0.5 | Drilled | $226.53 | ||
| 432-64NG | 8 | 4 | 0.5 | Not Drilled | $205.33 | ||
| 432-80 | 10 | 4 | 0.5 | Drilled | $189.41 | ||
| 432-80G | 10 | 4 | 0.5 | Drilled | $260.36 | ||
| 432-80N | 10 | 4 | 0.5 | Not Drilled | $168.18 | ||
| 432-80NG | 10 | 4 | 0.5 | Not Drilled | $242.79 | ||
| 432-96 | 12 | 4 | 0.5 | Drilled | $216.53 | ||
| 432-96N | 12 | 4 | 0.5 | Not Drilled | $191.69 | ||
| 432-96NG | 12 | 4 | 0.5 | Not Drilled | $275.32 | ||
| 512-24 | 3 | 1.5 | 0.625 | Drilled | $77.00 | ||
| 512-24N | 3 | 1.5 | 0.625 | Not Drilled | $62.41 | ||
| 512-32 | 4 | 1.5 | 0.625 | Drilled | $82.63 | ||
| 512-32N | 4 | 1.5 | 0.625 | Not Drilled | $68.00 | ||
| 512-40N | 5 | 1.5 | 0.625 | Not Drilled | $73.62 | ||
| 512-48N | 6 | 1.5 | 0.625 | Not Drilled | $79.20 | ||
| 512-48NG | 6 | 1.5 | 0.625 | Not Drilled | $112.85 | ||
| 512-64N | 8 | 1.5 | 0.625 | Not Drilled | $90.31 | ||
| 512-80N | 10 | 1.5 | 0.625 | Not Drilled | $101.51 | ||
| 512-96N | 12 | 1.5 | 0.625 | Not Drilled | $112.62 | ||
| 516-24N | 3 | 2 | 0.625 | Not Drilled | $68.78 | ||
| 516-32N | 4 | 2 | 0.625 | Not Drilled | $76.04 | ||
| 516-40N | 5 | 2 | 0.625 | Not Drilled | $83.31 | ||
| 516-48NG | 6 | 2 | 0.625 | Not Drilled | $131.63 | ||
| 516-64G | 8 | 2 | 0.625 | Drilled | $174.46 | ||
| 516-80N | 10 | 2 | 0.625 | Not Drilled | $119.61 | ||
| 516-96NG | 12 | 2 | 0.625 | Not Drilled | $192.17 | ||
| 524-32N | 4 | 3 | 0.625 | Not Drilled | $91.74 | ||
| 524-40NG | 5 | 3 | 0.625 | Not Drilled | $137.12 | ||
| 532-32G | 4 | 4 | 0.625 | Drilled | $163.93 | ||
| 532-32N | 4 | 4 | 0.625 | Not Drilled | $107.35 | ||
| 532-40N | 5 | 4 | 0.625 | Not Drilled | $121.27 | ||
| 532-40NG | 5 | 4 | 0.625 | Not Drilled | $164.03 | ||
| 532-48N | 6 | 4 | 0.625 | Not Drilled | $135.25 | ||
| 532-64N | 8 | 4 | 0.625 | Not Drilled | $163.07 | ||
| 532-80N | 10 | 4 | 0.625 | Not Drilled | $190.94 |
