- Provide initial alignment of cavity and core halves
- Press-Fit installation
- Tolerances allow for mating with any standard PCS bushings
- Case hardended steel
- Unit of Measure - Inch

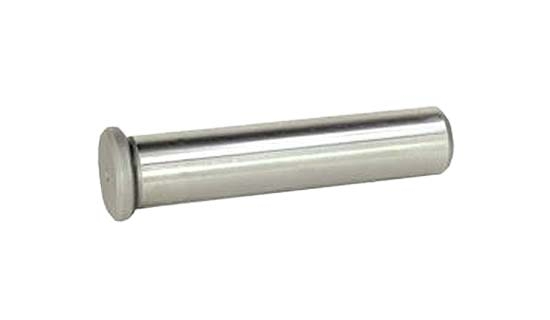

Straight Leader Pins - Standard
Leader Pins provide initial alignment of cavity and core halves. PCS Standard Straight Leader Pins are manufactured from 4150 steel. These leader pins can be used with PCS standard bushings.
| Item Number | Actual Pin Diameter | D Nominal Pin Diameter | H Head Diameter | L Overall Length | PF Press Fit Diameter | PFL Press Fit Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 100-GL | 0.749 | 0.75 | 0.99 | 1-3/4 | 0.751 | 7/8 | $11.70 | ||
| 101-GL | 0.749 | 0.75 | 0.99 | 2-1/4 | 0.751 | 7/8 | $12.31 | ||
| 102-GL | 0.749 | 0.75 | 0.99 | 2-3/4 | 0.751 | 7/8 | $12.74 | ||
| 103-GL | 0.749 | 0.75 | 0.99 | 3-1/4 | 0.751 | 7/8 | $12.71 | ||
| 104-GL | 0.749 | 0.75 | 0.99 | 3-3/4 | 0.751 | 7/8 | $13.02 | ||
| 105-GL | 0.749 | 0.75 | 0.99 | 4-1/4 | 0.751 | 1-1/4 | $13.34 | ||
| 106-GL | 0.749 | 0.75 | 0.99 | 4-3/4 | 0.751 | 1-1/4 | $13.78 | ||
| 107-GL | 0.749 | 0.75 | 0.99 | 5-1/4 | 0.751 | 1-1/4 | $14.35 | ||
| 108-GL | 0.749 | 0.75 | 0.99 | 5-3/4 | 0.751 | 1-1/4 | $14.66 | ||
| 109-GL | 0.749 | 0.75 | 0.99 | 6-1/4 | 0.751 | 1-1/4 | $14.97 | ||
| 110-GL | 0.749 | 0.75 | 0.99 | 6-3/4 | 0.751 | 1-1/4 | $15.35 | ||
| 111-GL | 0.749 | 0.75 | 0.99 | 7-1/4 | 0.751 | 1-1/4 | $15.65 | ||
| 112-GL | 0.749 | 0.75 | 0.99 | 7-3/4 | 0.751 | 1-1/4 | $15.98 | ||
| 113-GL | 0.749 | 0.75 | 0.99 | 8-1/4 | 0.751 | 1-1/4 | $12.91 | ||
| 114-GL | 0.749 | 0.75 | 0.99 | 8-3/4 | 0.751 | 1-1/4 | $13.14 | ||
| 115-GL | 0.749 | 0.75 | 0.99 | 9-1/4 | 0.751 | 1-1/4 | $16.89 | ||
| 116-GL | 0.749 | 0.75 | 0.99 | 9-3/4 | 0.751 | 1-1/4 | $13.63 | ||
| 117-GL | 0.749 | 0.75 | 0.99 | 10-1/4 | 0.751 | 1-1/4 | $13.88 | ||
| 118-GL | 0.749 | 0.75 | 0.99 | 10-3/4 | 0.751 | 1-1/4 | $14.13 | ||
| 200-GL | 0.874 | 0.875 | 1.115 | 1-3/4 | 0.876 | 7/8 | $12.25 | ||
| 201-GL | 0.874 | 0.875 | 1.115 | 2-1/4 | 0.876 | 7/8 | $12.71 | ||
| 202-GL | 0.874 | 0.875 | 1.115 | 2-3/4 | 0.876 | 7/8 | $13.02 | ||
| 203-GL | 0.874 | 0.875 | 1.115 | 3-1/4 | 0.876 | 7/8 | $13.64 | ||
| 204-GL | 0.874 | 0.875 | 1.115 | 3-3/4 | 0.876 | 7/8 | $14.18 | ||
| 205-GL | 0.874 | 0.875 | 1.115 | 4-1/4 | 0.876 | 1-1/4 | $14.66 | ||
| 206-GL | 0.874 | 0.875 | 1.115 | 4-3/4 | 0.876 | 1-1/4 | $14.97 | ||
| 207-GL | 0.874 | 0.875 | 1.115 | 5-1/4 | 0.876 | 1-1/4 | $15.05 | ||
| 208-GL | 0.874 | 0.875 | 1.115 | 5-3/4 | 0.876 | 1-1/4 | $15.98 | ||
| 209-GL | 0.874 | 0.875 | 1.115 | 6-1/4 | 0.876 | 1-1/4 | $16.42 | ||
| 210-GL | 0.874 | 0.875 | 1.115 | 6-3/4 | 0.876 | 1-1/4 | $17.06 | ||
| 211-GL | 0.874 | 0.875 | 1.115 | 7-1/4 | 0.876 | 1-1/4 | $17.36 | ||
| 212-GL | 0.874 | 0.875 | 1.115 | 7-3/4 | 0.876 | 1-1/4 | $17.90 | ||
| 213-GL | 0.874 | 0.875 | 1.115 | 8-1/4 | 0.876 | 1-1/4 | $18.52 | ||
| 214-GL | 0.874 | 0.875 | 1.115 | 8-3/4 | 0.876 | 1-1/4 | $19.38 | ||
| 215-GL | 0.874 | 0.875 | 1.115 | 9-1/4 | 0.876 | 1-1/4 | $16.39 | ||
| 216-GL | 0.874 | 0.875 | 1.115 | 9-3/4 | 0.876 | 1-1/4 | $16.60 | ||
| 217-GL | 0.874 | 0.875 | 1.115 | 10-1/4 | 0.876 | 1-1/4 | $16.27 | ||
| 218-GL | 0.874 | 0.875 | 1.115 | 10-3/4 | 0.876 | 1-1/4 | $20.78 | ||
| 219-GL | 0.874 | 0.875 | 1.115 | 11-1/4 | 0.876 | 1-1/4 | $17.02 | ||
| 220-GL | 0.874 | 0.875 | 1.115 | 11-3/4 | 0.876 | 1-1/4 | $17.49 | ||
| 221-GL | 0.874 | 0.875 | 1.115 | 12-1/4 | 0.876 | 1-1/4 | $22.16 | ||
| 300-GL | 0.999 | 1 | 1.24 | 1-3/4 | 1.001 | 7/8 | $12.71 | ||
| 301-GL | 0.999 | 1 | 1.24 | 2-1/4 | 1.001 | 7/8 | $13.18 | ||
| 302-GL | 0.999 | 1 | 1.24 | 2-3/4 | 1.001 | 7/8 | $13.89 | ||
| 303-GL | 0.999 | 1 | 1.24 | 3-1/4 | 1.001 | 7/8 | $14.66 | ||
| 304-GL | 0.999 | 1 | 1.24 | 3-3/4 | 1.001 | 7/8 | $15.11 | ||
| 305-GL | 0.999 | 1 | 1.24 | 4-1/4 | 1.001 | 1-1/4 | $15.81 | ||
| 306-GL | 0.999 | 1 | 1.24 | 4-3/4 | 1.001 | 1-1/4 | $16.42 | ||
| 307-GL | 0.999 | 1 | 1.24 | 5-1/4 | 1.001 | 1-1/4 | $17.06 | ||
| 308-GL | 0.999 | 1 | 1.24 | 5-3/4 | 1.001 | 1-1/4 | $17.77 | ||
| 309-GL | 0.999 | 1 | 1.24 | 6-1/4 | 1.001 | 1-1/4 | $18.38 | ||
| 310-GL | 0.999 | 1 | 1.24 | 6-3/4 | 1.001 | 1-1/4 | $18.76 | ||
| 311-GL | 0.999 | 1 | 1.24 | 7-1/4 | 1.001 | 1-1/4 | $19.53 | ||
| 312-GL | 0.999 | 1 | 1.24 | 7-3/4 | 1.001 | 1-1/4 | $20.09 | ||
| 313-GL | 0.999 | 1 | 1.24 | 8-1/4 | 1.001 | 1-1/4 | $20.78 | ||
| 314-GL | 0.999 | 1 | 1.24 | 8-3/4 | 1.001 | 1-1/4 | $21.39 | ||
| 315-GL | 0.999 | 1 | 1.24 | 9-1/4 | 1.001 | 1-1/4 | $21.93 | ||
| 316-GL | 0.999 | 1 | 1.24 | 9-3/4 | 1.001 | 1-1/4 | $22.70 | ||
| 317-GL | 0.999 | 1 | 1.24 | 10-1/4 | 1.001 | 1-1/4 | $23.34 | ||
| 318-GL | 0.999 | 1 | 1.24 | 10-3/4 | 1.001 | 1-1/4 | $23.87 | ||
| 319-GL | 0.999 | 1 | 1.24 | 11-1/4 | 1.001 | 1-1/4 | $24.49 | ||
| 320-GL | 0.999 | 1 | 1.24 | 11-3/4 | 1.001 | 1-1/4 | $25.09 | ||
| 321-GL | 0.999 | 1 | 1.24 | 12-1/4 | 1.001 | 1-1/4 | $26.81 | ||
| 402-GL | 1.249 | 1.25 | 1.49 | 2-3/4 | 1.251 | 7/8 | $16.11 | ||
| 403-GL | 1.249 | 1.25 | 1.49 | 3-1/4 | 1.251 | 7/8 | $16.94 | ||
| 404-GL | 1.249 | 1.25 | 1.49 | 3-3/4 | 1.251 | 7/8 | $18.24 | ||
| 405-GL | 1.249 | 1.25 | 1.49 | 4-1/4 | 1.251 | 7/8 | $19.11 | ||
| 406-GL | 1.249 | 1.25 | 1.49 | 4-3/4 | 1.251 | 1-1/4 | $20.15 | ||
| 407-GL | 1.249 | 1.25 | 1.49 | 5-1/4 | 1.251 | 1-1/4 | $21.17 | ||
| 408-GL | 1.249 | 1.25 | 1.49 | 5-3/4 | 1.251 | 1-1/4 | $22.04 | ||
| 409-GL | 1.249 | 1.25 | 1.49 | 6-1/4 | 1.251 | 1-1/4 | $23.13 | ||
| 410-GL | 1.249 | 1.25 | 1.49 | 6-3/4 | 1.251 | 1-1/4 | $24.09 | ||
| 411-GL | 1.249 | 1.25 | 1.49 | 7-1/4 | 1.251 | 1-1/4 | $24.97 | ||
| 412-GL | 1.249 | 1.25 | 1.49 | 7-3/4 | 1.251 | 1-1/4 | $26.05 | ||
| 413-GL | 1.249 | 1.25 | 1.49 | 8-1/4 | 1.251 | 1-1/4 | $27.10 | ||
| 414-GL | 1.249 | 1.25 | 1.49 | 8-3/4 | 1.251 | 1-1/4 | $28.12 | ||
| 415-GL | 1.249 | 1.25 | 1.49 | 9-1/4 | 1.251 | 1-1/4 | $28.98 | ||
| 416-GL | 1.249 | 1.25 | 1.49 | 9-3/4 | 1.251 | 1-1/4 | $30.01 | ||
| 417-GL | 1.249 | 1.25 | 1.49 | 10-1/4 | 1.251 | 1-1/4 | $31.04 | ||
| 418-GL | 1.249 | 1.25 | 1.49 | 10-3/4 | 1.251 | 1-1/4 | $31.99 | ||
| 419-GL | 1.249 | 1.25 | 1.49 | 11-1/4 | 1.251 | 1-1/4 | $33.02 | ||
| 420-GL | 1.249 | 1.25 | 1.49 | 11-3/4 | 1.251 | 1-1/4 | $34.04 | ||
| 421-GL | 1.249 | 1.25 | 1.49 | 12-1/4 | 1.251 | 1-1/4 | $34.99 | ||
| 422-GL | 1.249 | 1.25 | 1.49 | 12-3/4 | 1.251 | 1-1/4 | $42.42 | ||
| 423-GL | 1.249 | 1.25 | 1.49 | 13-3/4 | 1.251 | 1-1/4 | $45.96 | ||
| 424-GL | 1.249 | 1.25 | 1.49 | 14-3/4 | 1.251 | 1-1/4 | $49.28 | ||
| 425-GL | 1.249 | 1.25 | 1.49 | 15-3/4 | 1.251 | 1-1/4 | $52.53 | ||
| 504-GL | 1.499 | 1.5 | 1.74 | 3-3/4 | 1.501 | 1-3/8 | $21.34 | ||
| 505-GL | 1.499 | 1.5 | 1.74 | 4-1/4 | 1.501 | 1-1/4 | $22.99 | ||
| 506-GL | 1.499 | 1.5 | 1.74 | 4-3/4 | 1.501 | 1-1/4 | $24.32 | ||
| 507-GL | 1.499 | 1.5 | 1.74 | 5-1/4 | 1.501 | 1-1/4 | $25.56 | ||
| 508-GL | 1.499 | 1.5 | 1.74 | 5-3/4 | 1.501 | 1-1/4 | $27.10 | ||
| 509-GL | 1.499 | 1.5 | 1.74 | 6-1/4 | 1.501 | 1-1/4 | $28.43 | ||
| 510-GL | 1.499 | 1.5 | 1.74 | 6-3/4 | 1.501 | 1-1/4 | $30.01 | ||
| 512-GL | 1.499 | 1.5 | 1.74 | 7-3/4 | 1.501 | 1-1/4 | $32.87 | ||
| 514-GL | 1.499 | 1.5 | 1.74 | 8-3/4 | 1.501 | 1-1/4 | $35.62 | ||
| 516-GL | 1.499 | 1.5 | 1.74 | 9-3/4 | 1.501 | 1-1/4 | $38.63 | ||
| 518-GL | 1.499 | 1.5 | 1.74 | 10-3/4 | 1.501 | 1-1/4 | $41.38 | ||
| 520-GL | 1.499 | 1.5 | 1.74 | 11-3/4 | 1.501 | 1-1/4 | $44.30 | ||
| 522-GL | 1.499 | 1.5 | 1.74 | 12-3/4 | 1.501 | 1-1/4 | $55.85 | ||
| 523-GL | 1.499 | 1.5 | 1.74 | 13-3/4 | 1.501 | 1-1/4 | $58.76 | ||
| 524-GL | 1.499 | 1.5 | 1.74 | 14-3/4 | 1.501 | 1-1/4 | $63.47 | ||
| 525-GL | 1.499 | 1.5 | 1.74 | 15-3/4 | 1.501 | 1-1/4 | $69.65 | ||
| 608-GL | 1.999 | 2 | 2.24 | 5-3/4 | 2.001 | 1-7/8 | $33.24 | ||
| 610-GL | 1.999 | 2 | 2.24 | 6-3/4 | 2.001 | 1-7/8 | $38.78 | ||
| 612-GL | 1.999 | 2 | 2.24 | 7-3/4 | 2.001 | 1-7/8 | $44.30 | ||
| 614-GL | 1.999 | 2 | 2.24 | 8-3/4 | 2.001 | 1-7/8 | $49.90 | ||
| 616-GL | 1.999 | 2 | 2.24 | 9-3/4 | 2.001 | 1-7/8 | $55.53 | ||
| 618-GL | 1.999 | 2 | 2.24 | 10-3/4 | 2.001 | 1-7/8 | $62.71 | ||
| 620-GL | 1.999 | 2 | 2.24 | 11-3/4 | 2.001 | 1-7/8 | $66.65 | ||
| 622-GL | 1.999 | 2 | 2.24 | 12-3/4 | 2.001 | 1-7/8 | $72.16 | ||
| 623-GL | 1.999 | 2 | 2.24 | 13-3/4 | 2.001 | 1-7/8 | $77.85 | ||
| 624-GL | 1.999 | 2 | 2.24 | 14-3/4 | 2.001 | 1-7/8 | $83.39 | ||
| 625-GL | 1.999 | 2 | 2.24 | 15-3/4 | 2.001 | 1-7/8 | $89.00 | ||
| 628-GL | 1.999 | 2 | 2.24 | 16-3/4 | 2.001 | 2-3/8 | $94.61 | ||
| 630-GL | 1.999 | 2 | 2.24 | 18-3/4 | 2.001 | 2-3/8 | $105.74 | ||
| 708-GL | 2.499 | 2.5 | 2.74 | 5-3/4 | 2.501 | 2-3/8 | $46.22 | ||
| 710-GL | 2.499 | 2.5 | 2.74 | 6-3/4 | 2.501 | 2-3/8 | $54.34 | ||
| 712-GL | 2.499 | 2.5 | 2.74 | 7-3/4 | 2.501 | 2-3/8 | $62.39 | ||
| 714-GL | 2.499 | 2.5 | 2.74 | 8-3/4 | 2.501 | 2-3/8 | $70.44 | ||
| 716-GL | 2.499 | 2.5 | 2.74 | 9-3/4 | 2.501 | 2-3/8 | $77.74 | ||
| 718-GL | 2.499 | 2.5 | 2.74 | 10-3/4 | 2.501 | 2-3/8 | $86.87 | ||
| 720-GL | 2.499 | 2.5 | 2.74 | 11-3/4 | 2.501 | 2-3/8 | $94.53 | ||
| 722-GL | 2.499 | 2.5 | 2.74 | 12-3/4 | 2.501 | 2-3/8 | $101.68 | ||
| 723-GL | 2.499 | 2.5 | 2.74 | 13-3/4 | 2.501 | 2-3/8 | $109.64 | ||
| 724-GL | 2.499 | 2.5 | 2.74 | 14-3/4 | 2.501 | 2-3/8 | $118.77 | ||
| 725-GL | 2.499 | 2.5 | 2.74 | 15-3/4 | 2.501 | 2-3/8 | $126.81 | ||
| 728-GL | 2.499 | 2.5 | 2.74 | 16-3/4 | 2.501 | 2-3/8 | $133.57 | ||
| 730-GL | 2.499 | 2.5 | 2.74 | 18-3/4 | 2.501 | 2-3/8 | $131.97 | ||
| 822-GL | 2.999 | 3 | 3.365 | 12-3/4 | 3.001 | 2-7/8 | $153.87 | ||
| 824-GL | 2.999 | 3 | 3.365 | 14-3/4 | 3.001 | 2-7/8 | $176.79 | ||
| 828-GL | 2.999 | 3 | 3.365 | 16-3/4 | 3.001 | 2-7/8 | $201.54 | ||
| 830-GL | 2.999 | 3 | 3.365 | 18-3/4 | 3.001 | 2-7/8 | $224.82 |
