- 2 Flute Coated Solid Carbide
- AlTiN Coated for longer tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Eliminates rough finish commonly left by typical 4 flute tools

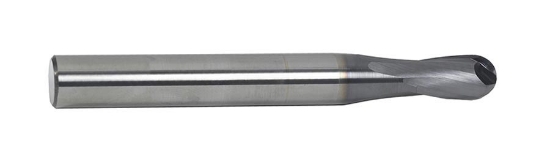

Ball Nose End Mill - Metric
80% Core Metric 2 Flute Coated Solid Carbide End Mills - Ball Nose
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 80-2236P | 6 mm | 18 mm | 100 mm | 6 mm | $35.86 | ||
| 80-2237P | 6 mm | 18 mm | 150 mm | 6 mm | $40.82 | ||
| 80-2315P | 8 mm | 20 mm | 100 mm | 8 mm | $41.39 | ||
| 80-2316P | 8 mm | 20 mm | 150 mm | 8 mm | $49.66 | ||
| 80-2393P | 10 mm | 22 mm | 100 mm | 10 mm | $49.97 | ||
| 80-2394P | 10 mm | 22 mm | 150 mm | 10 mm | $59.05 | ||
| 80-2472P | 12 mm | 25 mm | 100 mm | 12 mm | $67.51 | ||
| 80-2473P | 12 mm | 25 mm | 150 mm | 12 mm | $85.26 |
