- Solid Bronze with graphite plugs
- Perfect for mold alignment
- Perfect for use in Medical or Food grade applications
- Greaseless application
- For use with leader pins
- Reduce friction

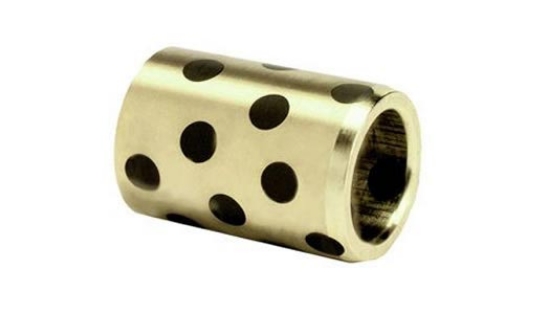

Straight Bushings - Self-Lubricating
PCS Self-Lubricating Straight Bushings are solid bronze with graphite plugs. Nominal diameters ranging from 3/4" to 3" are available. PCS Self-Lubricating Straight Bushings reduce friction on leader pins and are press-fit into place. These bushings do not require grease which makes them great for food-grade, medical and high-speed applications.
| Item Number | Nominal I.D. | D I.D. | A O.D. | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| MS100-10 | 1 | 1.0005 | 1.3755 | 1-1/4 | $51.94 | ||
| MS100-11 | 1 | 1.0005 | 1.3755 | 1-3/8 | $52.98 | ||
| MS100-12 | 1 | 1.0005 | 1.3755 | 1-1/2 | $56.74 | ||
| MS100-14 | 1 | 1.0005 | 1.3755 | 1-3/4 | $61.27 | ||
| MS100-16 | 1 | 1.0005 | 1.3755 | 2 | $66.15 | ||
| MS100-24 | 1 | 1.0005 | 1.3755 | 3 | $85.34 | ||
| MS125-10 | 1-1/4 | 1.2505 | 1.6255 | 1-1/4 | $57.38 | ||
| MS125-11 | 1-1/4 | 1.2505 | 1.6255 | 1-3/8 | $58.42 | ||
| MS125-12 | 1-1/4 | 1.2505 | 1.6255 | 1-1/2 | $58.98 | ||
| MS125-14 | 1-1/4 | 1.2505 | 1.6255 | 1-3/4 | $61.72 | ||
| MS125-15 | 1-1/4 | 1.2505 | 1.6255 | 1-7/8 | $63.17 | ||
| MS125-16 | 1-1/4 | 1.2505 | 1.6255 | 2 | $64.31 | ||
| MS125-24 | 1-1/4 | 1.2505 | 1.6255 | 3 | $78.30 | ||
| MS150-10 | 1-1/2 | 1.5005 | 2.0005 | 1-1/4 | $63.07 | ||
| MS150-11 | 1-1/2 | 1.5005 | 2.0005 | 1-3/8 | $64.13 | ||
| MS150-12 | 1-1/2 | 1.5005 | 2.0005 | 1-1/2 | $65.00 | ||
| MS150-14 | 1-1/2 | 1.5005 | 2.0005 | 1-3/4 | $68.42 | ||
| MS150-15 | 1-1/2 | 1.5005 | 2.0005 | 1-7/8 | $70.94 | ||
| MS150-16 | 1-1/2 | 1.5005 | 2.0005 | 2 | $72.52 | ||
| MS150-24 | 1-1/2 | 1.5005 | 2.0005 | 3 | $89.92 | ||
| MS175-10 | 1-3/4 | 1.7505 | 2.2505 | 1-1/4 | $73.65 | ||
| MS175-12 | 1-3/4 | 1.7505 | 2.2505 | 1-1/2 | $77.51 | ||
| MS175-14 | 1-3/4 | 1.7505 | 2.2505 | 1-3/4 | $81.36 | ||
| MS175-16 | 1-3/4 | 1.7505 | 2.2505 | 2 | $88.77 | ||
| MS175-20 | 1-3/4 | 1.7505 | 2.2505 | 2-1/2 | $98.52 | ||
| MS175-24 | 1-3/4 | 1.7505 | 2.2505 | 3 | $113.98 | ||
| MS175-28 | 1-3/4 | 1.7505 | 2.2505 | 3-1/2 | $125.34 | ||
| MS175-32 | 1-3/4 | 1.7505 | 2.2505 | 4 | $136.69 | ||
| MS200-10 | 2 | 2.0005 | 2.5005 | 1-1/4 | $79.87 | ||
| MS200-12 | 2 | 2.0005 | 2.5005 | 1-1/2 | $86.37 | ||
| MS200-16 | 2 | 2.0005 | 2.5005 | 2 | $94.17 | ||
| MS200-20 | 2 | 2.0005 | 2.5005 | 2-1/2 | $105.01 | ||
| MS200-24 | 2 | 2.0005 | 2.5005 | 3 | $117.49 | ||
| MS200-31 | 2 | 2.0005 | 2.5005 | 3-7/8 | $144.21 | ||
| MS225-12 | 2-1/4 | 2.2505 | 2.7505 | 1-1/2 | $94.11 | ||
| MS225-16 | 2-1/4 | 2.2505 | 2.7505 | 2 | $105.81 | ||
| MS225-20 | 2-1/4 | 2.2505 | 2.7505 | 2-1/2 | $119.67 | ||
| MS225-24 | 2-1/4 | 2.2505 | 2.7505 | 3 | $133.53 | ||
| MS250-12 | 2-1/2 | 2.5005 | 3.2505 | 1-1/2 | $101.84 | ||
| MS250-16 | 2-1/2 | 2.5005 | 3.2505 | 2 | $94.00 | ||
| MS250-24 | 2-1/2 | 2.5005 | 3.2505 | 3 | $149.57 | ||
| MS250-39 | 2-1/2 | 2.5005 | 3.2505 | 4-7/8 | $224.78 | ||
| MS300-16 | 3 | 3.0005 | 3.7505 | 2 | $131.14 | ||
| MS300-20 | 3 | 3.0005 | 3.7505 | 2-1/2 | $148.54 | ||
| MS300-24 | 3 | 3.0005 | 3.7505 | 3 | $168.04 | ||
| MS300-28 | 3 | 3.0005 | 3.7505 | 3-1/2 | $193.86 | ||
| MS300-39 | 3 | 3.0005 | 3.7505 | 4-7/8 | $255.56 | ||
| MS750-11 | 3/4 | 0.7505 | 1.1255 | 1-3/8 | $37.24 | ||
| MS750-12 | 3/4 | 0.7505 | 1.1255 | 1-1/2 | $42.25 | ||
| MS750-7 | 3/4 | 0.7505 | 1.1255 | 7/8 | $34.66 | ||
| MS875-10 | 7/8 | 0.8755 | 1.2505 | 1-1/4 | $37.76 | ||
| MS875-12 | 7/8 | 0.8755 | 1.2505 | 1-1/2 | $55.50 |
