- Mica insulated sealed brass bands
- Low profile clamp bolts
- 1 meter stainless steel armor braids
- Manually adjustable exit leats
- Smooth interior profile to reduce cold spots
- 240v

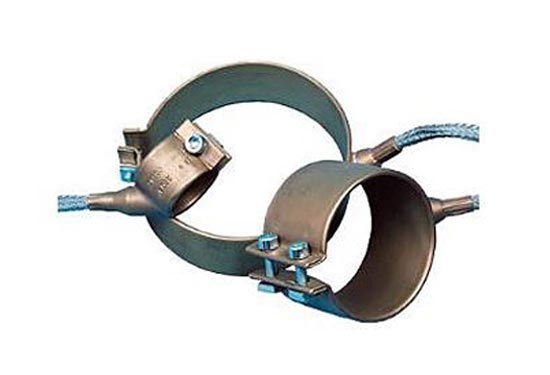

Sealed Brass Nozzle Band Heater
PCS Company's Sealed Brass Nozzle Band Heaters are sized in both inch and metric dimensions. Leads are one meter stainless steel armor braided construction for extra protection. These mica insulated sealed brass heater bands have a smooth internal profile to reduce cold spots.
| Item Number | Diameter (mm) | Diameter (in) | Width (mm) | Width (in) | Watts | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| R252080C | 25 | 1 | 20 | 3/4 | 80 | $28.22 | ||
| R252585C | 25 | 1 | 25 | 1 | 85 | $28.22 | ||
| R2550225C | 25 | 1 | 50 | 2 | 225 | $27.77 | ||
| R352095C | 25 | 1.375 | 20 | 3/4 | 110 | $28.22 | ||
| R3525120C | 35 | 1.375 | 25 | 1 | 120 | $28.22 | ||
| R3530145C | 35 | 1.375 | 30 | 1.1875 | 145 | $28.22 | ||
| R3535170C | 35 | 1.375 | 35 | 1.375 | 170 | $28.22 | ||
| R3540210C | 35 | 1.375 | 40 | 1.5625 | 195 | $28.22 | ||
| R3550265C | 35 | 1.375 | 50 | 2 | 265 | $23.36 | ||
| R3825140C | 35 | 1.5 | 25 | 1 | 140 | $28.22 | ||
| R3830185C | 38 | 1.5 | 30 | 1.1875 | 165 | $28.22 | ||
| R3840175C | 38 | 1.5 | 40 | 1.5625 | 175 | $28.22 | ||
| R3850300C | 38 | 1.5 | 50 | 2 | 300 | $28.22 | ||
| R4025140C | 40 | 1.5625 | 25 | 1 | 140 | $28.22 | ||
| R4030165C | 40 | 1.5625 | 30 | 1.1875 | 165 | $28.22 | ||
| R4040225C | 40 | 1.5625 | 40 | 1.5625 | 225 | $28.22 | ||
| R4045305C | 40 | 1.5625 | 45 | 1.75 | 250 | $29.00 | ||
| R4050345C | 40 | 1.5625 | 50 | 2 | 345 | $29.00 | ||
| R4525155C | 45 | 1.75 | 25 | 1 | 155 | $29.00 | ||
| R4530190C | 45 | 1.75 | 30 | 1.1875 | 190 | $29.00 | ||
| R4540250C | 45 | 1.75 | 40 | 1.5625 | 250 | $29.00 | ||
| R5025175C | 50 | 2 | 25 | 1 | 175 | $29.00 | ||
| R5035245C | 50 | 2 | 35 | 1.375 | 245 | $29.00 | ||
| R5040280C | 50 | 2 | 40 | 1.5625 | 280 | $29.00 | ||
| R5050350C | 50 | 2 | 50 | 2 | 350 | $29.00 | ||
| R5550385C | 55 | 2.1875 | 50 | 2 | 385 | $29.00 | ||
| R6030250C | 60 | 2.375 | 30 | 1.1875 | 250 | $31.48 | ||
| R6035295C | 60 | 2.375 | 35 | 1.375 | 295 | $31.48 | ||
| R6040335C | 60 | 2.375 | 40 | 1.5625 | 335 | $31.48 | ||
| R6050475C | 60 | 2.375 | 50 | 2 | 420 | $31.48 | ||
| R7530340C | 75 | 3 | 30 | 1.1875 | 340 | $46.43 | ||
| R7550590C | 75 | 3 | 50 | 2 | 525 | $46.43 |
