Standard Mold End Connectors

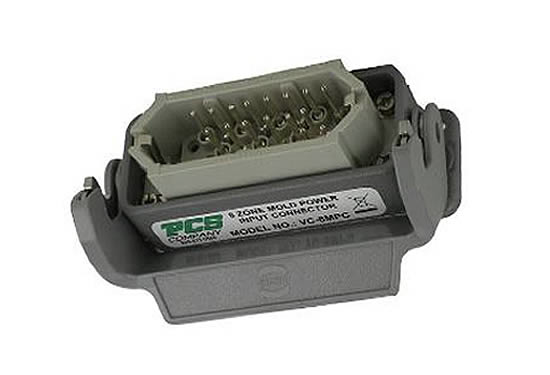

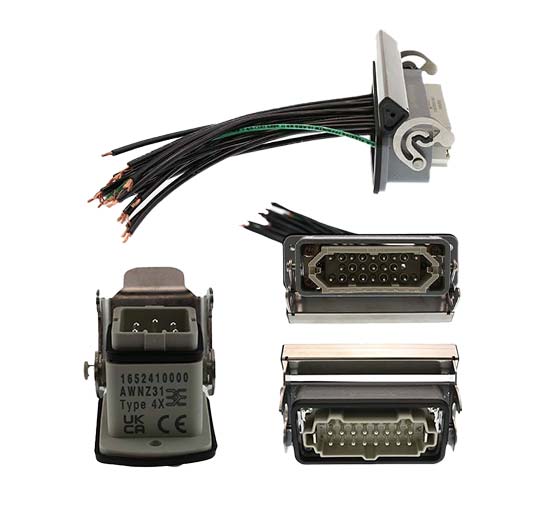

PCS Company’s Standard Mold End Connectors are offered in both power and thermocouple styles to support industry standard cable connections. Each 15 amp mold power connector for 5, 8 and 12 zones is supplied with six inches of number 14 gauge wire leads, ground wire and crimp connectors. The single zone combination power and thermocouple mold end connector comes with either a metal or plastic housing. The single zone combination connector has a 5 pin insert and is rated for 10 amps. The PICH5 is a 5 zone mold end power connector rated for a maximum of 30 amps per zone.
| Item Number | No of Zones | Connector Type | Max. Amp per Zone | X | Y | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| CKPTIC-1 | 1 | Combo Power & TC | 10 | N/A | 1.18 | $19.13 | ||
| CKPTIC-1-P | 1 | Combo Power & TC | 10 | N/A | 1.18 | $15.00 | ||
| PICH5 | 5 | High Power | 30 | 4.331 | 2.56 | $187.46 | ||
| VC-12MPC | 12 | Mold Power | 15 | 3.386 | 0.689 | $55.46 | ||
| VC-12MTC | 12 | Thermocouple | 15 | 5.118 | 1.26 | $39.62 | ||
| VC-5MPC | 5 | Mold Power | 15 | 3.386 | 0.689 | $41.20 | ||
| VC-5MTC | 5 | Thermocouple | 15 | 3.268 | 1.26 | $31.69 | ||
| VC-8MPC | 8 | Mold Power | 15 | 3.386 | 0.689 | $49.12 | ||
| VC-8MTC | 8 | Thermocouple | 15 | 4.055 | 1.26 | $34.86 |
