- 2 Flute Coated Solid Carbide
- AlTiN Coated for longer tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Eliminates rough finish commonly left by typical 4 flute tools
- Larger shank with 3° draft angles, gives extra reach with added strength

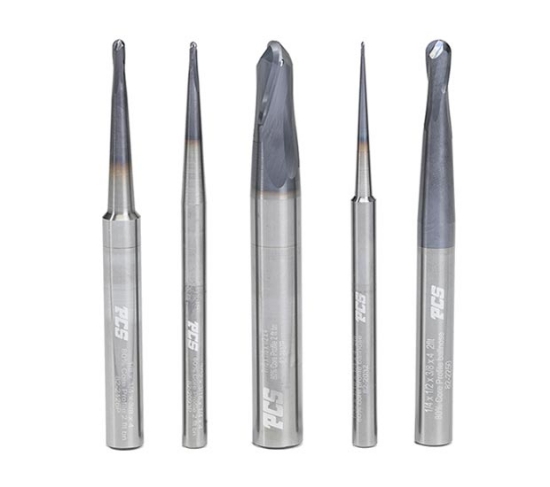

Ball Nose Finishing End Mill
80% Core 2 Flute Coated Solid Carbide End Mills - Ball Nose Profile
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 82-2032P | 1/32 | 1/16 | 4 | 0.25 | $62.46 | ||
| 82-2062P | 1/16 | 1/8 | 4 | 0.25 | $60.18 | ||
| 82-2093P | 3/32 | 3/16 | 4 | 0.25 | $57.92 | ||
| 82-2125P | 1/8 | 1/4 | 4 | 0.25 | $55.64 | ||
| 82-2126P | 1/8 | 1/4 | 4 | 0.375 | $69.27 | ||
| 82-2187P | 3/16 | 3/8 | 4 | 0.375 | $69.27 | ||
| 82-2250P | 1/4 | 1/2 | 4 | 0.375 | $69.27 | ||
| 82-2312P | 5/16 | 5/8 | 4 | 0.375 | $67.00 | ||
| 82-2375P | 3/8 | 3/4 | 4 | 0.5 | $85.17 | ||
| 82-2437P | 7/16 | 7/8 | 4 | 0.5 | $85.17 |
