- Constructed of premium mica insulation material
- 12" insulated leads with an extra protective sleeve at the heater
- Lead exits at the end of the heater band to extend contact with the nozzle
- Heavy gauge outer sheath is engraved with item number and heater specifications
- 1 year guarantee on quality and workmanship

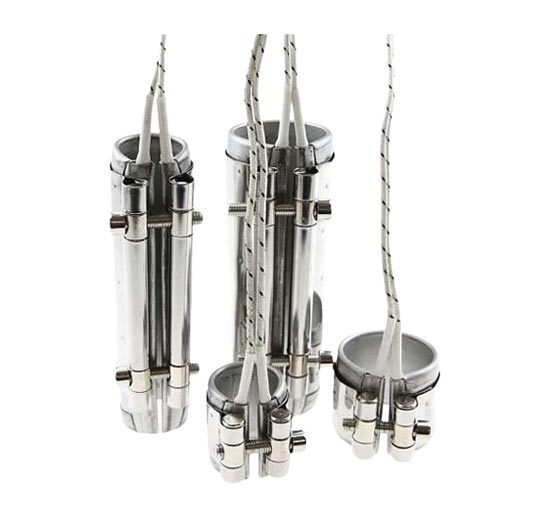

Economy Mica Nozzle Heater Bands
PCS Company offers Economy Mica Nozzle Heater Bands in both 120v and 240v. The mica heater band provides efficient heat and is constructed with closed ends to prevent contamination, thus extending the life of the heater. The rust resistant outer steel sheath is engraved with the heater item number and specification for easy identification.
| Item Number | Inside Diameter | Width | Wattage | Voltage | Lead Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| HB1001001100 | 1" | 1" | 100 | 120 | 12" | $9.50 | ||
| HB1001001125 | 1" | 1" | 125 | 120 | 12" | $9.50 | ||
| HB1001002100 | 1" | 1" | 100 | 240 | 12" | $9.50 | ||
| HB1001002125 | 1" | 1" | 125 | 240 | 12" | $9.50 | ||
| HB1001121150 | 1" | 1-1/2" | 150 | 120 | 12" | $9.50 | ||
| HB1001122150 | 1" | 1-1/2" | 150 | 240 | 12" | $9.50 | ||
| HB1002001200 | 1" | 2" | 200 | 120 | 12" | $9.69 | ||
| HB1002002200 | 1" | 2" | 200 | 240 | 12" | $9.69 | ||
| HB1002121250 | 1" | 2-1/2" | 250 | 120 | 12" | $10.14 | ||
| HB1002122250 | 1" | 2-1/2" | 250 | 240 | 12" | $10.14 | ||
| HB1003001300 | 1" | 3" | 300 | 120 | 12" | $10.49 | ||
| HB1003002300 | 1" | 3" | 300 | 240 | 12" | $10.49 | ||
| HB1005002500 | 1" | 5" | 500 | 240 | 12" | $10.49 | ||
| HB1120342150 | 1-1/2" | 3/4" | 150 | 240 | 12" | $9.51 | ||
| HB1121001150 | 1-1/2" | 1" | 150 | 120 | 12" | $9.51 | ||
| HB1121002150 | 1-1/2" | 1" | 150 | 240 | 12" | $9.51 | ||
| HB1121002200 | 1-1/2" | 1" | 200 | 240 | 12" | $9.51 | ||
| HB1121121250 | 1-1/2" | 1-1/2" | 250 | 120 | 12" | $9.51 | ||
| HB1121121275 | 1-1/2" | 1-1/2" | 275 | 120 | 12" | $9.51 | ||
| HB1121121300 | 1-1/2" | 1-1/2" | 300 | 120 | 12" | $9.51 | ||
| HB1121122250 | 1-1/2" | 1-1/2" | 250 | 240 | 12" | $9.51 | ||
| HB1121122275 | 1-1/2" | 1-1/2" | 275 | 240 | 12" | $9.51 | ||
| HB1121122300 | 1-1/2" | 1-1/2" | 300 | 240 | 12" | $9.51 | ||
| HB1122001300 | 1-1/2" | 2" | 300 | 120 | 12" | $10.57 | ||
| HB1122002300 | 1-1/2" | 2" | 300 | 240 | 12" | $10.57 | ||
| HB1122121400 | 1-1/2" | 2-1/2" | 400 | 120 | 12" | $11.00 | ||
| HB1122122400 | 1-1/2" | 2-1/2" | 400 | 240 | 12" | $11.00 | ||
| HB1123001450 | 1-1/2" | 3" | 450 | 120 | 12" | $11.20 | ||
| HB1123002450 | 1-1/2" | 3" | 450 | 240 | 12" | $11.20 | ||
| HB1123121525 | 1-1/2" | 3-1/2" | 525 | 120 | 12" | $11.63 | ||
| HB1123122525 | 1-1/2" | 3-1/2" | 525 | 240 | 12" | $11.63 | ||
| HB1124001550 | 1-1/2" | 4" | 550 | 120 | 12" | $12.69 | ||
| HB1124002550 | 1-1/2" | 4" | 550 | 240 | 12" | $12.69 | ||
| HB1125001700 | 1-1/2" | 5" | 700 | 120 | 12" | $13.53 | ||
| HB1125002700 | 1-1/2" | 5" | 700 | 240 | 12" | $13.53 | ||
| HB2121121350 | 2-1/2" | 1-1/2" | 350 | 120 | 12" | $10.26 | ||
| HB2121122350 | 2-1/2" | 1-1/2" | 350 | 240 | 12" | $10.26 |
