- Unit of Measure - Inch
- Modular construction
- 6061-T6 Aluminum Material
- Anodized for corrosion protection
- Pre-drilled mounting holes
- Viton O-Rings and Tie Rods included
- 90° inlet available
- Maximum operating temperature – 400F/204C

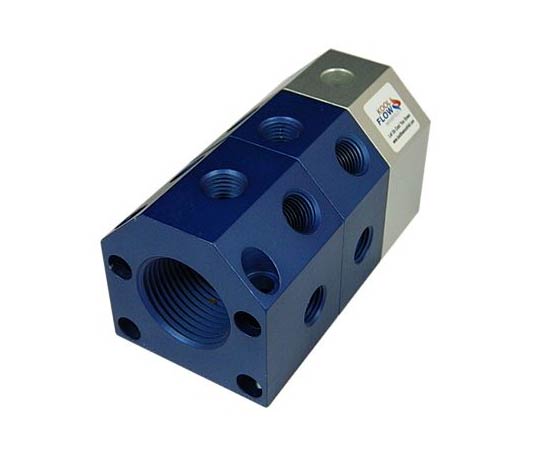

FB3 Port-To-Blank Assemblies
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB3 Series manifolds have a 1" inlet hole size with the option of either a 1/4" or 3/8" outlet hole size. The Port to Blank Assembly eliminates the costly end plug, allowing the hot and cold manifolds to be mounted in different locations. Kool Flow Manifolds are also available with a 90° inlet option. Brass Kool Flow Manifolds are available for pH levels above 7.8. Send all Brass Kool Flow Manifold requests for quote to customcomponents@pcs-company.com.
| Item Number | Block Size | Dimension A | Dimension B | Inlet Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FB3-1-6-B-PB | 3.00 x 3.00 | 2.63 | 3.75 | N/A | $90.49 | ||
| FB3-1-6-B-PB-1.25 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/4 NPT | $90.49 | ||
| FB3-1-6-B-PB-1.5 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/2 NPT | $90.49 | ||
| FB3-1-6-R-PB | 3.00 x 3.00 | 2.63 | 3.75 | N/A | $90.49 | ||
| FB3-1-6-R-PB-1.25 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/4 NPT | $90.49 | ||
| FB3-1-6-R-PB-1.5 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/2 NPT | $90.49 | ||
| FB3-1-8-B-PB | 3.00 x 3.00 | 2.63 | 3.75 | N/A | $90.49 | ||
| FB3-1-8-B-PB-1.25 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/4 NPT | $90.49 | ||
| FB3-1-8-B-PB-1.5 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/2 NPT | $90.49 | ||
| FB3-1-8-R-PB | 3.00 x 3.00 | 2.63 | 3.75 | N/A | $90.49 | ||
| FB3-1-8-R-PB-1.25 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/4 NPT | $90.49 | ||
| FB3-1-8-R-PB-1.5 | 3.00 x 3.00 | 2.63 | 3.75 | 1 1/2 NPT | $90.49 | ||
| FB3-2-6-B-PB | 3.00 x 3.00 | 4.13 | 5.25 | N/A | $128.79 | ||
| FB3-2-6-B-PB-1.25 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/4 NPT | $128.79 | ||
| FB3-2-6-B-PB-1.5 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/2 NPT | $128.79 | ||
| FB3-2-6-R-PB | 3.00 x 3.00 | 4.13 | 5.25 | N/A | $128.57 | ||
| FB3-2-6-R-PB-1.25 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/4 NPT | $128.79 | ||
| FB3-2-6-R-PB-1.5 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/2 NPT | $128.57 | ||
| FB3-2-8-B-PB | 3.00 x 3.00 | 4.13 | 5.25 | N/A | $128.79 | ||
| FB3-2-8-B-PB-1.25 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/4 NPT | $128.79 | ||
| FB3-2-8-B-PB-1.5 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/2 NPT | $128.79 | ||
| FB3-2-8-R-PB | 3.00 x 3.00 | 4.13 | 5.25 | N/A | $128.79 | ||
| FB3-2-8-R-PB-1.25 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/4 NPT | $128.79 | ||
| FB3-2-8-R-PB-1.5 | 3.00 x 3.00 | 4.13 | 5.25 | 1 1/2 NPT | $128.79 | ||
| FB3-3-6-B-PB | 3.00 x 3.00 | 5.63 | 6.75 | N/A | $175.46 | ||
| FB3-3-6-B-PB-1.25 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/4 NPT | $175.46 | ||
| FB3-3-6-B-PB-1.5 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/2 NPT | $175.46 | ||
| FB3-3-6-R-PB | 3.00 x 3.00 | 5.63 | 6.75 | N/A | $175.46 | ||
| FB3-3-6-R-PB-1.25 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/4 NPT | $175.46 | ||
| FB3-3-6-R-PB-1.5 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/2 NPT | $175.46 | ||
| FB3-3-8-B-PB | 3.00 x 3.00 | 5.63 | 6.75 | N/A | $175.46 | ||
| FB3-3-8-B-PB-1.25 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/4 NPT | $175.46 | ||
| FB3-3-8-B-PB-1.5 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/2 NPT | $175.46 | ||
| FB3-3-8-R-PB | 3.00 x 3.00 | 5.63 | 6.75 | N/A | $175.46 | ||
| FB3-3-8-R-PB-1.25 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/4 NPT | $175.46 | ||
| FB3-3-8-R-PB-1.5 | 3.00 x 3.00 | 5.63 | 6.75 | 1 1/2 NPT | $175.46 | ||
| FB3-4-6-B-PB | 3.00 x 3.00 | 7.13 | 8.25 | N/A | $217.96 | ||
| FB3-4-6-B-PB-1.25 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/4 NPT | $217.96 | ||
| FB3-4-6-B-PB-1.5 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/2 NPT | $217.96 | ||
| FB3-4-6-R-PB | 3.00 x 3.00 | 7.13 | 8.25 | N/A | $217.96 | ||
| FB3-4-6-R-PB-1.25 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/4 NPT | $217.96 | ||
| FB3-4-6-R-PB-1.5 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/2 NPT | $217.96 | ||
| FB3-4-8-B-PB | 3.00 x 3.00 | 7.13 | 8.25 | N/A | $217.96 | ||
| FB3-4-8-B-PB-1.25 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/4 NPT | $217.96 | ||
| FB3-4-8-B-PB-1.5 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/2 NPT | $217.96 | ||
| FB3-4-8-R-PB | 3.00 x 3.00 | 7.13 | 8.25 | N/A | $217.96 | ||
| FB3-4-8-R-PB-1.25 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/4 NPT | $217.96 | ||
| FB3-4-8-R-PB-1.5 | 3.00 x 3.00 | 7.13 | 8.25 | 1 1/2 NPT | $217.96 | ||
| FB3-5-6-B-PB | 3.00 x 3.00 | 8.63 | 9.75 | N/A | $278.00 | ||
| FB3-5-6-B-PB-1.25 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/4 NPT | $278.00 | ||
| FB3-5-6-B-PB-1.5 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/2 NPT | $278.00 | ||
| FB3-5-6-R-PB | 3.00 x 3.00 | 8.63 | 9.75 | N/A | $278.00 | ||
| FB3-5-6-R-PB-1.25 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/4 NPT | $278.00 | ||
| FB3-5-6-R-PB-1.5 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/2 NPT | $278.00 | ||
| FB3-5-8-B-PB | 3.00 x 3.00 | 8.63 | 9.75 | N/A | $278.00 | ||
| FB3-5-8-B-PB-1.25 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/4 NPT | $278.00 | ||
| FB3-5-8-B-PB-1.5 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/2 NPT | $278.00 | ||
| FB3-5-8-R-PB | 3.00 x 3.00 | 8.63 | 9.75 | N/A | $278.00 | ||
| FB3-5-8-R-PB-1.25 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/4 NPT | $278.00 | ||
| FB3-5-8-R-PB-1.5 | 3.00 x 3.00 | 8.63 | 9.75 | 1 1/2 NPT | $278.00 | ||
| FB390-1-6-B-PB | 3.00 x 3.00 | 3.38 | 4.5 | N/A | $137.00 | ||
| FB390-1-6-B-PB-1.25 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/4 NPT | $137.00 | ||
| FB390-1-6-B-PB-1.5 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/2 NPT | $137.00 | ||
| FB390-1-6-R-PB | 3.00 x 3.00 | 3.38 | 4.5 | N/A | $137.00 | ||
| FB390-1-6-R-PB-1.25 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/4 NPT | $137.00 | ||
| FB390-1-6-R-PB-1.5 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/2 NPT | $137.00 | ||
| FB390-1-8-B-PB | 3.00 x 3.00 | 3.38 | 4.5 | N/A | $137.00 | ||
| FB390-1-8-B-PB-1.25 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/4 NPT | $137.00 | ||
| FB390-1-8-B-PB-1.5 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/2 NPT | $137.00 | ||
| FB390-1-8-R-PB | 3.00 x 3.00 | 3.38 | 4.5 | N/A | $137.00 | ||
| FB390-1-8-R-PB-1.25 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/4 NPT | $137.00 | ||
| FB390-1-8-R-PB-1.5 | 3.00 x 3.00 | 3.38 | 4.5 | 1 1/2 NPT | $137.00 | ||
| FB390-2-6-B-PB | 3.00 x 3.00 | 4.88 | 6 | N/A | $178.00 | ||
| FB390-2-6-B-PB-1.25 | 3.00 x 3.00 | 4.88 | 6 | 1 1/4 NPT | $178.00 | ||
| FB390-2-6-B-PB-1.5 | 3.00 x 3.00 | 4.88 | 6 | 1 1/2 NPT | $178.00 | ||
| FB390-2-6-R-PB | 3.00 x 3.00 | 4.88 | 6 | N/A | $178.00 | ||
| FB390-2-6-R-PB-1.25 | 3.00 x 3.00 | 4.88 | 6 | 1 1/4 NPT | $178.00 | ||
| FB390-2-6-R-PB-1.5 | 3.00 x 3.00 | 4.88 | 6 | 1 1/2 NPT | $178.00 | ||
| FB390-2-8-B-PB | 3.00 x 3.00 | 4.88 | 6 | N/A | $178.00 | ||
| FB390-2-8-B-PB-1.25 | 3.00 x 3.00 | 4.88 | 6 | 1 1/4 NPT | $178.00 | ||
| FB390-2-8-B-PB-1.5 | 3.00 x 3.00 | 4.88 | 6 | 1 1/2 NPT | $178.00 | ||
| FB390-2-8-R-PB | 3.00 x 3.00 | 4.88 | 6 | N/A | $178.00 | ||
| FB390-2-8-R-PB-1.25 | 3.00 x 3.00 | 4.88 | 6 | 1 1/4 NPT | $178.00 | ||
| FB390-2-8-R-PB-1.5 | 3.00 x 3.00 | 4.88 | 6 | 1 1/2 NPT | $178.00 | ||
| FB390-3-6-B-PB | 3.00 x 3.00 | 6.38 | 7.5 | N/A | $216.00 | ||
| FB390-3-6-B-PB-1.25 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/4 NPT | $216.00 | ||
| FB390-3-6-B-PB-1.5 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/2 NPT | $218.00 | ||
| FB390-3-6-R-PB | 3.00 x 3.00 | 6.38 | 7.5 | N/A | $216.00 | ||
| FB390-3-6-R-PB-1.25 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/4 NPT | $216.00 | ||
| FB390-3-6-R-PB-1.5 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/2 NPT | $216.00 | ||
| FB390-3-8-B-PB | 3.00 x 3.00 | 6.38 | 7.5 | N/A | $216.00 | ||
| FB390-3-8-B-PB-1.25 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/4 NPT | $216.00 | ||
| FB390-3-8-B-PB-1.5 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/2 NPT | $216.00 | ||
| FB390-3-8-R-PB | 3.00 x 3.00 | 6.38 | 7.5 | N/A | $216.00 | ||
| FB390-3-8-R-PB-1.25 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/4 NPT | $216.00 | ||
| FB390-3-8-R-PB-1.5 | 3.00 x 3.00 | 6.38 | 7.5 | 1 1/2 NPT | $216.00 | ||
| FB390-4-6-B-PB | 3.00 x 3.00 | 7.88 | 9 | N/A | $259.00 | ||
| FB390-4-6-B-PB-1.25 | 3.00 x 3.00 | 7.88 | 9 | 1 1/4 NPT | $259.00 | ||
| FB390-4-6-B-PB-1.5 | 3.00 x 3.00 | 7.88 | 9 | 1 1/2 NPT | $259.00 | ||
| FB390-4-6-R-PB | 3.00 x 3.00 | 7.88 | 9 | N/A | $259.00 | ||
| FB390-4-6-R-PB-1.25 | 3.00 x 3.00 | 7.88 | 9 | 1 1/4 NPT | $259.00 | ||
| FB390-4-6-R-PB-1.5 | 3.00 x 3.00 | 7.88 | 9 | 1 1/2 NPT | $259.00 | ||
| FB390-4-8-B-PB | 3.00 x 3.00 | 7.88 | 9 | N/A | $259.00 | ||
| FB390-4-8-B-PB-1.25 | 3.00 x 3.00 | 7.88 | 9 | 1 1/4 NPT | $259.00 | ||
| FB390-4-8-B-PB-1.5 | 3.00 x 3.00 | 7.88 | 9 | 1 1/2 NPT | $259.00 | ||
| FB390-4-8-R-PB | 3.00 x 3.00 | 7.88 | 9 | N/A | $259.00 | ||
| FB390-4-8-R-PB-1.25 | 3.00 x 3.00 | 7.88 | 9 | 1 1/4 NPT | $259.00 | ||
| FB390-4-8-R-PB-1.5 | 3.00 x 3.00 | 7.88 | 9 | 1 1/2 NPT | $259.00 | ||
| FB390-5-6-B-PB | 3.00 x 3.00 | 9.38 | 10.5 | N/A | $298.00 | ||
| FB390-5-6-B-PB-1.25 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/4 NPT | $298.00 | ||
| FB390-5-6-B-PB-1.5 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/2 NPT | $298.00 | ||
| FB390-5-6-R-PB | 3.00 x 3.00 | 9.38 | 10.5 | N/A | $298.00 | ||
| FB390-5-6-R-PB-1.25 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/4 NPT | $298.00 | ||
| FB390-5-6-R-PB-1.5 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/2 NPT | $298.00 | ||
| FB390-5-8-B-PB | 3.00 x 3.00 | 9.38 | 10.5 | N/A | $298.00 | ||
| FB390-5-8-B-PB-1.25 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/4 NPT | $298.00 | ||
| FB390-5-8-B-PB-1.5 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/2 NPT | $298.00 | ||
| FB390-5-8-R-PB | 3.00 x 3.00 | 9.38 | 10.5 | N/A | $298.00 | ||
| FB390-5-8-R-PB-1.25 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/4 NPT | $298.00 | ||
| FB390-5-8-R-PB-1.5 | 3.00 x 3.00 | 9.38 | 10.5 | 1 1/2 NPT | $298.00 |
