- Center insert sits flush within body
- Includes body and center insert
- Designed for efficient installation and removal
- Stainless steel construction
- Provides excellent traceability
- Unit of measure - Millimeters
Months

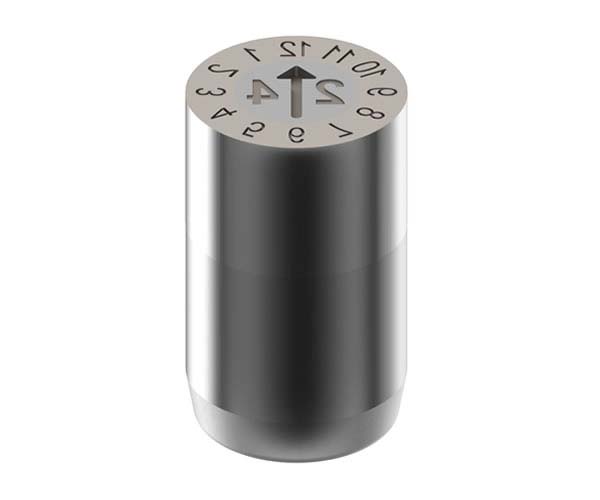

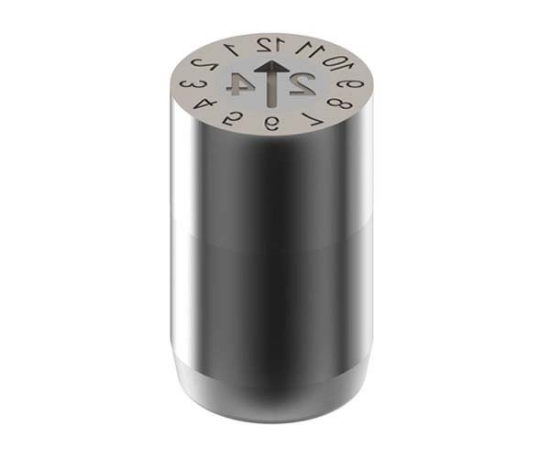

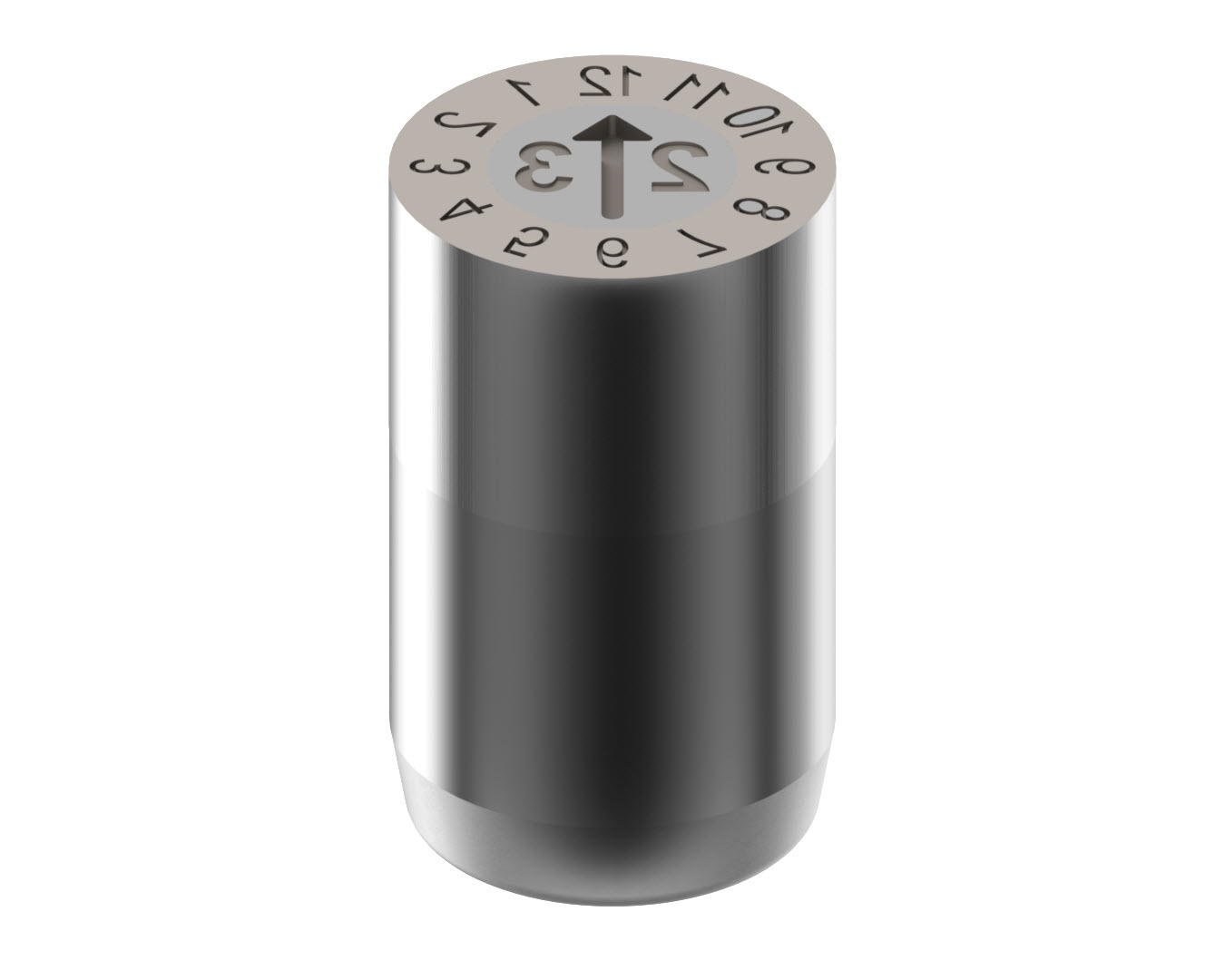

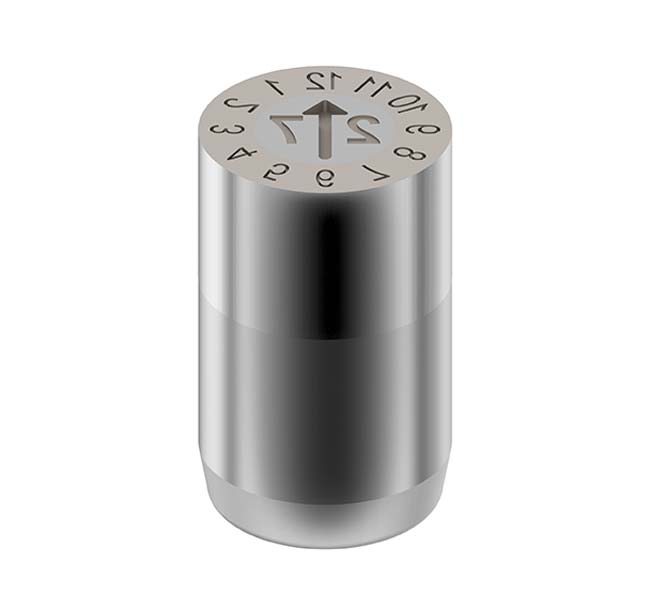

PCS Company's Standard Date Stamp for Months are constructed of stainless steel. The inserts are designed for ease of installation and removal. Eight diameter choices range from 4mm to 20mm to fit your applicatin. The Month series features 12 months with arrow, 12 months with no center insert and 12 months, arrow and year.
| Item Number | Year | Engraved Lettering | A Assembly Diameter | L Assembly Length | C Center Insert Diameter | J Center Insert Length | D Slide Fit Length | E K.O. Hole Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DS 0422 | N/A | 12 Months and Arrow | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $113.56 $85.17 | ||
| DS 0422-25 | 2025 | 12 Months, Arrow and Year | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $110.25 $82.69 | ||
| DS 0422-NA | N/A | 12 Months Only | 4 | 12 | 2.2 | 7.7 | 6 | 3.5 | $94.31 $70.73 | ||
| DS 0530 | N/A | 12 Months and Arrow | 5 | 12 | 3 | 7.7 | 6 | 3.5 | $113.56 $85.17 | ||
| DS 0530-25 | 2025 | 12 Months, Arrow and Year | 5 | 12 | 3 | 7.7 | 6 | 3.5 | $110.25 $82.69 | ||
| DS 0530-NA | N/A | 12 Months Only | 5 | 12 | 3 | 7.7 | 6 | 3.5 | $94.31 $70.73 | ||
| DS 0632 | N/A | 12 Months and Arrow | 6 | 20 | 3.2 | 17 | 12 | 4 | $117.88 $88.41 | ||
| DS 0632-25 | 2025 | 12 Months, Arrow and Year | 6 | 20 | 3.2 | 17 | 12 | 4 | $114.45 $85.84 | ||
| DS 0632-NA | N/A | 12 Months Only | 6 | 20 | 3.2 | 17 | 12 | 4 | $90.85 $68.14 | ||
| DS 0847 | N/A | 12 Months and Arrow | 8 | 20 | 4.7 | 17 | 12 | 6 | $117.88 $88.41 | ||
| DS 0847-25 | 2025 | 12 Months, Arrow and Year | 8 | 20 | 4.7 | 17 | 12 | 6 | $114.45 $85.84 | ||
| DS 0847-NA | N/A | 12 Months Only | 8 | 20 | 4.7 | 17 | 12 | 6 | $90.85 $68.14 | ||
| DS 1057 | N/A | 12 Months and Arrow | 10 | 20 | 5.7 | 17 | 12 | 8 | $117.88 $88.41 | ||
| DS 1057-25 | 2025 | 12 Months, Arrow and Year | 10 | 20 | 5.7 | 17 | 12 | 8 | $114.45 $85.84 | ||
| DS 1057-NA | N/A | 12 Months Only | 10 | 20 | 5.7 | 17 | 12 | 8 | $90.85 $68.14 | ||
| DS 1267 | N/A | 12 Months and Arrow | 12 | 20 | 6.7 | 17 | 12 | 10 | $125.45 $94.09 | ||
| DS 1267-25 | 2025 | 12 Months, Arrow and Year | 12 | 20 | 6.7 | 17 | 12 | 10 | $121.80 $91.35 | ||
| DS 1267-NA | N/A | 12 Months Only | 12 | 20 | 6.7 | 17 | 12 | 10 | $98.42 $73.82 | ||
| DS 1687 | N/A | 12 Months and Arrow | 16 | 20 | 8.7 | 17 | 12 | 12 | $125.45 $94.09 | ||
| DS 1687-25 | 2025 | 12 Months, Arrow and Year | 16 | 20 | 8.7 | 17 | 12 | 12 | $121.80 $91.35 | ||
| DS 1687-NA | N/A | 12 Months Only | 16 | 20 | 8.7 | 17 | 12 | 12 | $98.42 $73.82 | ||
| DS 20107 | N/A | 12 Months and Arrow | 20 | 20 | 10.7 | 17 | 12 | 14 | $133.02 $99.76 | ||
| DS 20107-25 | 2025 | 12 Months, Arrow and Year | 20 | 20 | 10.7 | 17 | 12 | 14 | $129.15 $96.86 | ||
| DS 20107-NA | N/A | 12 Months Only | 20 | 20 | 10.7 | 17 | 12 | 14 | $105.99 $79.49 |
