- 2 Flute Solid Carbide
- Extra long shanks for hard to reach machining
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Shorter flute length for maximum strength
- 30° helix general purpose square end

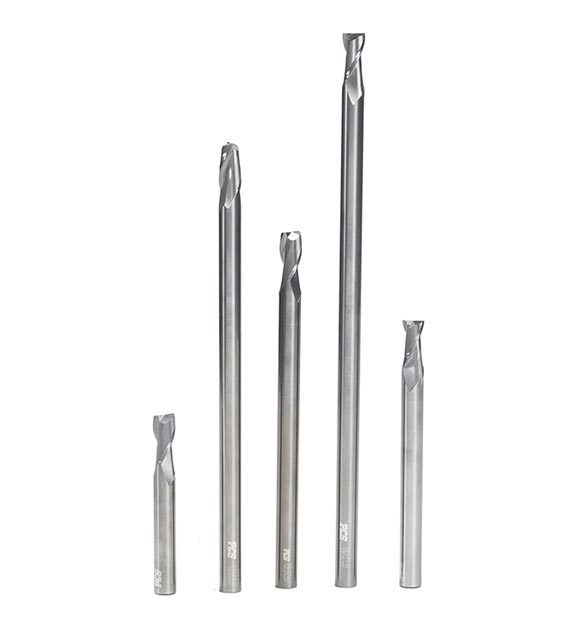

Square End Mill (for Machining Aluminum)
Extended Reach 2 Flute Solid Carbide End Mills - Square End (For Machining Aluminum)
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 40-2125P | 1/8 | 1/2 | 4 | 0.125 | $17.08 | ||
| 40-2126P | 1/8 | 1/2 | 6 | 0.125 | $20.74 | ||
| 40-2187P | 3/16 | 5/8 | 4 | 0.1875 | $19.30 | ||
| 40-2188P | 3/16 | 5/8 | 6 | 0.1875 | $23.84 | ||
| 40-2250P | 1/4 | 3/4 | 4 | 0.25 | $23.84 | ||
| 40-2251P | 1/4 | 3/4 | 6 | 0.25 | $28.39 | ||
| 40-2312P | 5/16 | 7/8 | 4 | 0.3125 | $32.93 | ||
| 40-2313P | 5/16 | 7/8 | 6 | 0.3125 | $39.75 | ||
| 40-2375P | 3/8 | 7/8 | 4 | 0.375 | $39.75 | ||
| 40-2376P | 3/8 | 7/8 | 6 | 0.375 | $46.56 | ||
| 40-2377P | 3/8 | 7/8 | 8 | 0.375 | $71.54 | ||
| 40-2500P | 1/2 | 1 | 4 | 0.5 | $51.10 | ||
| 40-2501P | 1/2 | 1 | 6 | 0.5 | $67.00 | ||
| 40-2502P | 1/2 | 1 | 8 | 0.5 | $89.71 | ||
| 40-2503P | 1/2 | 1 | 10 | 0.5 | $135.14 | ||
| 40-2504P | 1/2 | 1 | 12 | 0.5 | $166.93 | ||
| 40-2626P | 5/8 | 1 1/4 | 6 | 0.625 | $101.06 | ||
| 40-2751P | 3/4 | 1 1/2 | 6 | 0.75 | $151.03 |
