- Sits flush within body assembly
- Designed for efficient installation and removal
- Stainless steel construction
- Provides excellent traceability
- Unit of Measure - Millimeters
- Compatible with Progressive Component's DFP series

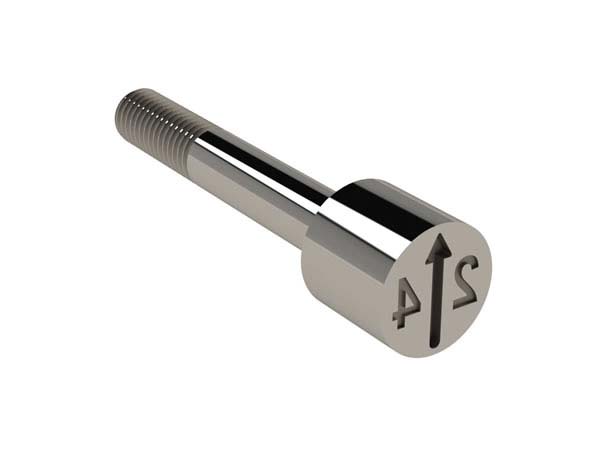

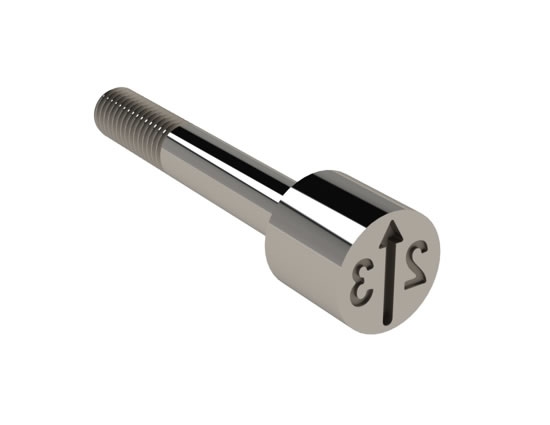

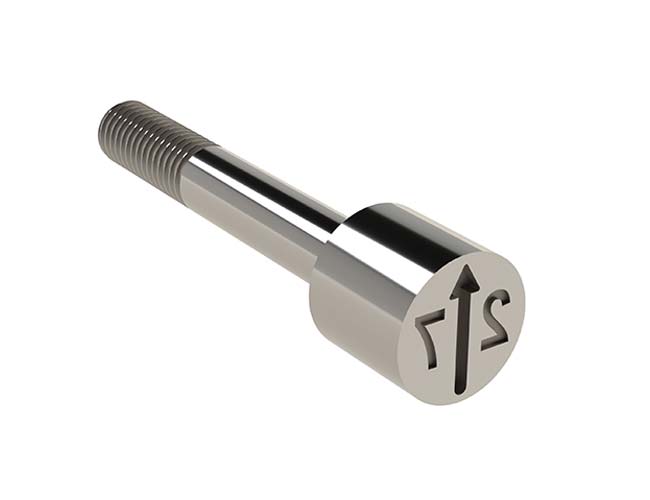

RF Series (Remains Flush)
PCS Company's RF Series or Remains Flush center insert is stainless steel construction and is always at the same level as the body of the date stamp. Center Inserts are easily changed reducing downtime. Choose from either arrow only or by year. Diameters range from 1.6mm to 8.4mm.
| Item Number | Thread | Beginning Year | Engraved Lettering | C Insert Diameter | J Overall Length | K Body Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| DFP03-24 | M1x0.25 | 2024 | Year and Arrow | 1.6 | 9 | 2 | $32.14 $24.10 | ||
| DFP03-25 | M1x0.25 | 2025 | Year and Arrow | 1.6 | 9 | 2 | $31.20 $23.40 | ||
| DFP03-AO | M1x0.25 | N/A | Arrow Only | 1.6 | 9 | 2 | $31.15 $23.36 | ||
| DFP04-25 | M1.4x0.2 | 2025 | Year and Arrow | 2.5 | 10.5 | 2.3 | $31.20 $23.40 | ||
| DFP04-AO | M1.4x0.2 | N/A | Arrow Only | 2.5 | 10.5 | 2.3 | $31.15 $23.36 | ||
| DFP05-24 | M1.6x0.2 | 2024 | Year and Arrow | 3.1 | 13 | 2.8 | $32.14 $24.10 | ||
| DFP05-25 | M1.6x0.2 | 2025 | Year and Arrow | 3.1 | 13 | 2.8 | $31.20 $23.40 | ||
| DFP05-AO | M1.6x0.2 | N/A | Arrow Only | 3.1 | 13 | 2.8 | $31.15 $23.36 | ||
| DFP06-24 | M1.6x0.2 | 2024 | Year and Arrow | 3.1 | 13 | 2.8 | $32.14 $24.10 | ||
| DFP06-25 | M1.6x0.2 | 2025 | Year and Arrow | 3.1 | 13 | 2.8 | $31.20 $23.40 | ||
| DFP06-AO | M1.6x0.2 | N/A | Arrow Only | 3.1 | 13 | 2.8 | $31.15 $23.36 | ||
| DFP08-25 | M2.5x0.35 | 2025 | Year and Arrow | 4.6 | 14 | 4 | $31.20 $23.40 | ||
| DFP08-AO | M2.5x0.35 | N/A | Arrow Only | 4.6 | 14 | 4 | $31.15 $23.36 | ||
| DFP10-24 | M2.5x0.35 | 2024 | Year and Arrow | 4.6 | 14 | 4 | $32.14 $24.10 | ||
| DFP10-25 | M2.5x0.35 | 2025 | Year and Arrow | 4.6 | 14 | 4 | $31.20 $23.40 | ||
| DFP10-AO | M2.5x0.35 | N/A | Arrow Only | 4.6 | 14 | 4 | $31.15 $23.36 | ||
| DFP12-25 | M3x0.5 | 2025 | Year and Arrow | 6.4 | 17 | 4 | $31.20 $23.40 | ||
| DFP12-AO | M3x0.5 | N/A | Arrow Only | 6.4 | 17 | 4 | $31.15 $23.36 | ||
| DFP16-25 | M3.5x0.6 | 2025 | Year and Arrow | 8.4 | 23 | 5 | $31.20 $23.40 | ||
| DFP16-AO | M3.5x0.6 | N/A | Arrow Only | 8.4 | 23 | 5 | $31.15 $23.36 |
