- Unit of Measure - Inch
- Made of brass and stainless steel materials
- Non-Valved and Non- Interchangeable ( NB ) bodies
- “NB” suffix have a hex-shaped quick disconnect feature while standard fittings have a round quick disconnect feature
- Pressures up to 200 psi
- Temperature rating up to 400F
- Use with standard and Push-Lok barbs
- Made in USA

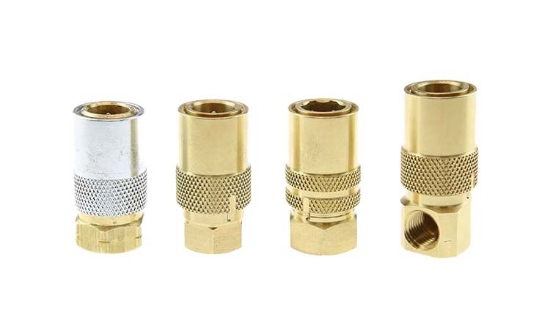

Socket Connectors Bodies Only
Bodies only for the non-valved and non-interchangeable socket connectors for 200, 300 and 500 series. Create your own quick coupler socket connection to meet your individual requirements using other quality PCS water fitting components.
| Item Number | Pipe Thread Size | Hole Size | Locking | Valved | L Length | E | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| CMB-200 | 1/8" | 1/4" | Yes | No | 1.375" | N/A | $4.62 | ||
| CMB-200-1/4 | 1/4" | 1/4" | Yes | No | 1.375" | N/A | $5.68 | ||
| CMB-200-1/4-NB | 1/4" | 1/4" | Yes | No | 1.375" | N/A | $5.89 | ||
| CMB-200-90 | 1/8" | 1/4" | Yes | No | 1.688" | 9/32" | $6.91 | ||
| CMB-200-NB | 1/8" | 1/4" | Yes | No | 1.375" | N/A | $5.89 | ||
| CMB-200-V | 1/8" | 1/4" | No | Yes | 1.375" | N/A | $7.00 | ||
| CMB-300 | 1/4" | 3/8" | Yes | No | 1.875" | N/A | $5.52 | ||
| CMB-300-3/8 | 3/8" | 3/8" | Yes | No | 1.875" | N/A | $7.08 | ||
| CMB-300-3/8-NB | 3/8" | 3/8" | Yes | No | 1.875" | N/A | $9.76 | ||
| CMB-300-90 | 1/4" | 3/8" | Yes | No | 2.125" | 11/32" | $9.88 | ||
| CMB-300-NB | 1/4 | 3/8" | Yes | No | 1.875" | N/A | $8.98 | ||
| CMB-300-V | 1/4" | 3/8" | No | Yes | 1.875" | N/A | $10.11 | ||
| CMB-500 | 1/2" | 1/2" | Yes | No | 2.250" | N/A | $10.27 | ||
| CMB-500-90 | 1/2" | 1/2" | Yes | No | 2.875" | 17/32" | $17.05 | ||
| CMB-500-NB | 1/2" | 1/2" | Yes | No | 2.250" | N/A | $12.33 |
