- UNC threads: UNC 1’’-8 → UNC 2’’ 1/2-4
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating) - No risk of wrong use
- Optimized WLL/dimensions and weight ratio
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Built in anti-tribocorrosion grease, easy rotation under load
- Anti-corrosion coating (zinc coating) on bolt and base
- 7 year warranty when registered thru Codipro

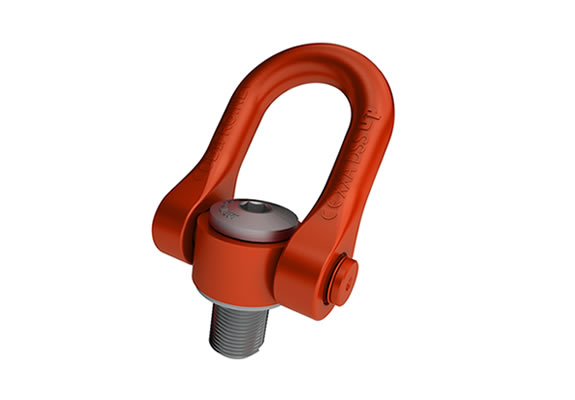

Codipro DSS Double Swivel Shackle Hoist Ring - Inch
PCS Company offers the Codipro DSS, universal double swivel shackle. The DSS is a double swivel ring that is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. The ring swivels 180°, but has a rotating range of 360° . Register your Codipro Eyebolt at Coditracer.
| Item Number | SF 5:1 WLL (lbs) | Thread Size | Thread Length L1 (mm) | Torque (ft-lb) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| DSSU100UP | 10000 | UNC 1’’- 8 | 36 | 125 | $544.77 | ||
| DSSU125UP | 15000 | UNC 1 1/4" - 7 | 45 | 200 | $578.82 | ||
| DSSU138UP | 21000 | UNC 1 3/8" - 6 | 54 | 240 | $587.20 | ||
| DSSU150UP | 22000 | UNC 1 1/2" - 6 | 54 | 240 | $590.42 | ||
| DSSU175UP | 27000 | UNC 1 3/4" - 5 | 63 | 300 | $663.45 | ||
| DSSU200UP | 38000 | UNC 2" - 4.5 | 76 | 450 | $1,029.36 | ||
| DSSU250UP | 48500 | UNC 2 1/2" - 4 | 90 | 450 | $1,106.15 |
