- Unit of Measure - Foot
- Ground top & bottom
- Machined edges
- Custom cut to length - 1/2" increments

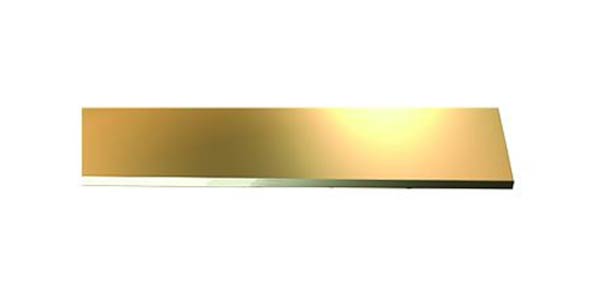

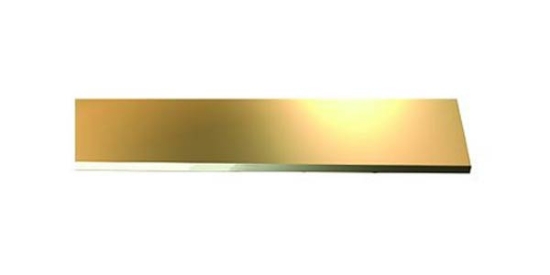

Standard Wear Plate (Inch)
Bronze Plated Wear Plate is used to reduce wear and give added support to moving components within a mold. PCS Bronze Plated Wear Plate is sold by the inch and cut to customer specified lengths up to 48". If you require your wear plate cut to length, use our easy to fill out form for an accurate and fast quote.
| Item Number | B Thickness | A Width | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| FP09-1000-48 | 1/8 | 1 | $107.02 | ||
| FP09-1250-48 | 1/8 | 1-1/4 | $137.22 | ||
| FP09-1500-48 | 1/8 | 1-1/2 | $162.23 | ||
| FP09-1750-48 | 1/8 | 1-3/4 | $190.64 | ||
| FP09-2000-48 | 1/8 | 2 | $213.97 | ||
| FP09-2500-48 | 1/8 | 2-1/2 | $266.56 | ||
| FP09-3000-48 | 1/8 | 3 | $315.76 | ||
| FP09-3500-48 | 1/8 | 3-1/2 | $367.52 | ||
| FP09-4000-48 | 1/8 | 4 | $426.19 | ||
| FP09-4500-48 | 1/8 | 4-1/2 | $475.36 | ||
| FP09-5000-48 | 1/8 | 5 | $526.27 | ||
| FP09-6000-48 | 1/8 | 6 | $575.45 | ||
| FP13-1000-48 | 3/16 | 1 | $115.64 | ||
| FP13-1250-48 | 3/16 | 1-1/4 | $139.77 | ||
| FP13-1500-48 | 3/16 | 1-1/2 | $167.36 | ||
| FP13-1750-48 | 3/16 | 1-3/4 | $194.11 | ||
| FP13-2000-48 | 3/16 | 2 | $215.70 | ||
| FP13-2500-48 | 3/16 | 2-1/2 | $271.77 | ||
| FP13-3000-48 | 3/16 | 3 | $323.53 | ||
| FP13-3500-48 | 3/16 | 3-1/2 | $377.02 | ||
| FP13-4000-48 | 3/16 | 4 | $437.41 | ||
| FP13-4500-48 | 3/16 | 4-1/2 | $487.44 | ||
| FP13-5000-48 | 3/16 | 5 | $534.89 | ||
| FP13-6000-48 | 3/16 | 6 | $589.22 | ||
| FP13-8000-48 | 3/16 | 8 | $900.69 | ||
| FP17-10000-48 | 1/4 | 10 | $1,153.46 | ||
| FP17-1000-48 | 1/4 | 1 | $116.50 | ||
| FP17-12000-48 | 1/4 | 12 | $1,355.32 | ||
| FP17-1250-48 | 1/4 | 1-1/4 | $146.70 | ||
| FP17-1500-48 | 1/4 | 1-1/2 | $170.84 | ||
| FP17-1750-48 | 1/4 | 1-3/4 | $204.46 | ||
| FP17-2000-48 | 1/4 | 2 | $229.51 | ||
| FP17-2500-48 | 1/4 | 2-1/2 | $273.50 | ||
| FP17-3000-48 | 1/4 | 3 | $333.88 | ||
| FP17-3500-48 | 1/4 | 3-1/2 | $389.11 | ||
| FP17-4000-48 | 1/4 | 4 | $441.72 | ||
| FP17-4500-48 | 1/4 | 4-1/2 | $495.20 | ||
| FP17-5000-48 | 1/4 | 5 | $540.09 | ||
| FP17-6000-48 | 1/4 | 6 | $613.42 | ||
| FP17-8000-48 | 1/4 | 8 | $909.33 | ||
| FP21-10000-48 | 5/16 | 10 | $1,161.22 | ||
| FP21-1000-48 | 5/16 | 1 | $121.68 | ||
| FP21-12000-48 | 5/16 | 12 | $1,359.65 | ||
| FP21-1250-48 | 5/16 | 1-1/4 | $150.11 | ||
| FP21-1500-48 | 5/16 | 1-1/2 | $172.59 | ||
| FP21-1750-48 | 5/16 | 1-3/4 | $205.31 | ||
| FP21-2000-48 | 5/16 | 2 | $237.26 | ||
| FP21-2500-48 | 5/16 | 2-1/2 | $287.30 | ||
| FP21-3000-48 | 5/16 | 3 | $347.69 | ||
| FP21-3500-48 | 5/16 | 3-1/2 | $395.16 | ||
| FP21-4000-48 | 5/16 | 4 | $450.36 | ||
| FP21-4500-48 | 5/16 | 4-1/2 | $508.17 | ||
| FP21-5000-48 | 5/16 | 5 | $571.14 | ||
| FP21-6000-48 | 5/16 | 6 | $617.70 | ||
| FP21-8000-48 | 5/16 | 8 | $914.49 | ||
| FP25-10000-48 | 3/8 | 10 | $1,162.93 | ||
| FP25-1000-48 | 3/8 | 1 | $126.00 | ||
| FP25-12000-48 | 3/8 | 12 | $1,361.35 | ||
| FP25-1250-48 | 3/8 | 1-1/4 | $155.32 | ||
| FP25-1500-48 | 3/8 | 1-1/2 | $187.25 | ||
| FP25-1750-48 | 3/8 | 1-3/4 | $213.97 | ||
| FP25-2000-48 | 3/8 | 2 | $242.46 | ||
| FP25-2500-48 | 3/8 | 2-1/2 | $298.54 | ||
| FP25-3000-48 | 3/8 | 3 | $351.16 | ||
| FP25-3500-48 | 3/8 | 3-1/2 | $396.87 | ||
| FP25-4000-48 | 3/8 | 4 | $451.20 | ||
| FP25-4500-48 | 3/8 | 4-1/2 | $525.42 | ||
| FP25-5000-48 | 3/8 | 5 | $575.45 | ||
| FP25-6000-48 | 3/8 | 6 | $647.07 | ||
| FP25-8000-48 | 3/8 | 8 | $917.94 | ||
| FP33-10000-48 | 1/2 | 10 | $1,182.77 | ||
| FP33-1000-48 | 1/2 | 1 | $128.56 | ||
| FP33-12000-48 | 1/2 | 12 | $1,390.68 | ||
| FP33-1250-48 | 1/2 | 1-1/4 | $157.02 | ||
| FP33-1500-48 | 1/2 | 1-1/2 | $190.64 | ||
| FP33-1750-48 | 1/2 | 1-3/4 | $215.70 | ||
| FP33-2000-48 | 1/2 | 2 | $247.61 | ||
| FP33-2500-48 | 1/2 | 2-1/2 | $304.57 | ||
| FP33-3000-48 | 1/2 | 3 | $367.52 | ||
| FP33-3500-48 | 1/2 | 3-1/2 | $437.41 | ||
| FP33-4000-48 | 1/2 | 4 | $487.44 | ||
| FP33-4500-48 | 1/2 | 4-1/2 | $544.39 | ||
| FP33-5000-48 | 1/2 | 5 | $597.88 | ||
| FP33-6000-48 | 1/2 | 6 | $703.13 | ||
| FP33-8000-48 | 1/2 | 8 | $930.04 | ||
| FP37-10000-48 | 5/8 | 10 | $1,241.46 | ||
| FP37-1000-48 | 5/8 | 1 | $137.22 | ||
| FP37-12000-48 | 5/8 | 12 | $1,426.93 | ||
| FP37-1250-48 | 5/8 | 1-1/4 | $167.36 | ||
| FP37-1500-48 | 5/8 | 1-1/2 | $204.46 | ||
| FP37-1750-48 | 5/8 | 1-3/4 | $229.51 | ||
| FP37-2000-48 | 5/8 | 2 | $266.56 | ||
| FP37-2500-48 | 5/8 | 2-1/2 | $324.40 | ||
| FP37-3000-48 | 5/8 | 3 | $394.27 | ||
| FP37-3500-48 | 5/8 | 3-1/2 | $450.36 | ||
| FP37-4000-48 | 5/8 | 4 | $525.42 | ||
| FP37-4500-48 | 5/8 | 4-1/2 | $584.08 | ||
| FP37-5000-48 | 5/8 | 5 | $639.30 | ||
| FP37-6000-48 | 5/8 | 6 | $760.06 | ||
| FP37-8000-48 | 5/8 | 8 | $989.54 | ||
| FP41-10000-48 | 3/4 | 10 | $1,274.24 | ||
| FP41-1000-48 | 3/4 | 1 | $139.77 | ||
| FP41-12000-48 | 3/4 | 12 | $1,492.50 | ||
| FP41-1250-48 | 3/4 | 1-1/4 | $187.25 | ||
| FP41-1500-48 | 3/4 | 1-1/2 | $215.70 | ||
| FP41-1750-48 | 3/4 | 1-3/4 | $245.04 | ||
| FP41-2000-48 | 3/4 | 2 | $273.50 | ||
| FP41-2500-48 | 3/4 | 2-1/2 | $351.16 | ||
| FP41-3000-48 | 3/4 | 3 | $411.54 | ||
| FP41-3500-48 | 3/4 | 3-1/2 | $479.71 | ||
| FP41-4000-48 | 3/4 | 4 | $540.09 | ||
| FP41-4500-48 | 3/4 | 4-1/2 | $613.42 | ||
| FP41-5000-48 | 3/4 | 5 | $672.92 | ||
| FP41-6000-48 | 3/4 | 6 | $804.89 | ||
| FP41-8000-48 | 3/4 | 8 | $1,047.32 | ||
| FP47-10000-48 | 1 | 10 | $1,401.90 | ||
| FP47-1000-48 | 1 | 1 | $150.11 | ||
| FP47-12000-48 | 1 | 12 | $1,651.24 | ||
| FP47-1250-48 | 1 | 1-1/4 | $194.11 | ||
| FP47-1500-48 | 1 | 1-1/2 | $237.26 | ||
| FP47-1750-48 | 1 | 1-3/4 | $273.50 | ||
| FP47-2000-48 | 1 | 2 | $304.57 | ||
| FP47-2500-48 | 1 | 2-1/2 | $389.11 | ||
| FP47-3000-48 | 1 | 3 | $450.36 | ||
| FP47-3500-48 | 1 | 3-1/2 | $529.75 | ||
| FP47-4000-48 | 1 | 4 | $597.88 | ||
| FP47-4500-48 | 1 | 4-1/2 | $682.44 | ||
| FP47-5000-48 | 1 | 5 | $740.19 | ||
| FP47-6000-48 | 1 | 6 | $886.04 | ||
| FP47-8000-48 | 1 | 8 | $1,122.40 |
