- Precision ground hotwork steel
- Surface nitrided to 65 - 74 Rc
- Core hardness of 40 - 45 Rc
- Head Annealed
- All pins of diameter 3/32" and greater are etched for easy identification

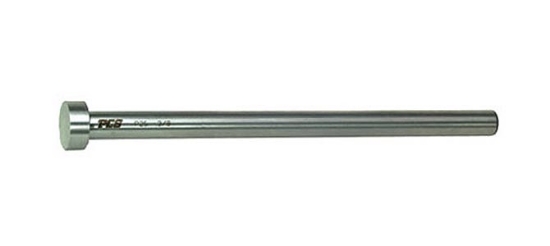

Nitrided Ejector Pins
PCS Nitrided ejector pins are manufactured from precision ground hotwork steel. The ejector pins have a surface hardness of 65-74 Rc and core hardness of 40-45 Rc. Pin diameters that are 3/32” or larger are etched for easy identification. All pins are measured in inches, for JIS or DIN metric ejector pins please refer to Metric JIS or Metric DIN.
| Item Number | D Nominal Pin Diameter | Actual Pin Diameter | Actual Pin Diameter Tolerance | L Overall Length | H Head Diameter | T Head Thickness | Annealed Head | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| NP10-10 | 9/64 | 0.1401 | +0/-.0003 | 10 | 0.25 | 1/8 | Yes | $3.56 | ||
| NP10-14 | 9/64 | 0.1401 | +0/-.0003 | 14 | 0.25 | 1/8 | Yes | $4.37 | ||
| NP11-10 | 5/32 | 0.1557 | +0/-.0003 | 10 | 0.281 | 5/32 | Yes | $3.50 | ||
| NP11-14 | 5/32 | 0.1557 | +0/-.0003 | 14 | 0.281 | 5/32 | Yes | $4.16 | ||
| NP11-18 | 5/32 | 0.1557 | +0/-.0003 | 18 | 0.281 | 5/32 | Yes | $5.75 | ||
| NP11-25 | 5/32 | 0.1557 | +0/-.0003 | 25 | 0.281 | 5/32 | Yes | $10.59 | ||
| NP11-36 | 5/32 | 0.1557 | +0/-.0003 | 36 | 0.281 | 5/32 | Yes | $33.21 | ||
| NP11-39 | 5/32 | 0.1557 | +0/-.0003 | 39 | 0.281 | 5/32 | Yes | $62.42 | ||
| NP11-6 | 5/32 | 0.1557 | +0/-.0003 | 6 | 0.281 | 5/32 | Yes | $3.15 | ||
| NP12-10 | 11/64 | 0.1714 | +0/-.0003 | 10 | 0.343 | 3/16 | Yes | $3.76 | ||
| NP12-14 | 11/64 | 0.1714 | +0/-.0003 | 14 | 0.343 | 3/16 | Yes | $4.62 | ||
| NP13-10 | 3/16 | 0.187 | +0/-.0003 | 10 | 0.375 | 3/16 | Yes | $3.71 | ||
| NP13-14 | 3/16 | 0.187 | +0/-.0003 | 14 | 0.375 | 3/16 | Yes | $4.65 | ||
| NP13-18 | 3/16 | 0.187 | +0/-.0003 | 18 | 0.375 | 3/16 | Yes | $5.97 | ||
| NP13-25 | 3/16 | 0.187 | +0/-.0003 | 25 | 0.375 | 3/16 | Yes | $8.41 | ||
| NP13-36 | 3/16 | 0.187 | +0/-.0003 | 36 | 0.375 | 3/16 | Yes | $33.06 | ||
| NP13-39 | 3/16 | 0.187 | +0/-.0003 | 39 | 0.375 | 3/16 | Yes | $61.61 | ||
| NP13-6 | 3/16 | 0.187 | +0/-.0003 | 6 | 0.375 | 3/16 | Yes | $3.21 | ||
| NP14-10 | 13/64 | 0.2026 | +0/-.0003 | 10 | 0.375 | 3/16 | Yes | $4.05 | ||
| NP14-14 | 13/64 | 0.2026 | +0/-.0003 | 14 | 0.375 | 3/16 | Yes | $4.91 | ||
| NP15-10 | 7/32 | 0.2183 | +0/-.0003 | 10 | 0.406 | 3/16 | Yes | $4.11 | ||
| NP15-14 | 7/32 | 0.2183 | +0/-.0003 | 14 | 0.406 | 3/16 | Yes | $5.08 | ||
| NP15-25 | 7/32 | 0.2183 | +0/-.0003 | 25 | 0.406 | 3/16 | Yes | $8.96 | ||
| NP15-6 | 7/32 | 0.2183 | +0/-.0003 | 6 | 0.406 | 3/16 | Yes | $3.48 | ||
| NP16-10 | 15/64 | 0.2339 | +0/-.0003 | 10 | 0.406 | 3/16 | Yes | $4.52 | ||
| NP16-14 | 15/64 | 0.2339 | +0/-.0003 | 14 | 0.406 | 3/16 | Yes | $5.51 | ||
| NP17-10 | 1/4 | 0.2495 | +0/-.0003 | 10 | 0.437 | 3/16 | Yes | $4.57 | ||
| NP17-14 | 1/4 | 0.2495 | +0/-.0003 | 14 | 0.437 | 3/16 | Yes | $5.51 | ||
| NP17-18 | 1/4 | 0.2495 | +0/-.0003 | 18 | 0.437 | 3/16 | Yes | $7.06 | ||
| NP17-25 | 1/4 | 0.2495 | +0/-.0003 | 25 | 0.437 | 3/16 | Yes | $9.89 | ||
| NP17-36 | 1/4 | 0.2495 | +0/-.0003 | 36 | 0.437 | 3/16 | Yes | $35.37 | ||
| NP17-39 | 1/4 | 0.2495 | +0/-.0003 | 39 | 0.437 | 3/16 | Yes | $64.08 | ||
| NP17-6 | 1/4 | 0.2495 | +0/-.0003 | 6 | 0.437 | 3/16 | Yes | $3.69 | ||
| NP18-10 | 17/64 | 0.2651 | +0/-.0003 | 10 | 0.437 | 1/4 | Yes | $5.08 | ||
| NP18-14 | 17/64 | 0.2651 | +0/-.0003 | 14 | 0.437 | 1/4 | Yes | $6.08 | ||
| NP18-25 | 17/64 | 0.2651 | +0/-.0003 | 25 | 0.437 | 1/4 | Yes | $10.28 | ||
| NP19-10 | 9/32 | 0.2807 | +0/-.0003 | 10 | 0.437 | 1/4 | Yes | $5.24 | ||
| NP19-14 | 9/32 | 0.2807 | +0/-.0003 | 14 | 0.437 | 1/4 | Yes | $6.31 | ||
| NP19-18 | 9/32 | 0.2807 | +0/-.0003 | 18 | 0.437 | 1/4 | Yes | $8.16 | ||
| NP19-25 | 9/32 | 0.2807 | +0/-.0003 | 25 | 0.437 | 1/4 | Yes | $11.04 | ||
| NP19-6 | 9/32 | 0.2807 | +0/-.0003 | 6 | 0.437 | 1/4 | Yes | $4.14 | ||
| NP20-10 | 19/64 | 0.2964 | +0/-.0003 | 10 | 0.5 | 1/4 | Yes | $5.64 | ||
| NP20-14 | 19/64 | 0.2964 | +0/-.0003 | 14 | 0.5 | 1/4 | Yes | $7.06 | ||
| NP21-10 | 5/16 | 0.312 | +0/-.0003 | 10 | 0.5 | 1/4 | Yes | $5.78 | ||
| NP21-14 | 5/16 | 0.312 | +0/-.0003 | 14 | 0.5 | 1/4 | Yes | $7.09 | ||
| NP21-18 | 5/16 | 0.312 | +0/-.0003 | 18 | 0.5 | 1/4 | Yes | $8.91 | ||
| NP21-25 | 5/16 | 0.312 | +0/-.0003 | 25 | 0.5 | 1/4 | Yes | $12.12 | ||
| NP21-36 | 5/16 | 0.312 | +0/-.0003 | 36 | 0.5 | 1/4 | Yes | $38.92 | ||
| NP21-39 | 5/16 | 0.312 | +0/-.0003 | 39 | 0.5 | 1/4 | Yes | $63.80 | ||
| NP21-6 | 5/16 | 0.312 | +0/-.0003 | 6 | 0.5 | 1/4 | Yes | $4.59 | ||
| NP22-10 | 21/64 | 0.3276 | +0/-.0003 | 10 | 0.562 | 1/4 | Yes | $6.27 | ||
| NP22-14 | 21/64 | 0.3276 | +0/-.0003 | 14 | 0.562 | 1/4 | Yes | $7.92 | ||
| NP22-25 | 21/64 | 0.3276 | +0/-.0003 | 25 | 0.562 | 1/4 | Yes | $12.94 | ||
| NP23-10 | 11/32 | 0.3433 | +0/-.0003 | 10 | 0.562 | 1/4 | Yes | $6.52 | ||
| NP23-14 | 11/32 | 0.3433 | +0/-.0003 | 14 | 0.562 | 1/4 | Yes | $8.24 | ||
| NP23-25 | 11/32 | 0.3433 | +0/-.0003 | 25 | 0.562 | 1/4 | Yes | $13.14 | ||
| NP23-6 | 11/32 | 0.3433 | +0/-.0003 | 6 | 0.562 | 1/4 | Yes | $5.14 | ||
| NP24-10 | 23/64 | 0.3589 | +0/-.0003 | 10 | 0.625 | 1/4 | Yes | $7.09 | ||
| NP24-14 | 23/64 | 0.3589 | +0/-.0003 | 14 | 0.625 | 1/4 | Yes | $8.84 | ||
| NP24-18 | 23/64 | 0.3589 | +0/-.0003 | 18 | 0.625 | 1/4 | Yes | $9.83 | ||
| NP25-10 | 3/8 | 0.3745 | +0/-.0003 | 10 | 0.625 | 1/4 | Yes | $7.29 | ||
| NP25-14 | 3/8 | 0.3745 | +0/-.0003 | 14 | 0.625 | 1/4 | Yes | $8.91 | ||
| NP25-18 | 3/8 | 0.3745 | +0/-.0003 | 18 | 0.625 | 1/4 | Yes | $11.55 | ||
| NP25-25 | 3/8 | 0.3745 | +0/-.0003 | 25 | 0.625 | 1/4 | Yes | $16.18 | ||
| NP25-36 | 3/8 | 0.3745 | +0/-.0003 | 36 | 0.625 | 1/4 | Yes | $42.47 | ||
| NP25-39 | 3/8 | 0.3745 | +0/-.0003 | 39 | 0.625 | 1/4 | Yes | $67.85 | ||
| NP25-6 | 3/8 | 0.3745 | +0/-.0003 | 6 | 0.625 | 1/4 | Yes | $5.44 | ||
| NP26-10 | 25/64 | 0.3901 | +0/-.0003 | 10 | 0.578 | 1/4 | Yes | $9.03 | ||
| NP27-10 | 13/32 | 0.4057 | +0/-.0003 | 10 | 0.687 | 1/4 | Yes | $8.04 | ||
| NP27-14 | 13/32 | 0.4057 | +0/-.0003 | 14 | 0.687 | 1/4 | Yes | $10.21 | ||
| NP27-18 | 13/32 | 0.4057 | +0/-.0003 | 18 | 0.687 | 1/4 | Yes | $13.24 | ||
| NP27-25 | 13/32 | 0.4057 | +0/-.0003 | 25 | 0.687 | 1/4 | Yes | $18.91 | ||
| NP27-6 | 13/32 | 0.4057 | +0/-.0003 | 6 | 0.687 | 1/4 | Yes | $6.03 | ||
| NP29-10 | 7/16 | 0.437 | +0/-.0003 | 10 | 0.687 | 1/4 | Yes | $8.84 | ||
| NP29-14 | 7/16 | 0.437 | +0/-.0003 | 14 | 0.687 | 1/4 | Yes | $11.30 | ||
| NP29-18 | 7/16 | 0.437 | +0/-.0003 | 18 | 0.687 | 1/4 | Yes | $14.68 | ||
| NP29-25 | 7/16 | 0.437 | +0/-.0003 | 25 | 0.687 | 1/4 | Yes | $21.04 | ||
| NP29-36 | 7/16 | 0.437 | +0/-.0003 | 36 | 0.687 | 1/4 | Yes | $47.29 | ||
| NP29-6 | 7/16 | 0.437 | +0/-.0003 | 6 | 0.687 | 1/4 | Yes | $6.54 | ||
| NP30-10 | 29/64 | 0.4526 | +0/-.0003 | 10 | 0.703 | 1/4 | Yes | $10.75 | ||
| NP31-10 | 15/32 | 0.4683 | +0/-.0003 | 10 | 0.75 | 1/4 | Yes | $9.69 | ||
| NP31-18 | 15/32 | 0.4683 | +0/-.0003 | 18 | 0.75 | 1/4 | Yes | $16.30 | ||
| NP31-25 | 15/32 | 0.4683 | +0/-.0003 | 25 | 0.75 | 1/4 | Yes | $23.74 | ||
| NP31-6 | 15/32 | 0.4683 | +0/-.0003 | 6 | 0.75 | 1/4 | Yes | $7.81 | ||
| NP32-10 | 31/64 | 0.4839 | +0/-.0003 | 10 | 0.75 | 1/4 | Yes | $10.24 | ||
| NP33-10 | 1/2 | 0.4995 | +0/-.0003 | 10 | 0.75 | 1/4 | Yes | $10.47 | ||
| NP33-14 | 1/2 | 0.4995 | +0/-.0003 | 14 | 0.75 | 1/4 | Yes | $13.54 | ||
| NP33-18 | 1/2 | 0.4995 | +0/-.0003 | 18 | 0.75 | 1/4 | Yes | $17.76 | ||
| NP33-25 | 1/2 | 0.4995 | +0/-.0003 | 25 | 0.75 | 1/4 | Yes | $26.25 | ||
| NP33-36 | 1/2 | 0.4995 | +0/-.0003 | 36 | 0.75 | 1/4 | Yes | $53.03 | ||
| NP33-39 | 1/2 | 0.4995 | +0/-.0003 | 39 | 0.75 | 1/4 | Yes | $72.97 | ||
| NP33-45 | 1/2 | 0.4995 | +0/-.0003 | 45 | 0.75 | 1/4 | Yes | $88.41 | ||
| NP33-6 | 1/2 | 0.4995 | +0/-.0003 | 6 | 0.75 | 1/4 | Yes | $7.77 | ||
| NP34-10 | 17/32 | 0.5307 | +0/-.0005 | 10 | 0.781 | 1/4 | Yes | $11.61 | ||
| NP34-14 | 17/32 | 0.5307 | +0/-.0005 | 14 | 0.781 | 1/4 | Yes | $15.32 | ||
| NP34-6 | 17/32 | 0.5307 | +0/-.0005 | 6 | 0.781 | 1/4 | Yes | $10.68 | ||
| NP35-10 | 9/16 | 0.562 | +0/-.0005 | 10 | 0.812 | 1/4 | Yes | $12.69 | ||
| NP35-14 | 9/16 | 0.562 | +0/-.0005 | 14 | 0.812 | 1/4 | Yes | $16.32 | ||
| NP35-18 | 9/16 | 0.562 | +0/-.0005 | 18 | 0.812 | 1/4 | Yes | $20.85 | ||
| NP35-25 | 9/16 | 0.562 | +0/-.0005 | 25 | 0.812 | 1/4 | Yes | $29.93 | ||
| NP35-6 | 9/16 | 0.562 | +0/-.0005 | 6 | 0.812 | 1/4 | Yes | $9.15 | ||
| NP3-6 | 1/32 | 0.0307 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $6.46 | ||
| NP37-10 | 5/8 | 0.6245 | +0/-.0005 | 10 | 0.875 | 1/4 | Yes | $14.82 | ||
| NP37-14 | 5/8 | 0.6245 | +0/-.0005 | 14 | 0.875 | 1/4 | Yes | $18.95 | ||
| NP37-18 | 5/8 | 0.6245 | +0/-.0005 | 18 | 0.875 | 1/4 | Yes | $24.11 | ||
| NP37-25 | 5/8 | 0.6245 | +0/-.0005 | 25 | 0.875 | 1/4 | Yes | $33.98 | ||
| NP37-36 | 5/8 | 0.6245 | +0/-.0005 | 36 | 0.875 | 1/4 | Yes | $59.38 | ||
| NP37-39 | 5/8 | 0.6245 | +0/-.0005 | 39 | 0.875 | 1/4 | Yes | $92.18 | ||
| NP37-6 | 5/8 | 0.6245 | +0/-.0005 | 6 | 0.875 | 1/4 | Yes | $10.76 | ||
| NP39-10 | 11/16 | 0.687 | +0/-.0005 | 10 | 0.937 | 1/4 | Yes | $17.52 | ||
| NP39-14 | 11/16 | 0.687 | +0/-.0005 | 14 | 0.937 | 1/4 | Yes | $25.55 | ||
| NP39-18 | 11/16 | 0.687 | +0/-.0005 | 18 | 0.937 | 1/4 | Yes | $28.16 | ||
| NP39-25 | 11/16 | 0.687 | +0/-.0005 | 25 | 0.937 | 1/4 | Yes | $39.74 | ||
| NP39-6 | 11/16 | 0.687 | +0/-.0005 | 6 | 0.937 | 1/4 | Yes | $13.21 | ||
| NP41-10 | 3/4 | 0.7495 | +0/-.0005 | 10 | 1 | 1/4 | Yes | $20.07 | ||
| NP41-14 | 3/4 | 0.7495 | +0/-.0005 | 14 | 1 | 1/4 | Yes | $25.91 | ||
| NP41-18 | 3/4 | 0.7495 | +0/-.0005 | 18 | 1 | 1/4 | Yes | $32.94 | ||
| NP41-25 | 3/4 | 0.7495 | +0/-.0005 | 25 | 1 | 1/4 | Yes | $45.03 | ||
| NP41-36 | 3/4 | 0.7495 | +0/-.0005 | 36 | 1 | 1/4 | Yes | $73.62 | ||
| NP41-39 | 3/4 | 0.7495 | +0/-.0005 | 39 | 1 | 1/4 | Yes | $114.65 | ||
| NP41-6 | 3/4 | 0.7495 | +0/-.0005 | 6 | 1 | 1/4 | Yes | $14.94 | ||
| NP45-10 | 7/8 | 0.8745 | +0/-.0005 | 10 | 1.125 | 1/4 | Yes | $27.78 | ||
| NP45-14 | 7/8 | 0.8745 | +0/-.0005 | 14 | 1.125 | 1/4 | Yes | $31.70 | ||
| NP45-18 | 7/8 | 0.8745 | +0/-.0005 | 18 | 1.125 | 1/4 | Yes | $35.15 | ||
| NP45-25 | 7/8 | 0.8745 | +0/-.0005 | 25 | 1.125 | 1/4 | Yes | $57.87 | ||
| NP45-6 | 7/8 | 0.8745 | +0/-.0005 | 6 | 1.125 | 1/4 | Yes | $19.84 | ||
| NP47-10 | 1 | 0.9995 | +0/-.0005 | 10 | 1.25 | 1/4 | Yes | $33.25 | ||
| NP47-14 | 1 | 0.9995 | +0/-.0005 | 14 | 1.25 | 1/4 | Yes | $42.02 | ||
| NP47-18 | 1 | 0.9995 | +0/-.0005 | 18 | 1.25 | 1/4 | Yes | $51.33 | ||
| NP47-25 | 1 | 0.9995 | +0/-.0005 | 25 | 1.25 | 1/4 | Yes | $67.34 | ||
| NP47-36 | 1 | 0.9995 | +0/-.0005 | 36 | 1.25 | 1/4 | Yes | $129.84 | ||
| NP47-39 | 1 | 0.9995 | +0/-.0005 | 39 | 1.25 | 1/4 | Yes | $171.63 | ||
| NP47-6 | 1 | 0.9995 | +0/-.0005 | 6 | 1.25 | 1/4 | Yes | $23.92 | ||
| NP5-6 | 1/16 | 0.062 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $6.04 | ||
| NP6-10 | 5/64 | 0.0776 | +0/-.0003 | 10 | 0.25 | 1/8 | Yes | $7.03 | ||
| NP6-6 | 5/64 | 0.0776 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $6.04 | ||
| NP7-10 | 3/32 | 0.0933 | +0/-.0003 | 10 | 0.25 | 1/8 | Yes | $6.04 | ||
| NP7-14 | 3/32 | 0.0933 | +0/-.0003 | 14 | 0.25 | 1/8 | Yes | $7.86 | ||
| NP7-6 | 3/32 | 0.0933 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $5.47 | ||
| NP8-10 | 7/64 | 0.1089 | +0/-.0003 | 10 | 0.25 | 1/8 | Yes | $6.39 | ||
| NP8-6 | 7/64 | 0.1089 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $5.47 | ||
| NP9-10 | 1/8 | 0.1245 | +0/-.0003 | 10 | 0.25 | 1/8 | Yes | $3.34 | ||
| NP9-14 | 1/8 | 0.1245 | +0/-.0003 | 14 | 0.25 | 1/8 | Yes | $3.83 | ||
| NP9-18 | 1/8 | 0.1245 | +0/-.0003 | 18 | 0.25 | 1/8 | Yes | $4.57 | ||
| NP9-25 | 1/8 | 0.1245 | +0/-.0003 | 25 | 0.25 | 1/8 | Yes | $7.75 | ||
| NP9-6 | 1/8 | 0.1245 | +0/-.0003 | 6 | 0.25 | 1/8 | Yes | $2.98 |
