- Operating Pressure: 150 psi max.
- Operating Temperature: 0 to 120°C (32 to 248°F)
- Analog Output for Flow (0.5-3.5V, 0-5V or 0-10V selectable)
- Analog Output for Temperature (0.5-4.1V, 0-5V or 0-10V selectable)
- Reynolds Number Display
- Turbulent Flow Display (FCI)
- Flow Rate Display in Gallons or Liters per Minute, +/- 1.5% Accuracy based on full scale
- Temperature Display in Degrees Fahrenheit or Celsius, +/- 0.5°C Accuracy
- BTU's per Minute Calculation with Optional Glycol % Input
- Flow Connection Sizes (NPT): 3/8", 1/2", 3/4", 1" and 1-1/2"

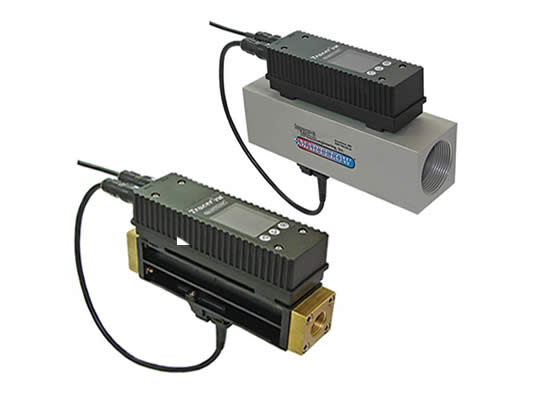

Smartflow® Tracer®VM Local & Remote Interface
PCS Company offers the Smartflow® Tracer®VM Flowmeter with both local and remote interfaces. These flowmeters measure liquid flow rate and temperature while at the same time provide a selectable analog voltage and programmable switch. The user interface whether remote or local displays Reynolds Number and calculates BTU's per minute. The vortex sensor is accurate and repeatable with no moving parts. The flow reading is directional indicated by the arrow on the body of the flowmeter. Utilize the Smartflow® Scientific Cooling Calculator.
| Item Number | Body Material | Body Size ( NPT ) | Range (GPM) | Range (LPM) | Interface | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| VM12-AL-200H-L | Aluminum | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Local | $1,161.00 | ||
| VM12-AL-200H-R | Aluminum | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Remote | $1,197.00 | ||
| VM12-SS-200H-L | Stainless Steel | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Local | $1,391.00 | ||
| VM12-SS-200H-R | Stainless Steel | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Remote | $1,428.00 | ||
| VM3-B-18H-L | Brass | 3/8 " | .3 to 4 | 1 to 18 | Local | $896.00 | ||
| VM3-B-18H-R | Brass | 3/8 " | .3 to 4 | 1 to 18 | Remote | $932.00 | ||
| VM3-B-40H-L | Brass | 3/8 " | .5 to 10.6 | 2 to 40 | Local | $896.00 | ||
| VM3-B-40H-R | Brass | 3/8 " | .5 to 10.6 | 2 to 40 | Remote | $932.00 | ||
| VM3-N-18H-L | Nylon | 3/8 " | .3 to 4 | 1 to 18 | Local | $874.00 | ||
| VM3-N-18H-R | Nylon | 3/8 " | .3 to 4 | 1 to 18 | Remote | $910.00 | ||
| VM3-N-40H-L | Nylon | 3/8 " | .5 to 10.6 | 2 to 40 | Local | $874.00 | ||
| VM3-N-40H-R | Nylon | 3/8 " | .5 to 10.6 | 2 to 40 | Remote | $910.00 | ||
| VM4-B-18H-L | Brass | 1/2 " | .3 to 4 | 1 to 18 | Local | $896.00 | ||
| VM4-B-18H-R | Brass | 1/2 " | .3 to 4 | 1 to 18 | Remote | $932.00 | ||
| VM4-B-40H-L | Brass | 1/2 " | .5 to 10.6 | 2 to 40 | Local | $896.00 | ||
| VM4-B-40H-R | Brass | 1/2 " | .5 to 10.6 | 2 to 40 | Remote | $932.00 | ||
| VM4-N-18H-L | Nylon | 1/2 " | .3 to 4 | 1 to 18 | Local | $874.00 | ||
| VM4-N-18H-R | Nylon | 1/2 " | .3 to 4 | 1 to 18 | Remote | $910.00 | ||
| VM4-N-40H-L | Nylon | 1/2 " | .5 to 10.6 | 2 to 40 | Local | $874.00 | ||
| VM4-N-40H-R | Nylon | 1/2 " | .5 to 10.6 | 2 to 40 | Remote | $910.00 | ||
| VM6-AL-100H-L | Aluminum | 3/4 " | 1.3 to 26.4 | 5 to 100 | Local | $1,088.00 | ||
| VM6-AL-100H-R | Aluminum | 3/4 " | 1.3 to 26.4 | 5 to 100 | Remote | $1,126.00 | ||
| VM6-SS-100H-L | Stainless Steel | 3/4 " | 1.3 to 26.4 | 5 to 100 | Local | $1,161.00 | ||
| VM6-SS-100H-R | Stainless Steel | 3/4 " | 1.3 to 26.4 | 5 to 100 | Remote | $1,312.00 | ||
| VM8-AL-100H-L | Aluminum | 1 " | 1.3 to 26.4 | 5 to 100 | Local | $1,088.00 | ||
| VM8-AL-100H-R | Aluminum | 1 " | 1.3 to 26.4 | 5 to 100 | Remote | $1,126.00 | ||
| VM8-AL-200H-L | Aluminum | 1 " | 2.6 to 52.8 | 10 to 200 | Local | $1,138.00 | ||
| VM8-AL-200H-R | Aluminum | 1 " | 2.6 to 52.8 | 10 to 200 | Remote | $1,175.00 | ||
| VM8-SS-100H-L | Stainless Steel | 1 " | 1.3 to 26.4 | 5 to 100 | Local | $1,275.00 | ||
| VM8-SS-100H-R | Stainless Steel | 1 " | 1.3 to 26.4 | 5 to 100 | Remote | $1,312.00 | ||
| VM8-SS-200H-L | Stainless Steel | 1 " | 2.6 to 52.8 | 10 to 200 | Local | $1,336.00 | ||
| VM8-SS-200H-R | Stainless Steel | 1 " | 2.6 to 52.8 | 10 to 200 | Remote | $1,372.00 |
