- Low Profile Superior Mica Construction
- Flange or Clamp Lock-up
- Strain Relief for Ultimate Lead Protection
- 12" High Temperature Leads or HD Post Terminals

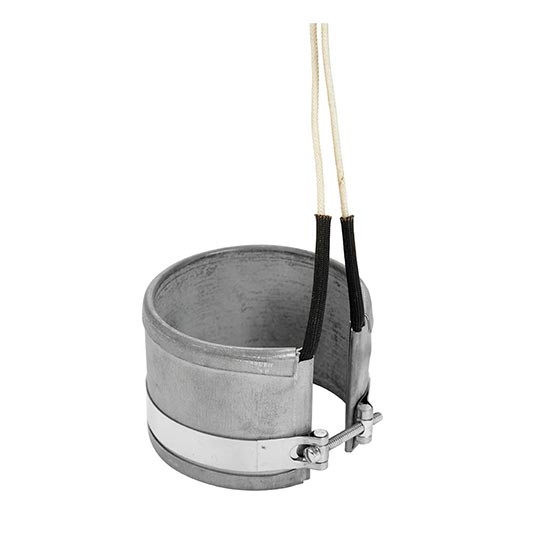

Mica Nozzle Heater Bands
PCS Company's Superior Constructed Mica Heater Bands are available from 7/8" ID to 6" ID . All Nozzle bands range in size from 1", 1-1/2" & 1-3/4" ID to widths from 1" to 6" wide. Specials are made promptly to order.
| Item Number | Diameter | Width | Wattage | Voltage | Leads | Post Terminals | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HBS001 | 7/8 | 1 | 75 | 120 | 12 | No | $17.55 | ||
| HBS003 | 7/8 | 1-1/4 | 90 | 120 | 12 | No | $14.00 | ||
| HBS004 | 7/8 | 1-1/4 | 90 | 240 | 12 | No | $14.00 | ||
| HBS005 | 7/8 | 1-1/2 | 100 | 120 | 12 | No | $17.55 | ||
| HBS017 | 1 | 4 | 400 | 120 | 12 | No | $17.00 | ||
| HBS019 | 1 | 5 | 500 | 120 | 12 | No | $18.00 | ||
| HBS023 | 1-1/4 | 1-1/2 | 20 | 120 | 12 | No | $15.00 | ||
| HBS024 | 1-1/4 | 1-1/2 | 200 | 240 | 12 | No | $15.00 | ||
| HBS026 | 1-1/4 | 2 | 250 | 240 | 12 | No | $15.00 | ||
| HBS027 | 1-1/4 | 3 | 400 | 120 | 12 | No | $16.00 | ||
| HBS030 | 1-3/8 | 1 | 150 | 240 | 12 | No | $23.65 | ||
| HBS034 | 1-3/8 | 2 | 300 | 240 | 12 | No | $15.00 | ||
| HBS054 | 1-3/4 | 1 | 200 | 240 | 12 | No | $15.00 | ||
| HBS055 | 1-3/4 | 1-1/2 | 300 | 120 | 12 | No | $15.00 | ||
| HBS056 | 1-3/4 | 1-1/2 | 300 | 240 | 12 | No | $24.67 | ||
| HBS058 | 1-3/4 | 2 | 350 | 240 | 12 | No | $21.22 | ||
| HBS060 | 1-3/4 | 3 | 500 | 240 | 12 | No | $17.00 | ||
| HBS061 | 1-3/4 | 4 | 700 | 120 | 12 | No | $21.00 | ||
| HBS062 | 1-3/4 | 4 | 700 | 240 | 12 | No | $36.16 | ||
| HBS063 | 1-3/4 | 5 | 900 | 120 | 12 | No | $19.00 | ||
| HBS064 | 1-3/4 | 5 | 900 | 240 | 12 | No | $33.37 | ||
| HBS065 | 1-3/4 | 6 | 1000 | 120 | 12 | No | $20.50 | ||
| HBS066 | 1-3/4 | 6 | 1000 | 240 | 12 | No | $19.00 | ||
| HBS067 | 2 | 1 | 200 | 120 | 12 | No | $17.09 | ||
| HBS068 | 2 | 1 | 200 | 240 | 12 | No | $28.19 | ||
| HBS070 | 2 | 1-1/2 | 300 | 240 | 12 | No | $18.50 | ||
| HBS072 | 2 | 2 | 400 | 240 | 12 | No | $15.20 | ||
| HBS075 | 2 | 3 | 600 | 120 | 12 | No | $17.00 | ||
| HBS078 | 2 | 4 | 800 | 240 | 12 | No | $17.00 | ||
| HBS083 | 2-1/8 | 1 | 200 | 120 | 12 | No | $21.00 | ||
| HBS084 | 2-1/8 | 1 | 200 | 240 | 12 | No | $21.00 | ||
| HBS086 | 2-1/8 | 1-1/2 | 300 | 240 | 12 | No | $22.00 | ||
| HBS091 | 2-1/4 | 1 | 225 | 120 | 12 | No | $18.73 | ||
| HBS098 | 2-1/4 | 2-1/2 | 600 | 240 | 12 | No | $19.00 | ||
| HBS104 | 2-3/8 | 1-1/2 | 400 | 240 | 12 | No | $17.00 | ||
| HBS105 | 2-1/2 | 1 | 300 | 120 | 12 | No | $15.00 | ||
| HBS106 | 2-1/2 | 1 | 300 | 240 | 12 | No | $15.20 | ||
| HBS109 | 2-1/2 | 2 | 500 | 120 | 12 | No | $17.00 | ||
| HBS111 | 2-1/2 | 3 | 700 | 120 | 12 | No | $18.00 | ||
| HBS113 | 2-3/4 | 1-1/2 | 400 | 120 | 12 | No | $25.40 | ||
| HBS114 | 2-3/4 | 1-1/2 | 400 | 240 | 12 | No | $17.00 | ||
| HBS116-PT | 3 | 1 | 300 | 240 | N/A | Yes | $21.87 | ||
| HBS117 | 3 | 1-1/2 | 400 | 120 | 12 | No | $17.50 | ||
| HBS118 | 3 | 1-1/2 | 400 | 240 | 12 | No | $32.11 | ||
| HBS120 | 3 | 2 | 600 | 240 | 12 | No | $18.00 | ||
| HBS122 | 3 | 3 | 900 | 240 | 12 | No | $21.68 | ||
| HBS158 | 2-3/4 | 1-1/4 | 400 | 240 | 12 | No | $30.00 | ||
| HBS159 | 170 | 40 | 800 | 480 | 12 | No | $75.00 | ||
| HBS169-PT | 4 | 1-1/2 | 625 | 240 | N/A | Yes | $46.54 | ||
| HBS179-PT | 5-1/4 | 1-1/2 | 800 | 240 | N/A | Yes | $62.72 | ||
| HBS201 | 4 | 1 | 425 | 240 | 12 | No | $29.23 | ||
| HBS201-PT | 4 | 1 | 625 | 240 | N/A | Yes | $43.00 | ||
| HBS207 | 5-1/2 | 1-1/2 | 1000 | 240 | N/A | Yes | $49.42 | ||
| HBS212 | 4-1/2 | 2 | 750 | 240 | 12 | No | $40.00 | ||
| HBS215 | 3-1/4 | 1 | 350 | 129 | 12 | No | $35.75 | ||
| HBS223-PT2 | 5-1/4 | 1-1/2 | 600 | 240 | N/A | Yes | $53.66 | ||
| HBS224-PT2 | 4 | 1-1/2 | 450 | 240 | N/A | Yes | $67.00 | ||
| HBS230 | 3 | 1 | 400 | 240 | N/A | Yes | $40.37 | ||
| HBS236 | 3-1/4 | 2 | 600 | 120 | 12 | No | $51.06 | ||
| HBS323-PT | 6-3/4 | 1-1/2 | 820 | 240 | N/A | Yes | $56.00 | ||
| HBS324-PT | 7-1/2 | 1-1/2 | 500 | 240 | N/A | Yes | $80.98 | ||
| HBS341 | 3-9/16 | 9-7/8 | 3000 | 240 | N/A | Yes | $83.16 |
